Removal Procedure

  1. Raise and suitably support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  2. Remove the muffler nuts from the intermediate pipe.

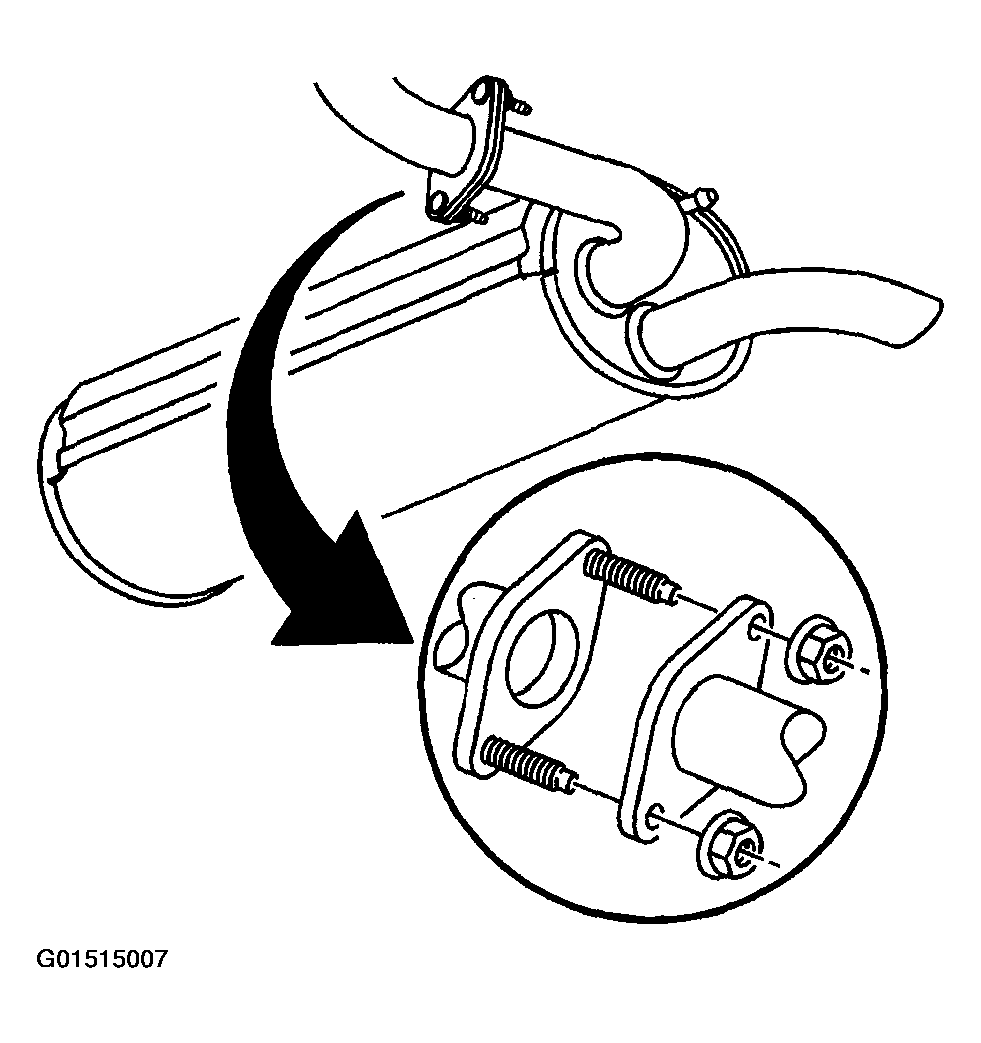

    Fig 1: Removing Muffler Nuts From Intermediate Pipe
    G01515007Courtesy of GENERAL MOTORS CORP.
  3. Remove the muffler from the hangers.

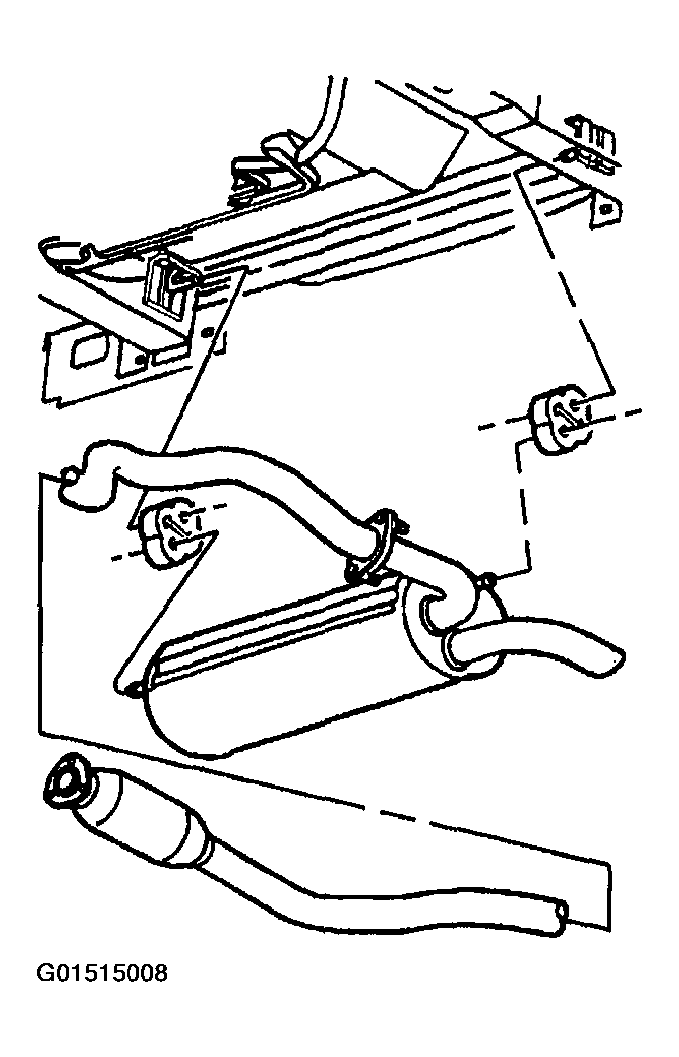

    Fig 2: Removing Muffler From Hangers
    G01515008Courtesy of GENERAL MOTORS CORP.
