Removal Procedure

  1. Raise and suitably support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  2. Remove intermediate pipe to muffler nuts.

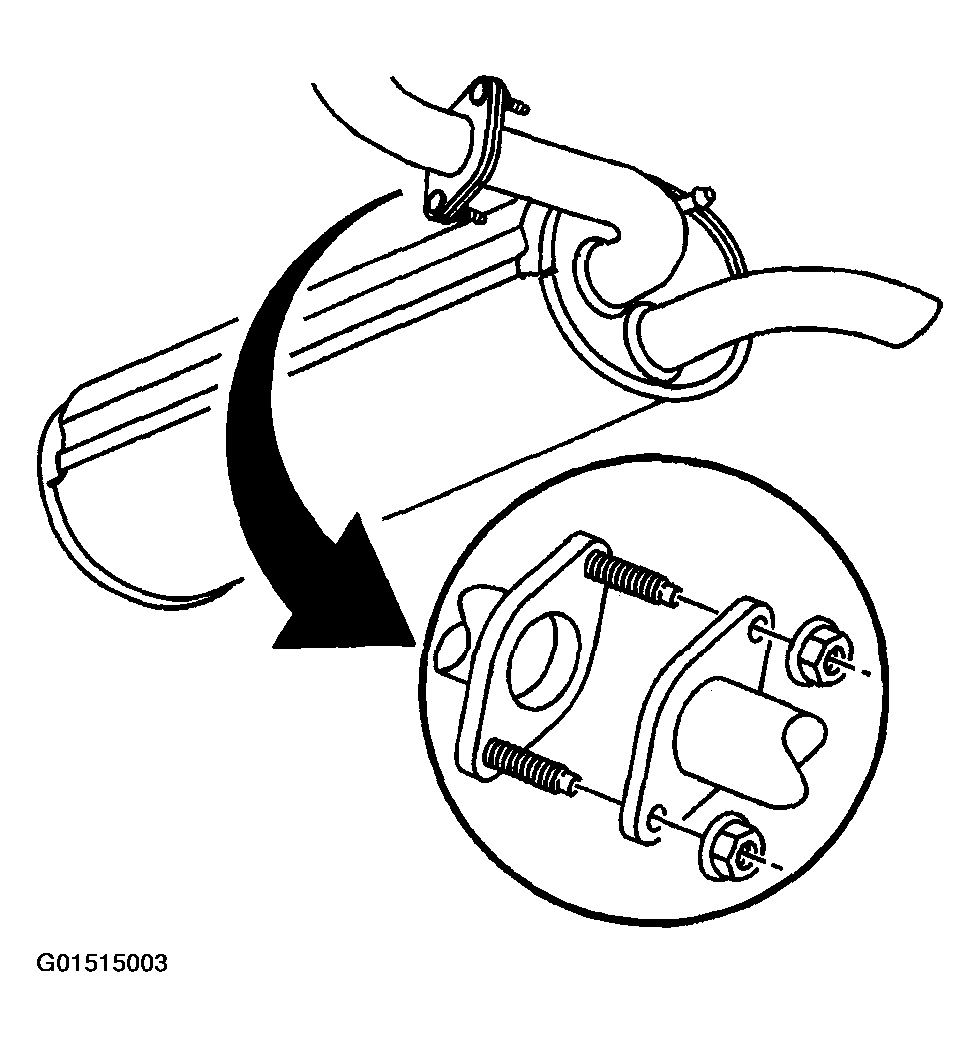

    Fig 1: Removing Intermediate Pipe To Muffler Nuts
    G01515003Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the exhaust muffler rear hanger insulators from the exhaust muffler.
  4. Remove the exhaust muffler.

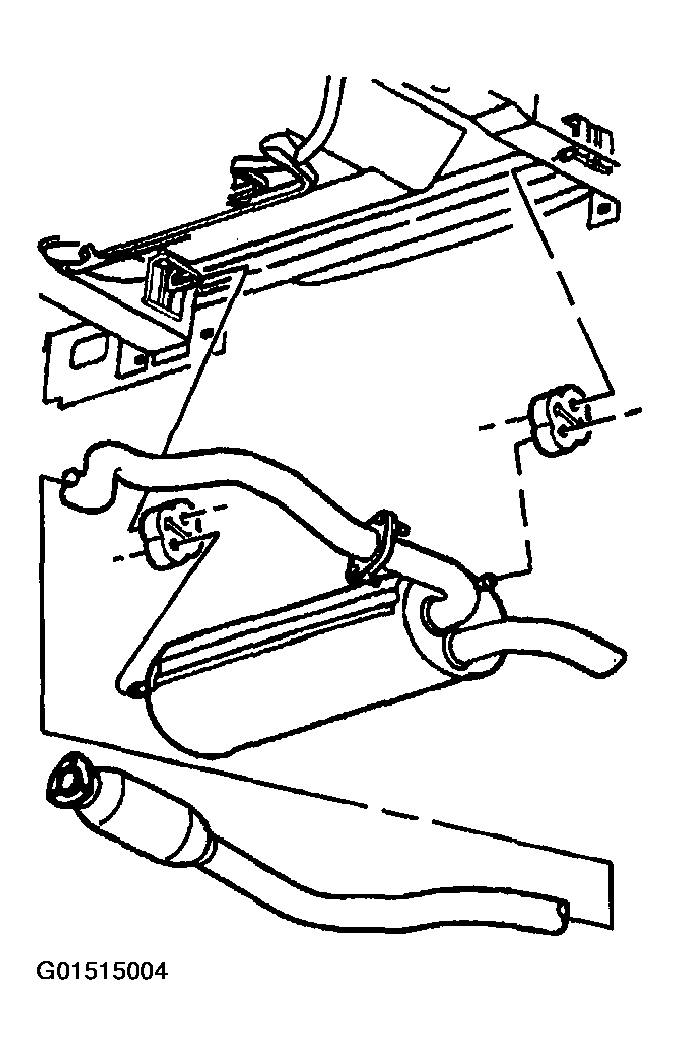

    Fig 2: Disconnecting Exhaust Muffler Rear Hanger Insulators From Exhaust Muffler
    G01515004Courtesy of GENERAL MOTORS CORP.
