Installation Procedure

  1. Install the lower radiator mounting panel to the vehicle.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the lower radiator mounting panel bolts.

    Tighten

    Tighten the lower radiator mounting panel bolts to 10 N.m (89 lb in).

  3. Install the transmission cooler lines to the retaining clips.
  4. Install the close out panel.
  5. Lower the vehicle.
  6. Remove radiator support.

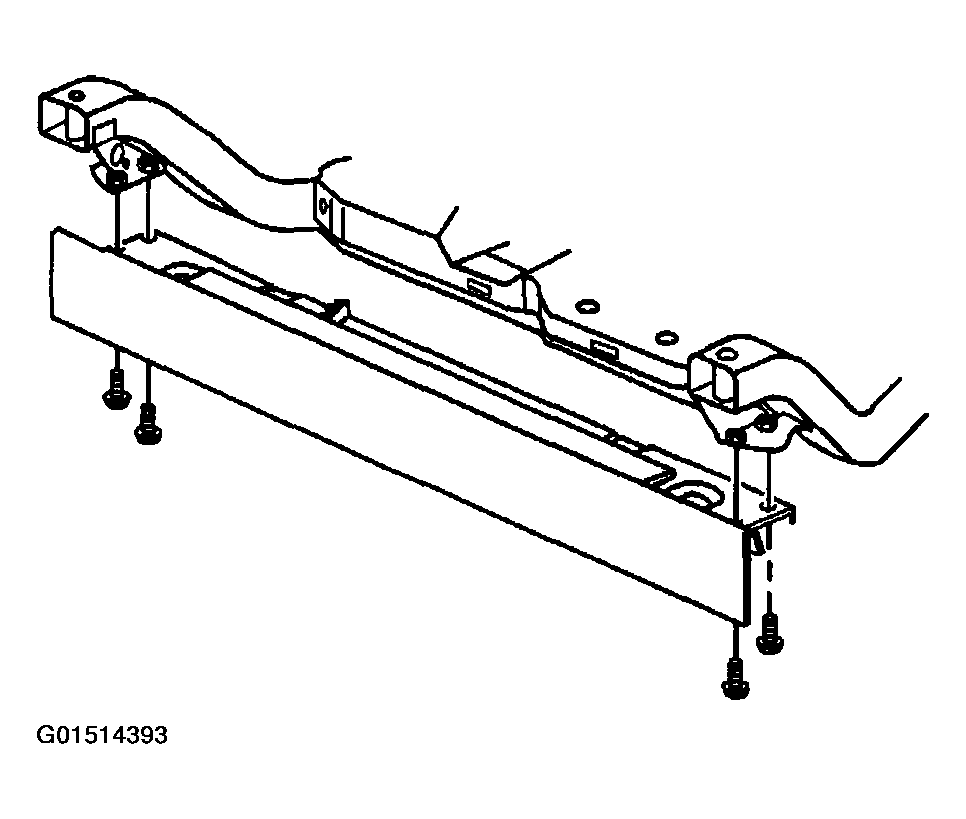

    Fig 1: Installing Lower Radiator Mounting Panel To Vehicle
    G01514393Courtesy of GENERAL MOTORS CORP.
