Installation Procedure

  1. Return the Drain Cock to the radiator body.
  2. Use a 1/4 inch square drive or a 3/16 inch hex drive in order to close the radiator drain valve.
  3. Refill the cooling system. Refer to DRAINING AND FILLING COOLING SYSTEM  .
  4. Lower the vehicle.

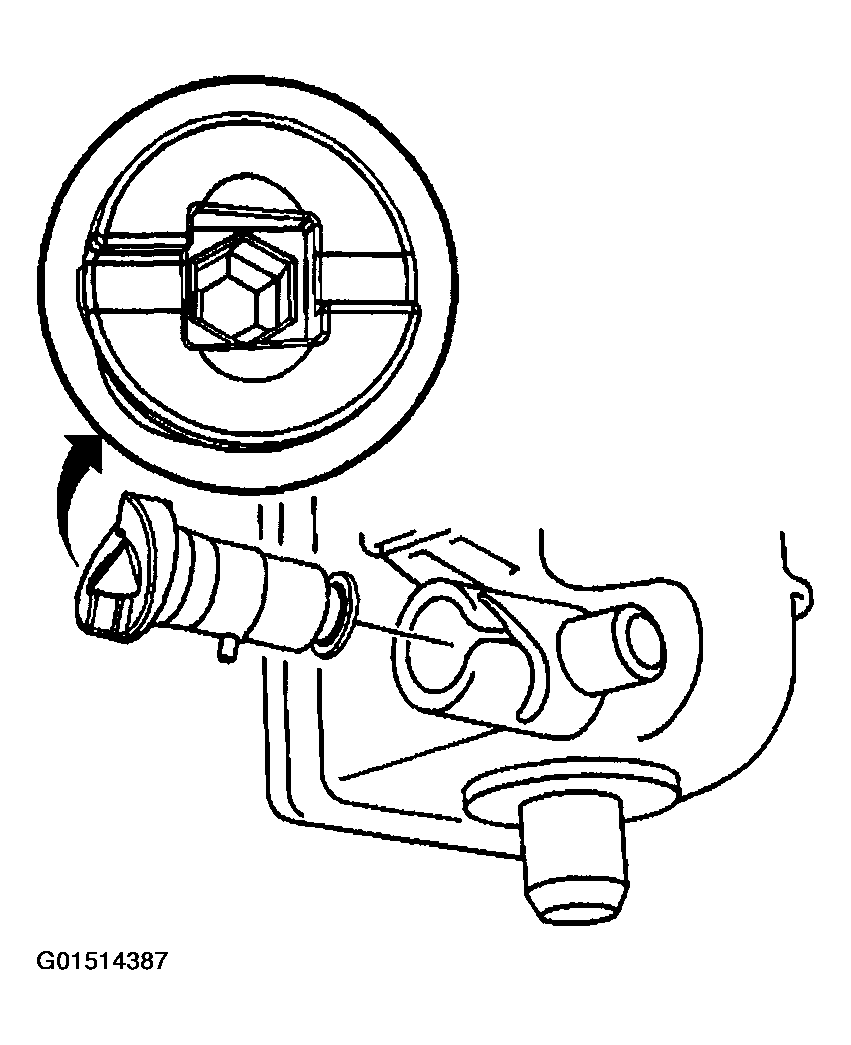

    Fig 1: Installing Drain Cock To Radiator Body
    G01514387Courtesy of GENERAL MOTORS CORP.
