Scan Tool Output Controls

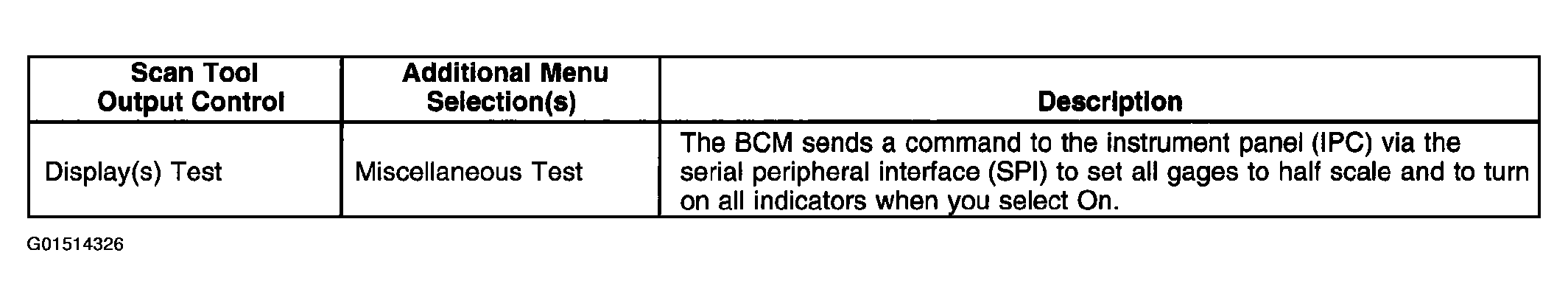

Fig 1: Scan Tool Output Controls Description Table (Display Test)
G01514326Courtesy of GENERAL MOTORS CORP.

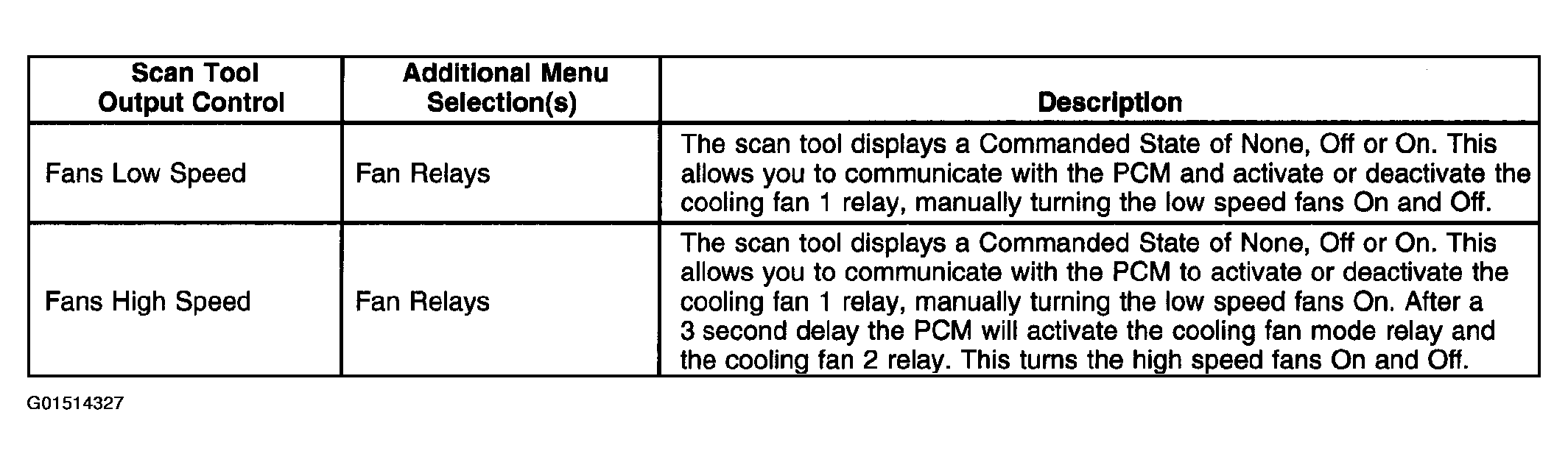

Fig 2: Scan Tool Output Controls Description Table (Fans Speed)
G01514327Courtesy of GENERAL MOTORS CORP.
