Cooling System Connector End Views

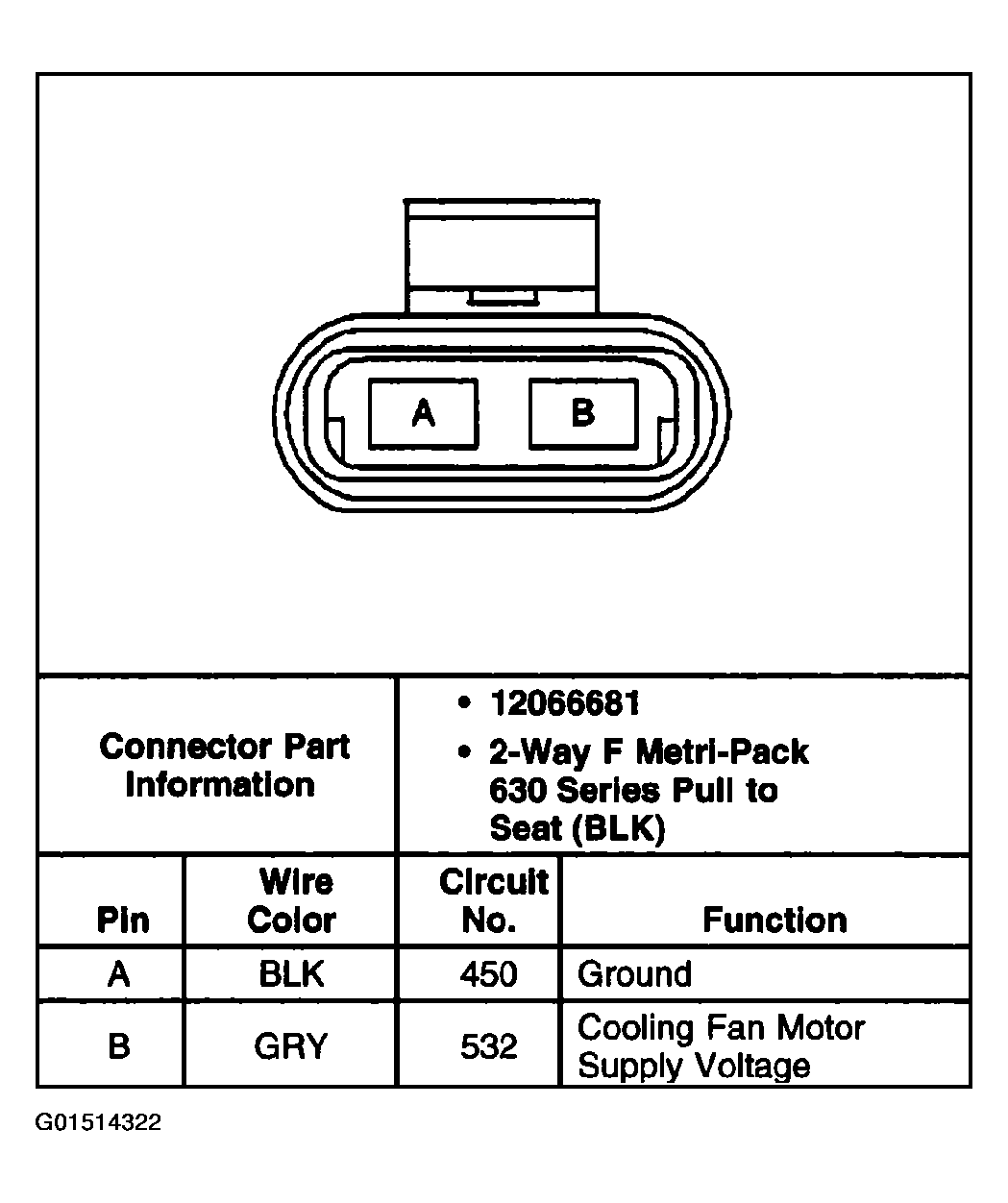

Fig 1: Cooling System Connector End Views - Cooling Fan (Right)
G01514322Courtesy of GENERAL MOTORS CORP.

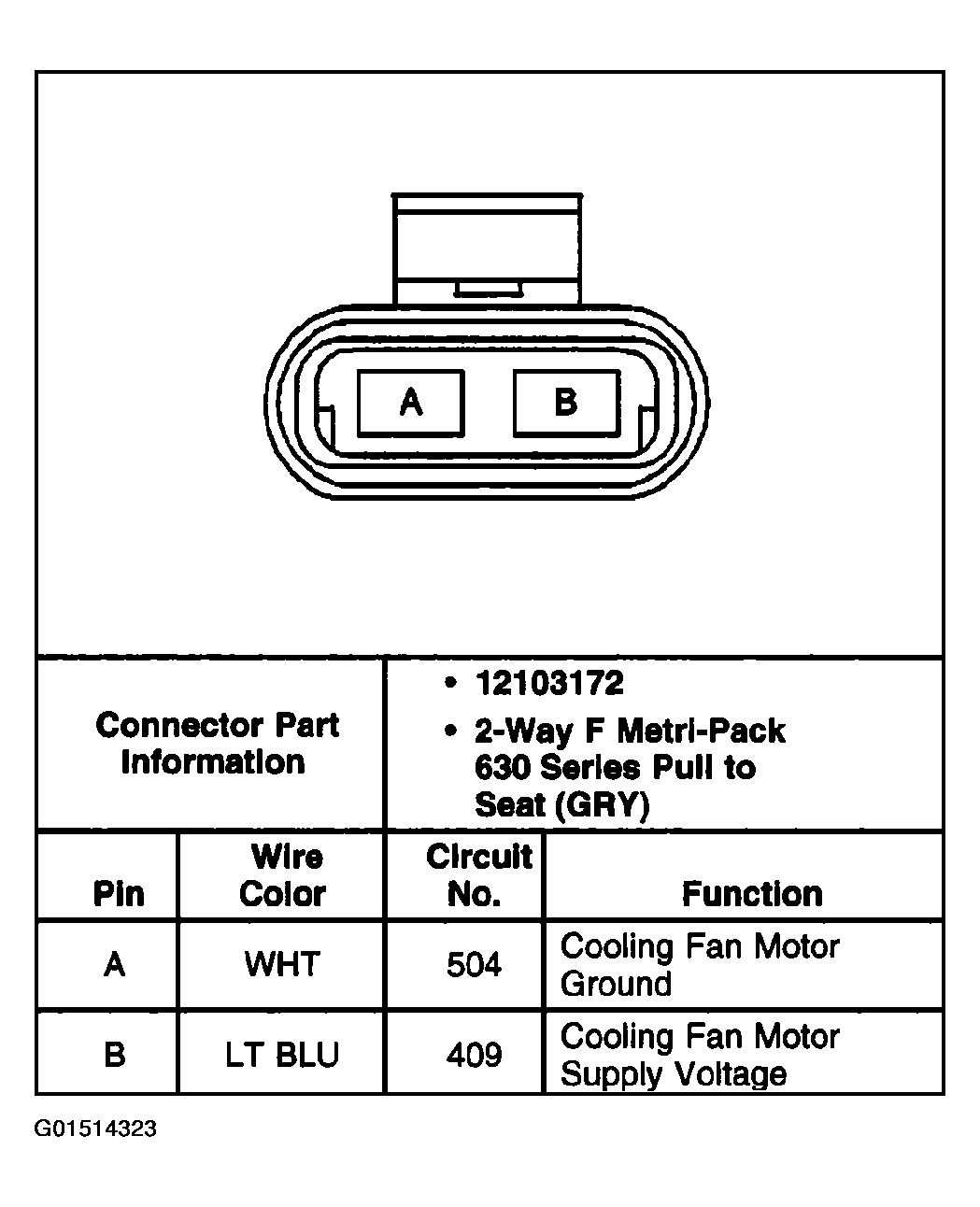

Fig 2: Cooling System Connector End Views - Cooling Fan (Left)
G01514323Courtesy of GENERAL MOTORS CORP.

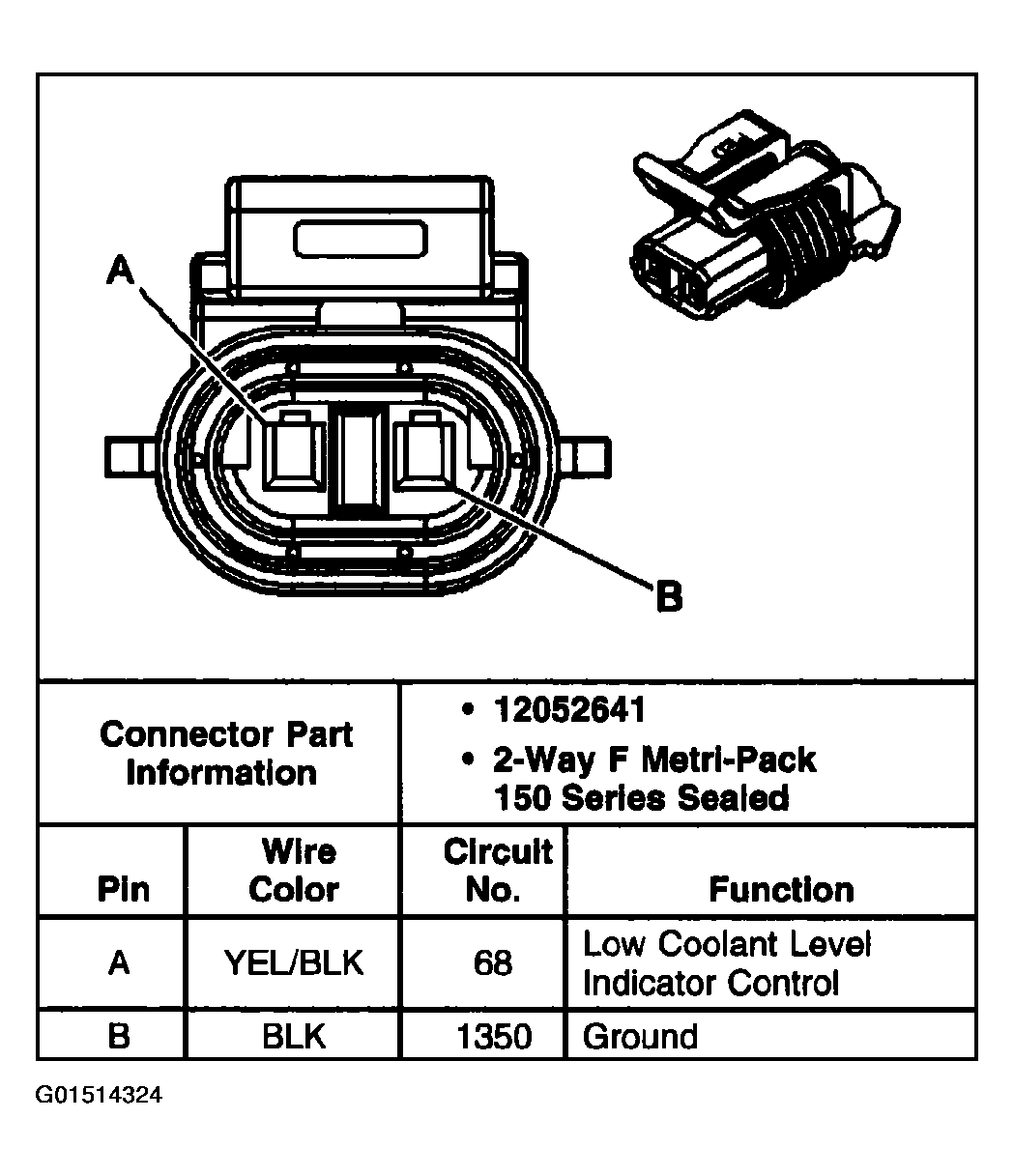

Fig 3: Cooling System Connector End Views - Coolant Level Switch
G01514324Courtesy of GENERAL MOTORS CORP.
