Cooling System Component Views

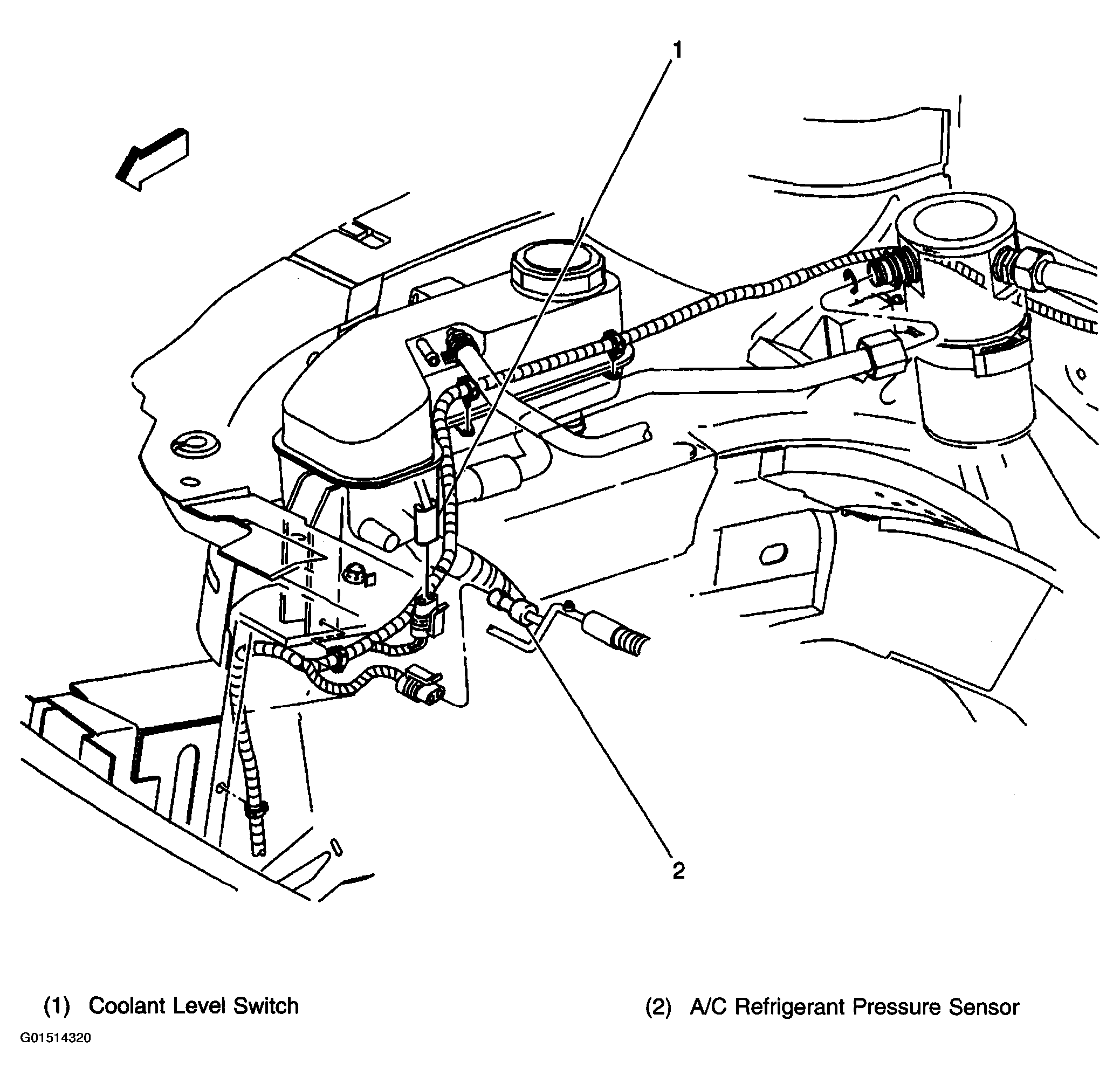

Fig 1: Identifying Coolant Level Switch And A/C Refrigerant Pressure Sensor
Courtesy of GENERAL MOTORS CORP.

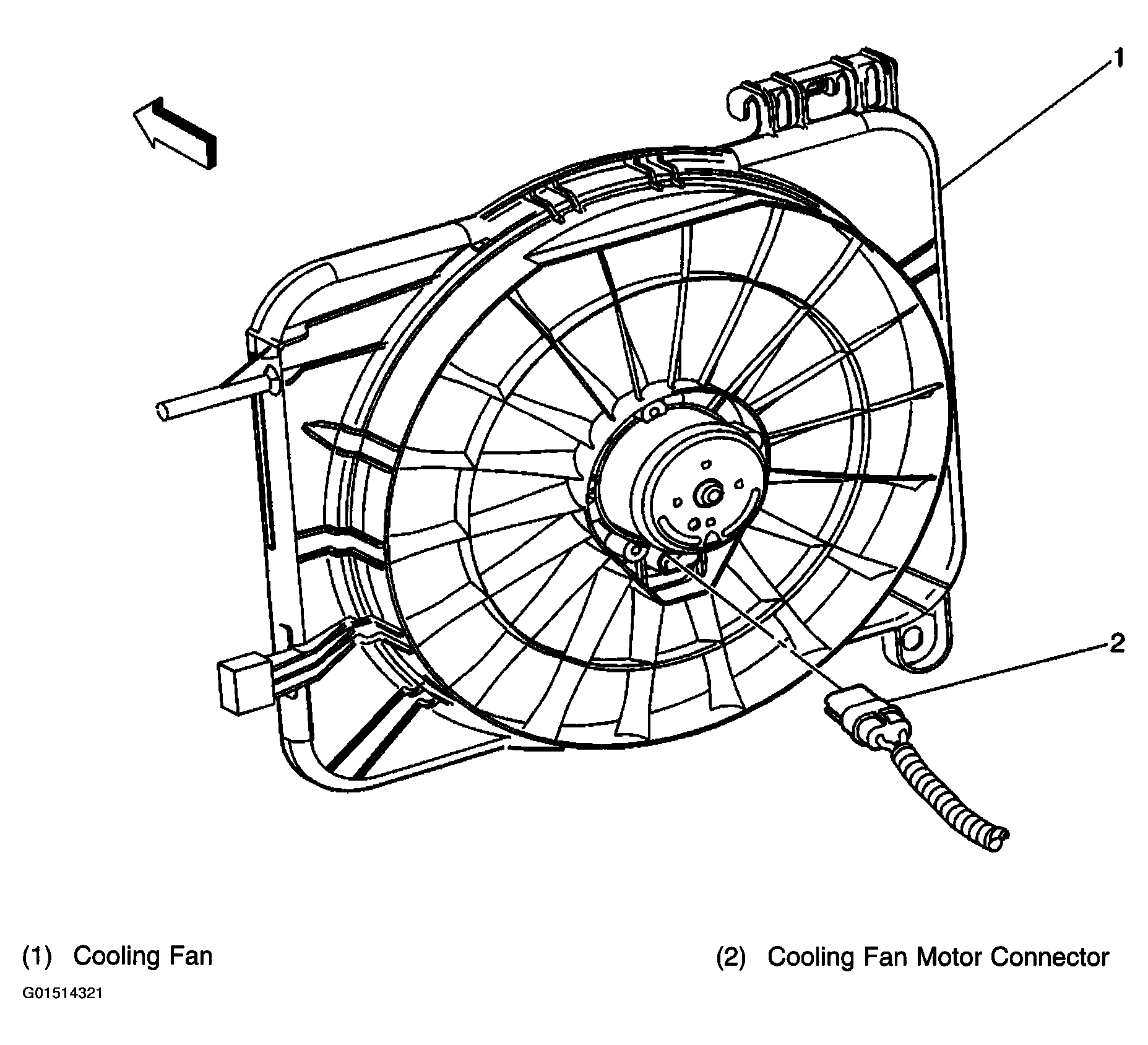

Fig 2: Identifying Cooling Fan
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
