Windshield Washer Fluid Pump Connector End View

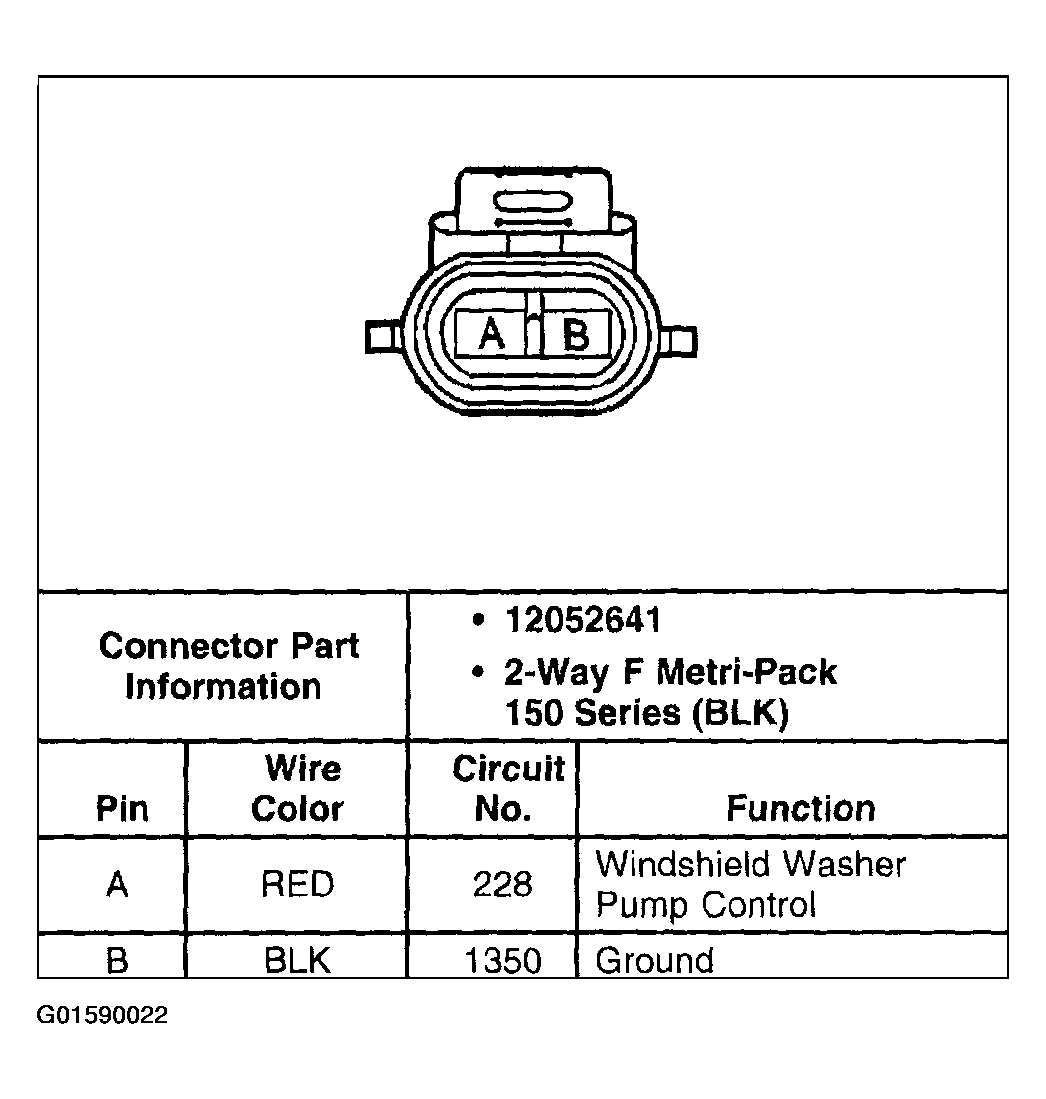

Fig 1: Windshield Washer Fluid Pump Connector End View

G01590022

Courtesy of GENERAL MOTORS CORP.
