Dome Lamp Connector End View
Dome Lamp Connector End View

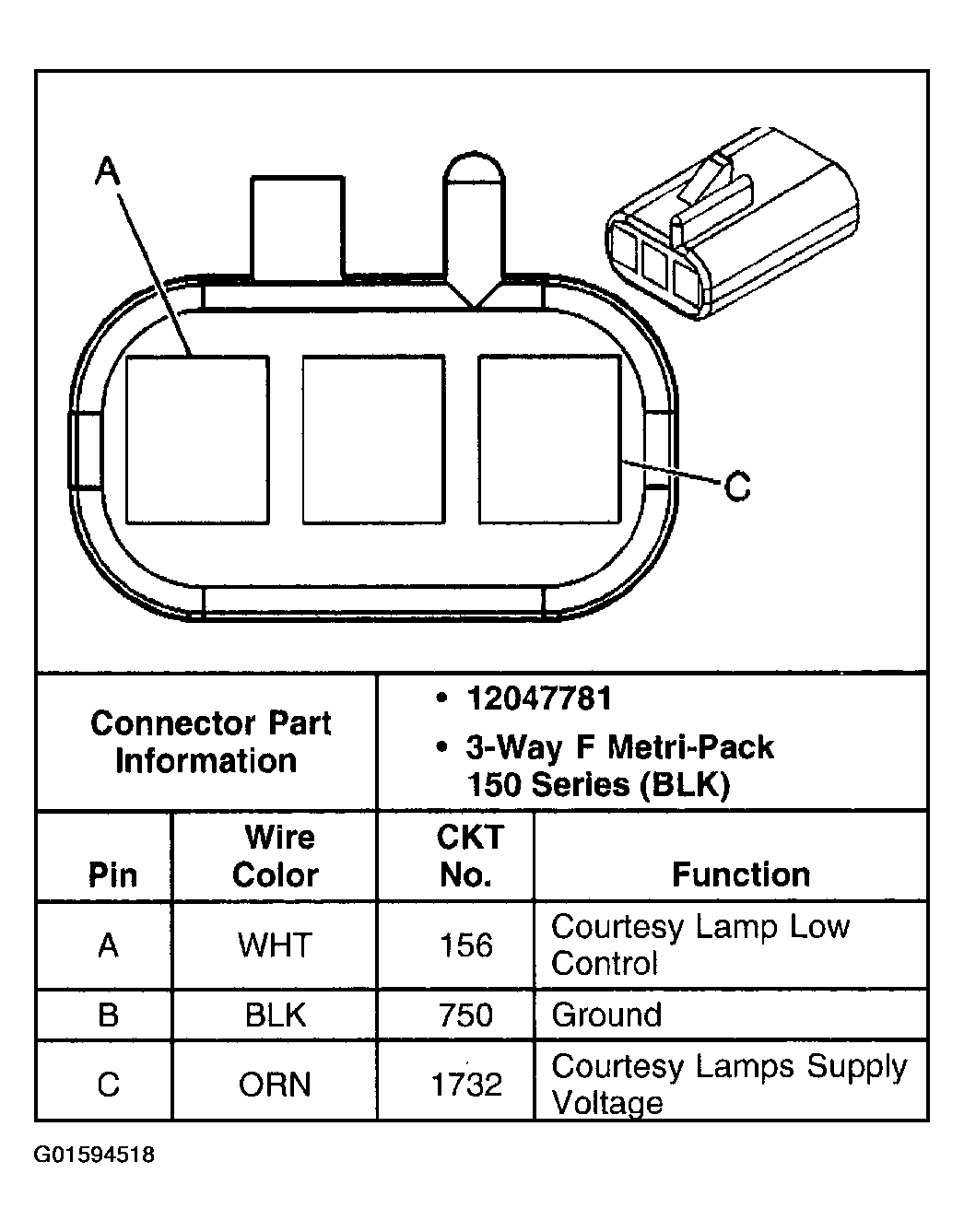

Fig 1: Dome Lamp Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
