Courtesy Lamp, Left Connector End View

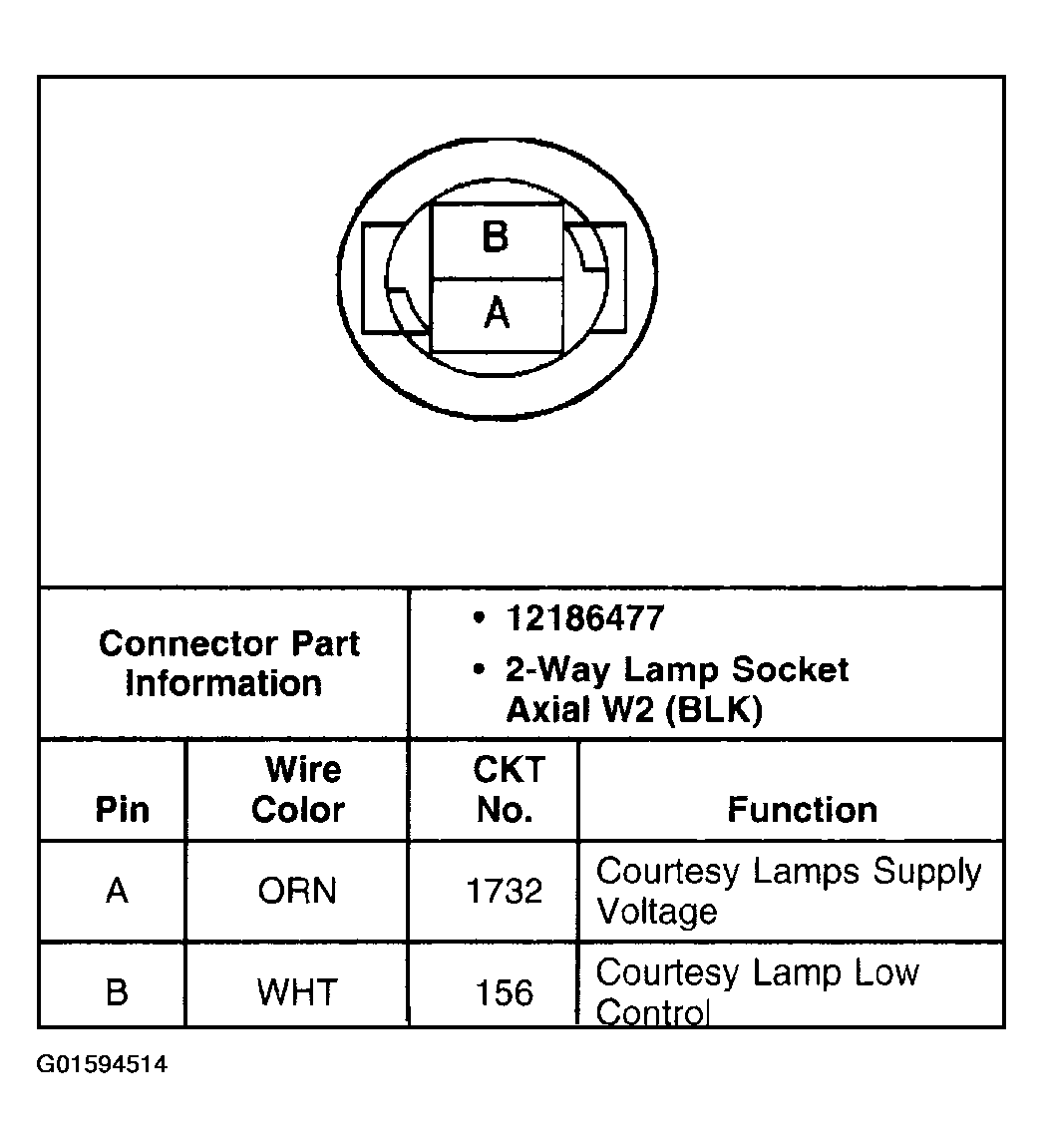

Fig 1: Courtesy Lamp, Left Connector End View

G01594514

Courtesy of GENERAL MOTORS CORP.
