Audio Amplifier Connector End View
Audio Amplifier Connector End View

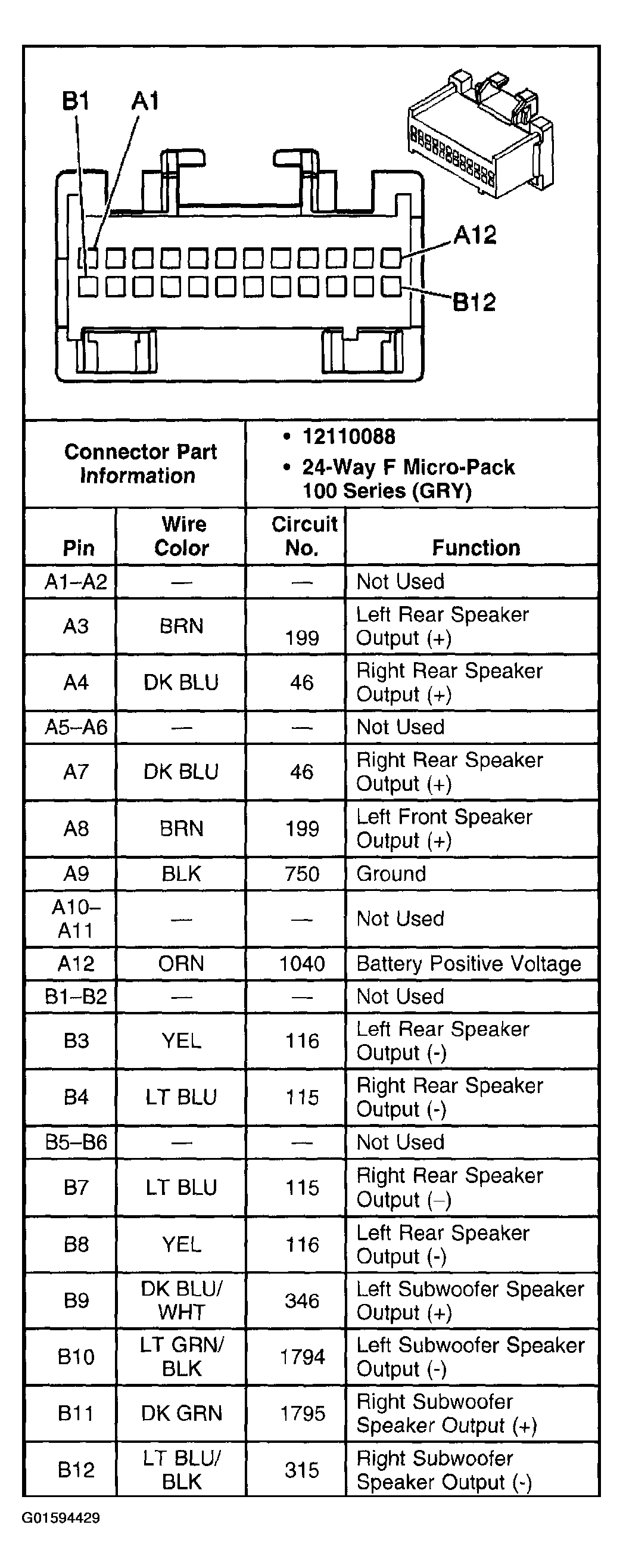

Fig 1: Audio Amplifier Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
