LEMON Manuals: Even more car manuals for everyone

Home >> Chevrolet >> 2003 >> Malibu Base >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Connector End Views >> Connector End Views >> Sunroof Module, C2 Connector End View

Sunroof Module, C2 Connector End View

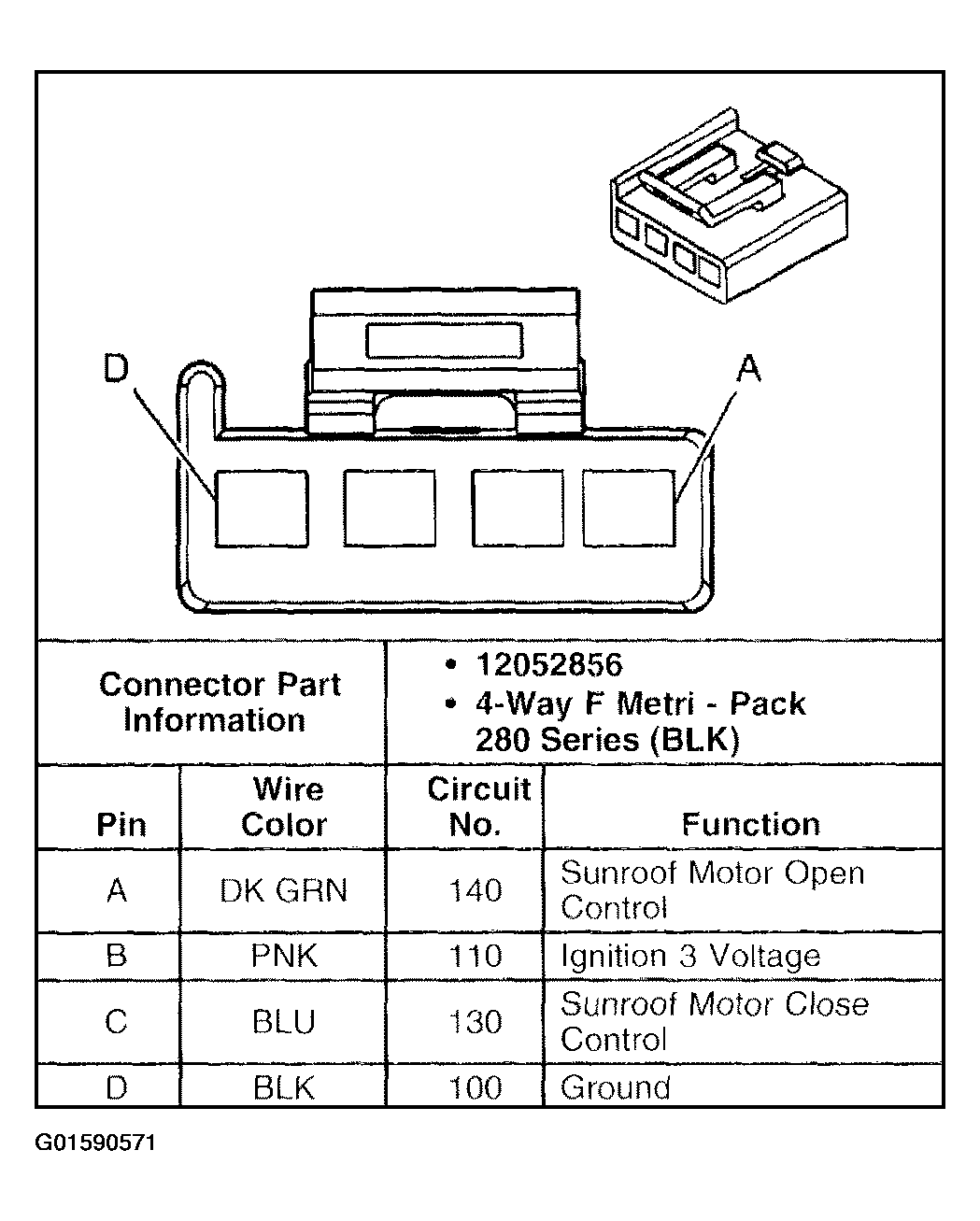

Fig 1: Sunroof Module, C2 Connector End View

G01590571

Courtesy of GENERAL MOTORS CORP.
