I/P Dimming Module Connector End View

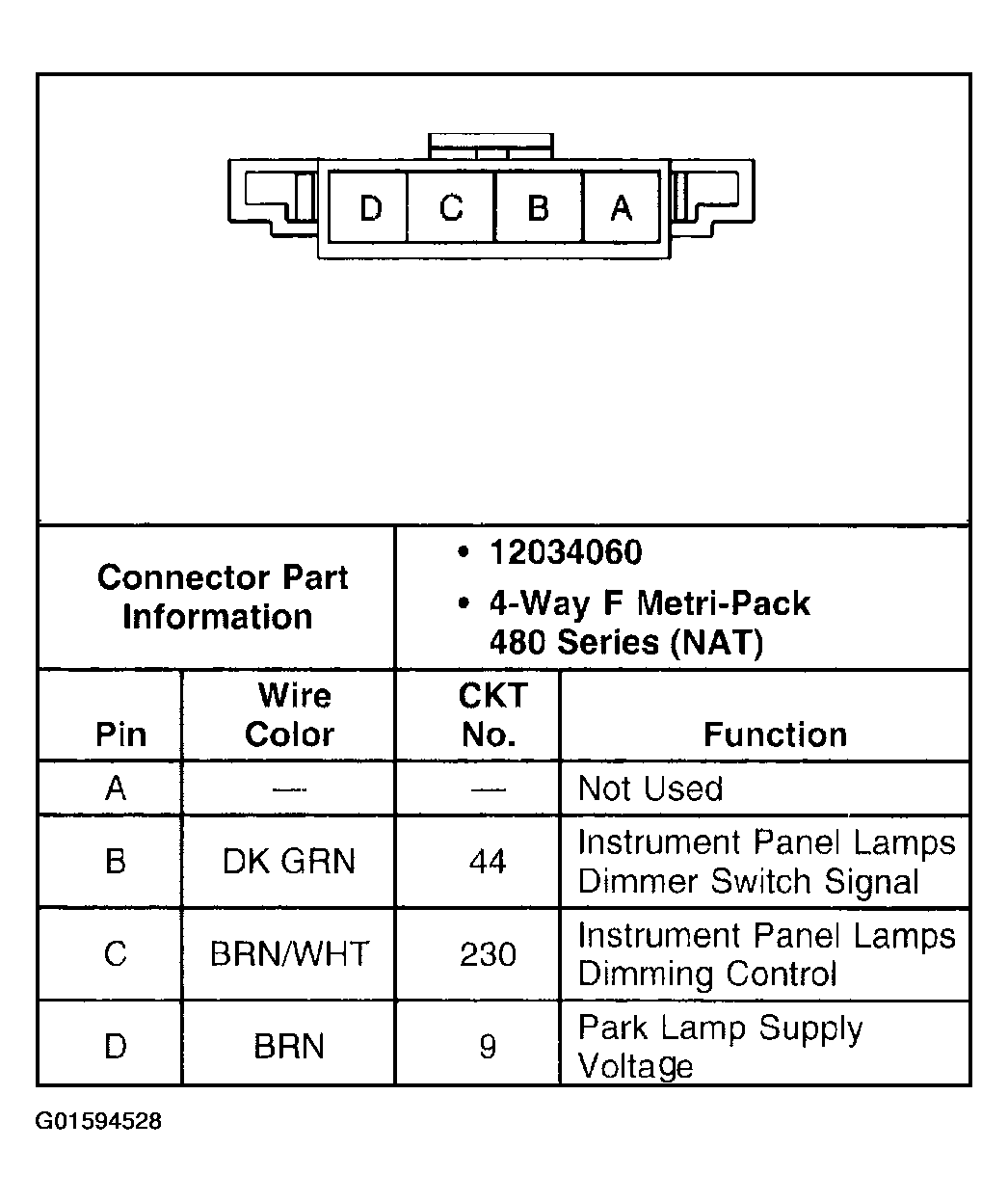

Fig 1: I/P Dimming Module Connector End View

G01594528

Courtesy of GENERAL MOTORS CORP.
