Horizontal Motor Connector End View
Horizontal Motor Connector End View

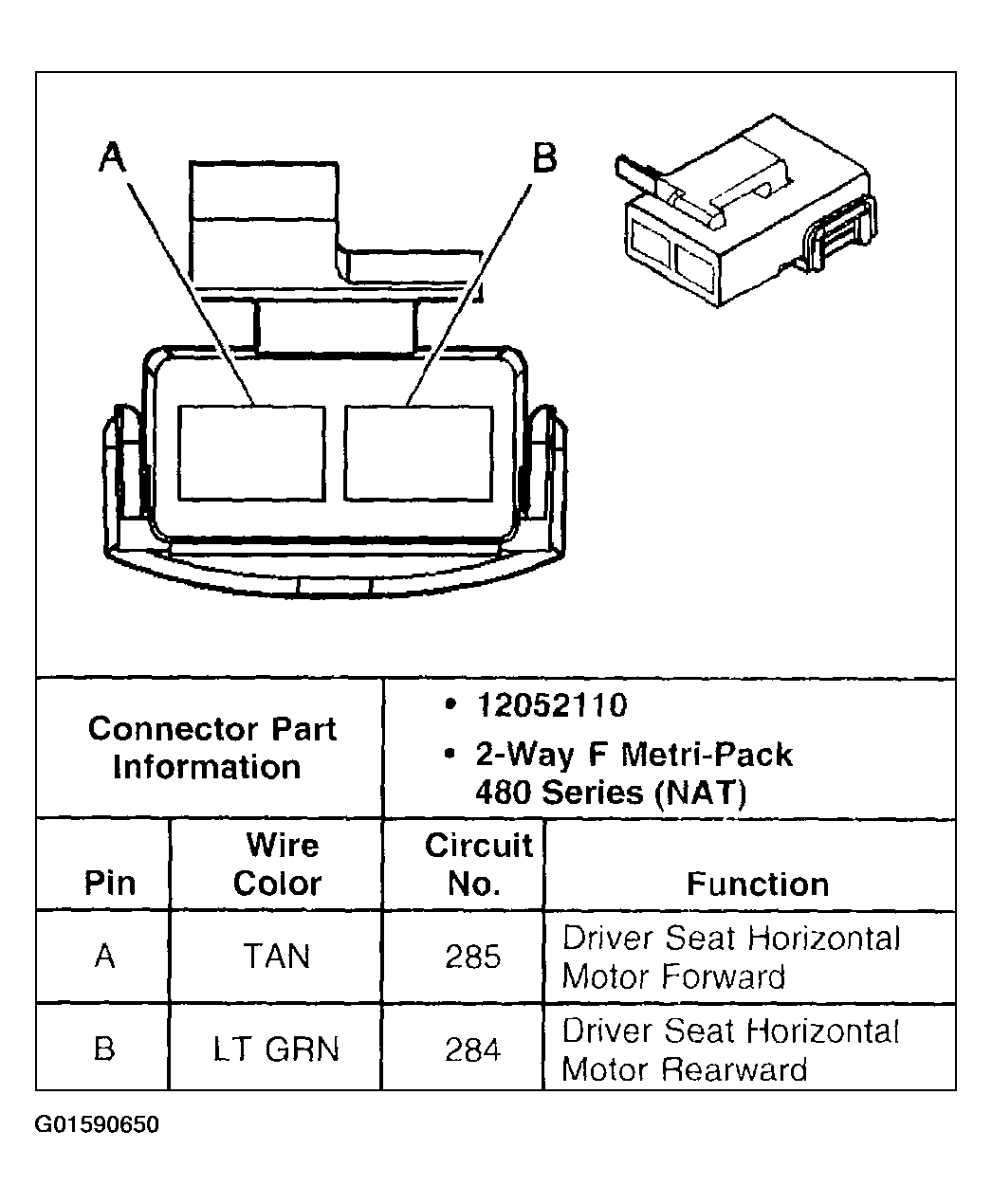

Fig 1: Horizontal Motor Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
