HVAC Control Assembly C2 Connector End View

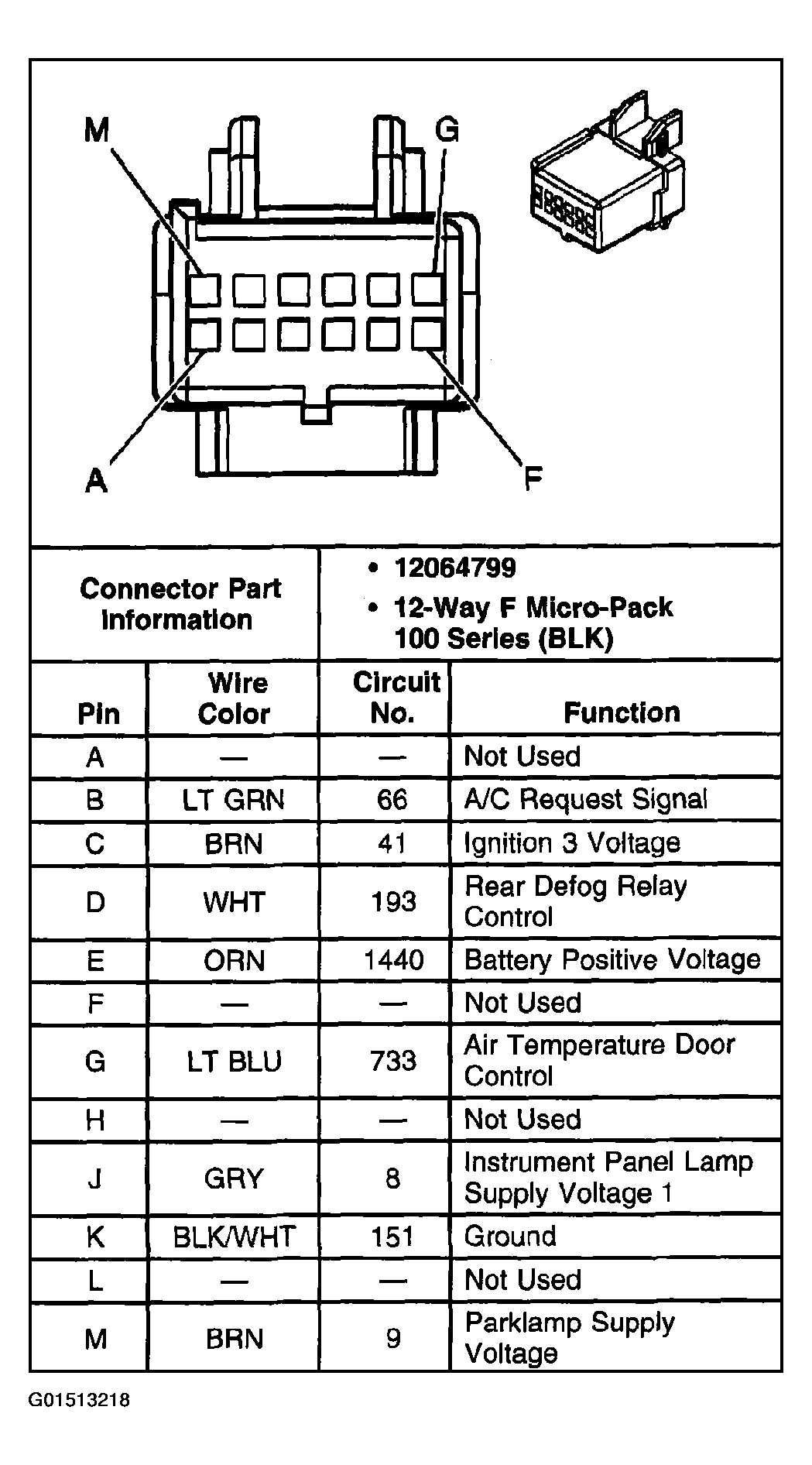

Fig 1: HVAC Control Assembly C2 Connector End View

G01513218

Courtesy of GENERAL MOTORS CORP.
