Coolant Level Switch Connector End View

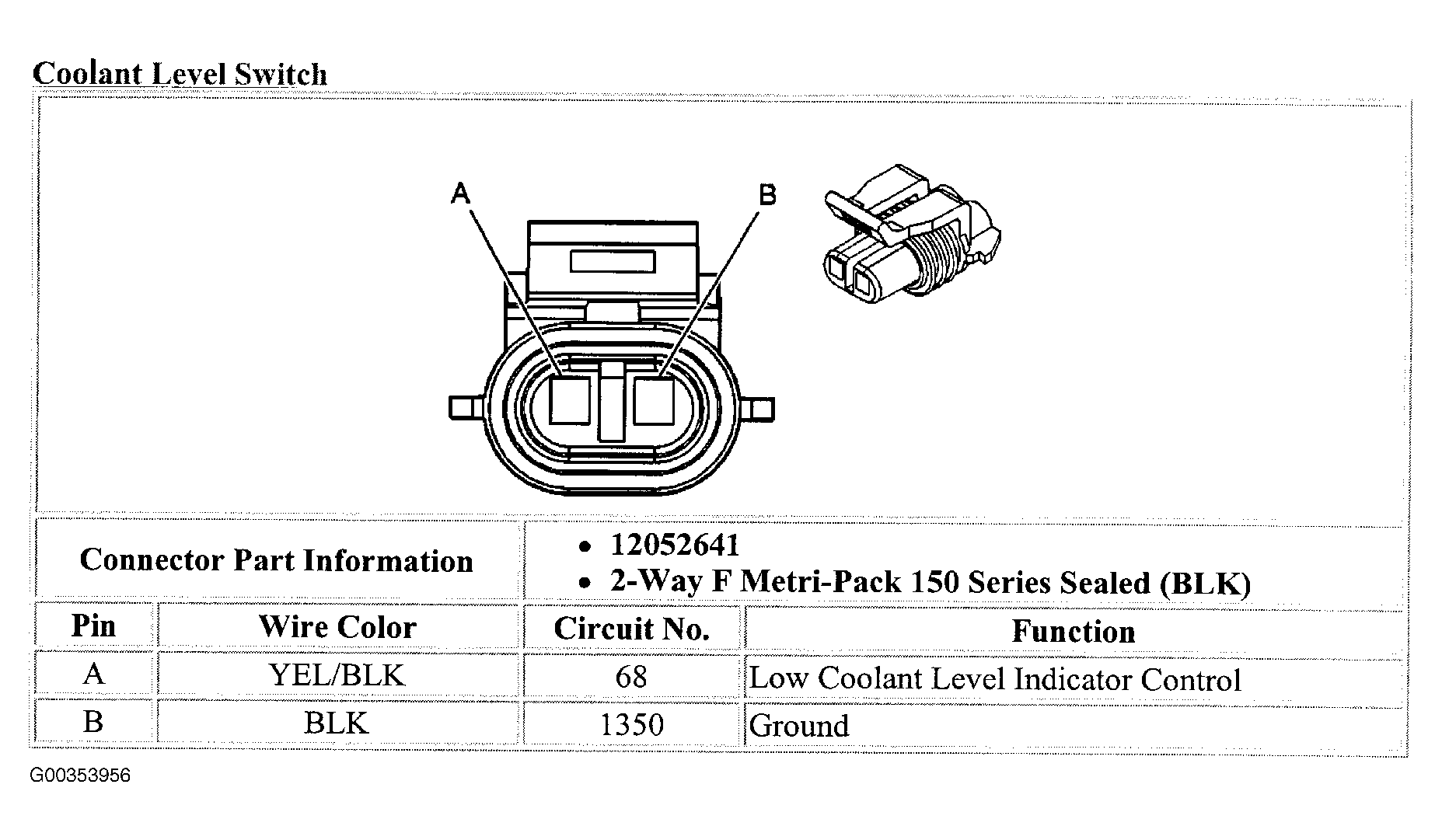

Fig 1: Coolant Level Switch Connector End View

G00353956

Courtesy of GENERAL MOTORS CORP.
