Installation Procedure

IMPORTANT: Do not tip the battery more than 40 degrees during battery installation.
  1. Install the battery to the battery tray.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the battery hold down retainer.

    Tighten

    Tighten bolt to 18 N.m (13 lb ft).

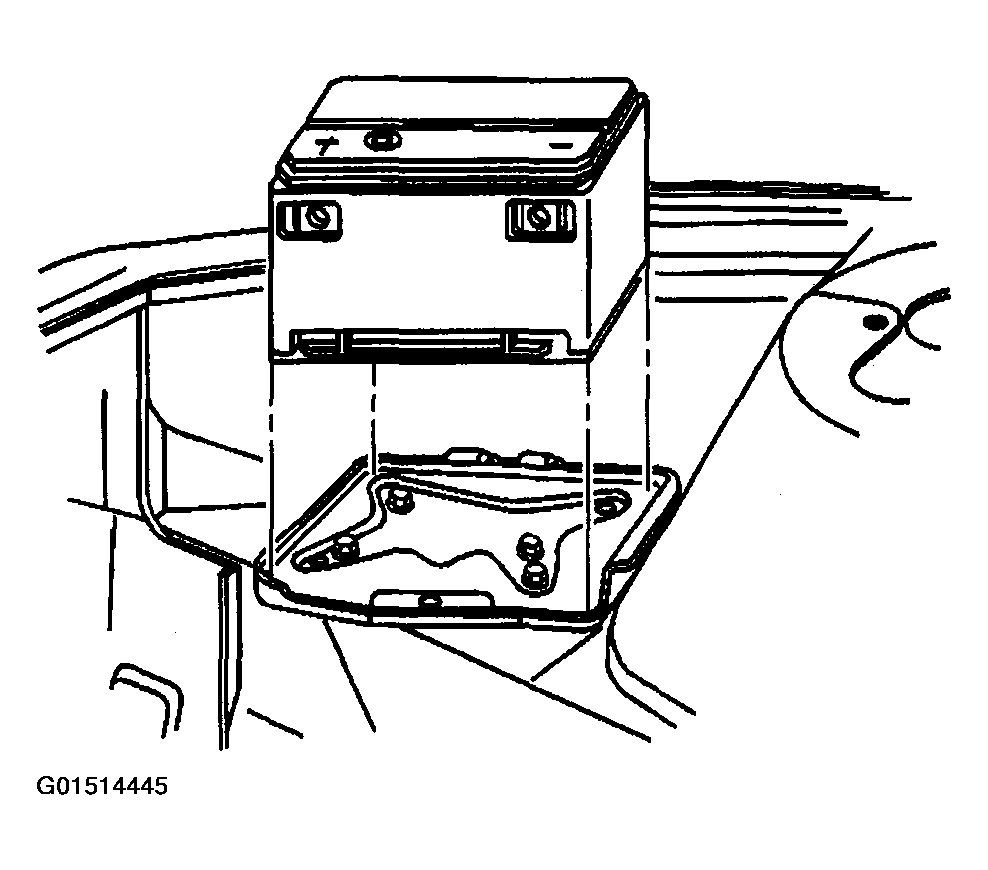

    Fig 1: Installing Battery
    G01514445Courtesy of GENERAL MOTORS CORP.
  3. Connect the positive battery cable.

    Tighten

    Tighten the positive battery cable bolt (1) to 15 N.m (11 lb ft).

  4. Connect the negative battery cable (2). Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE  .

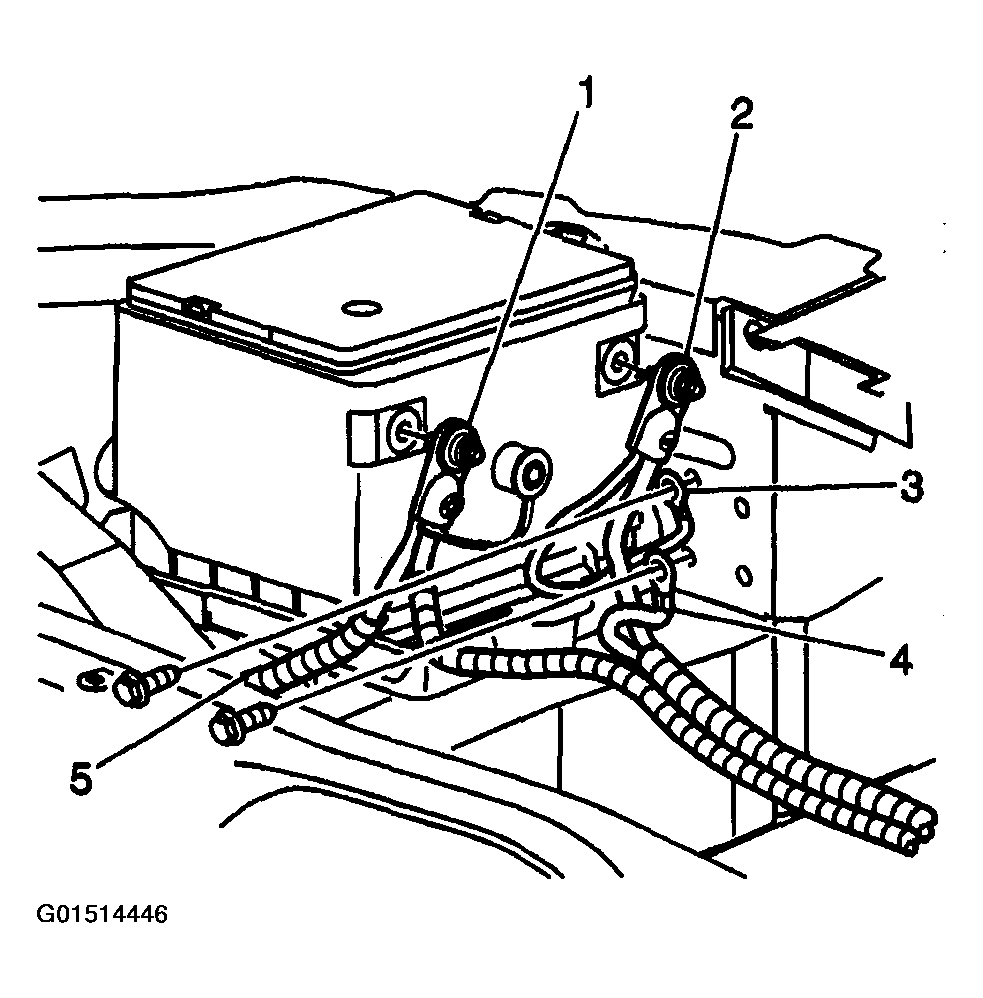

    Fig 2: Connecting Negative & Positive Battery Cable
    G01514446Courtesy of GENERAL MOTORS CORP.
