Home
>>
Chevrolet
>>
2003
>>
Malibu Base
>>
Repair and Diagnosis
>>
Body & Frame
>>
Windows
>>
Stationary Window System
>>
Schematic and Routing Diagrams
Schematic and Routing Diagrams

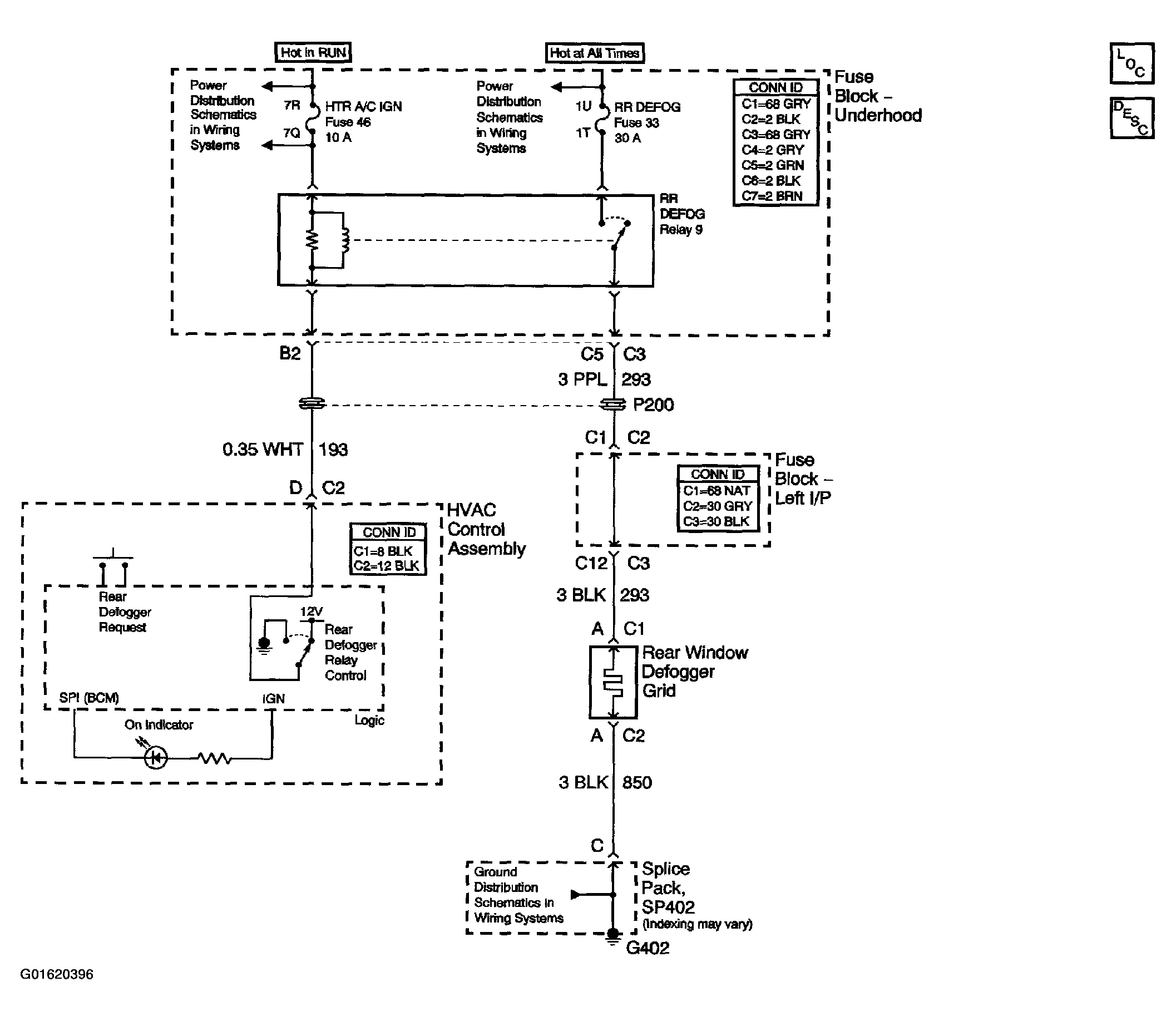

Fig 1: Defogger Schematics Diagram
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
