Stationary Windows Connector End Views

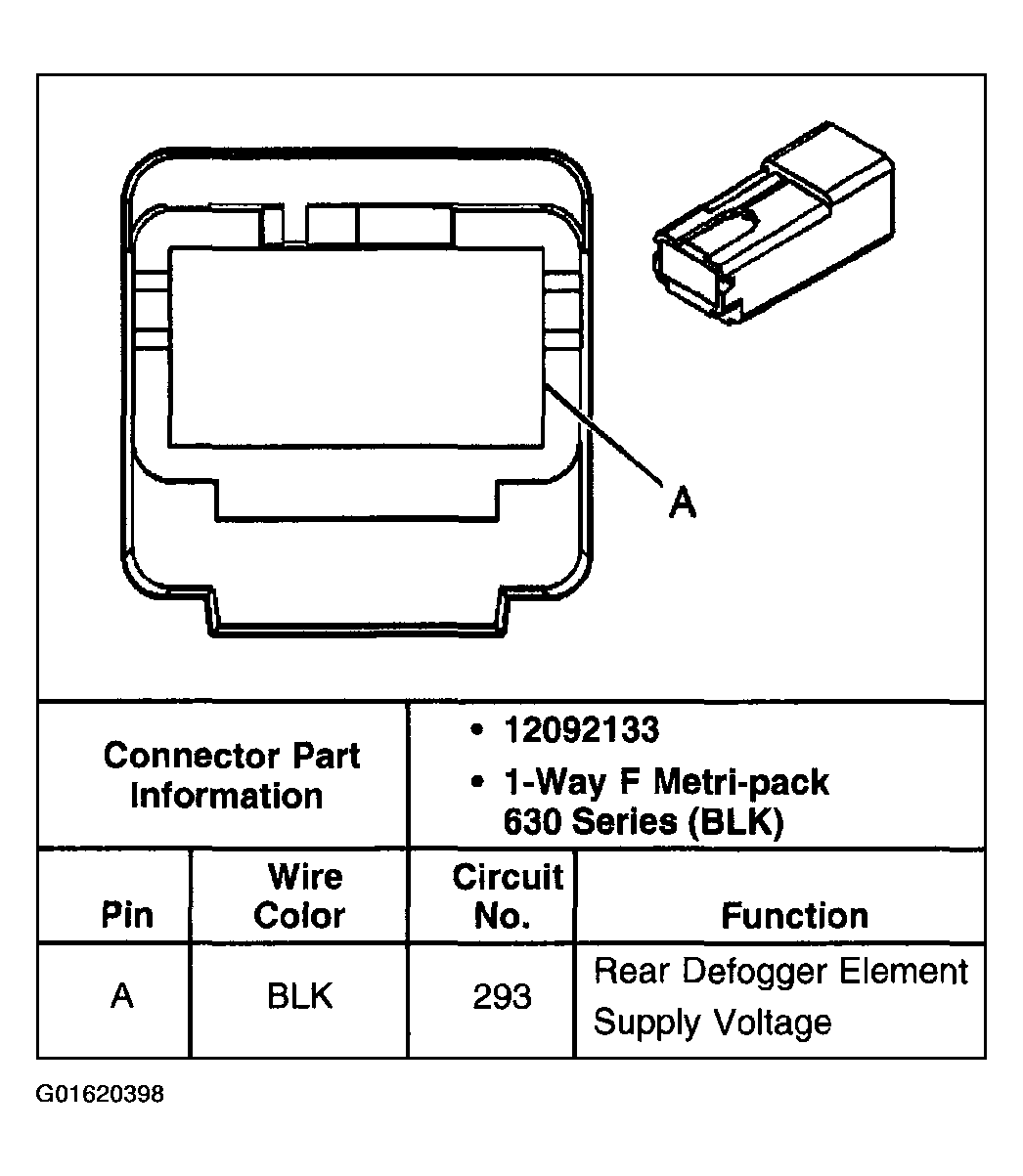

Fig 1: Identifying Stationary Windows Connector End View (Rear Window Defogger Grid C1)
G01620398Courtesy of GENERAL MOTORS CORP.

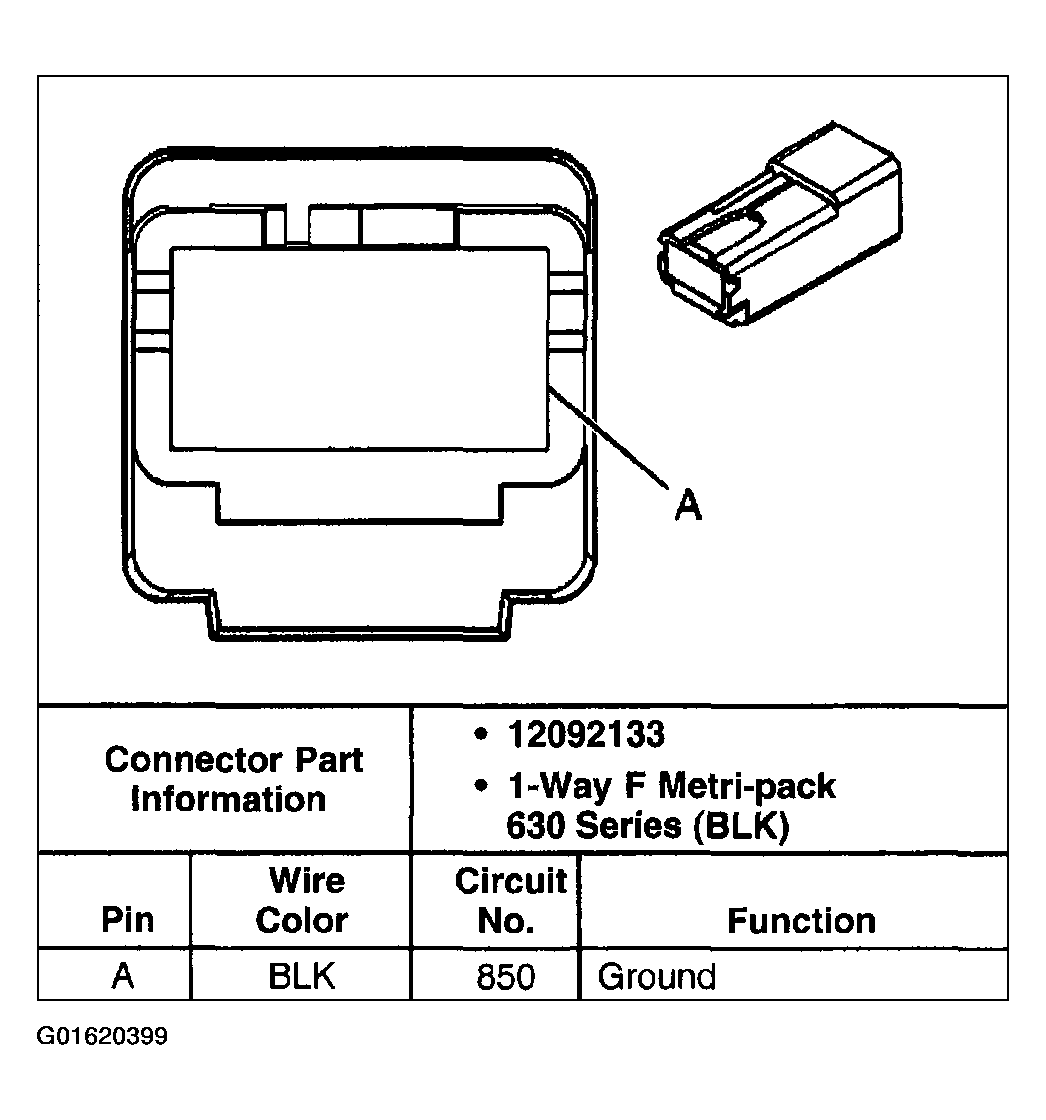

Fig 2: Identifying Stationary Windows Connector End View (Rear Window Defogger Grid C2)
G01620399Courtesy of GENERAL MOTORS CORP.
