Schematic and Routing Diagrams

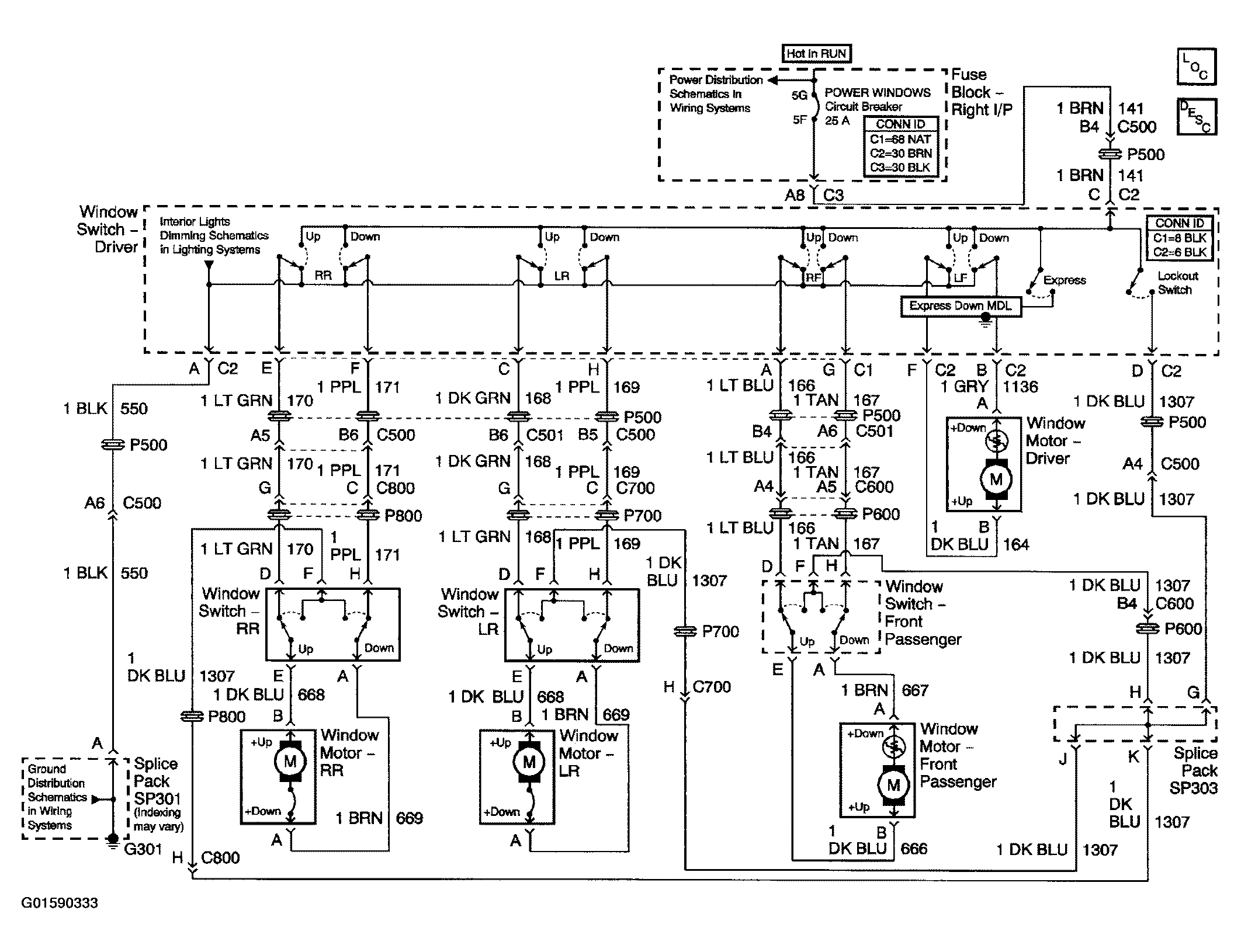

Fig 1: Power Window Schematics

Courtesy of GENERAL MOTORS CORP.

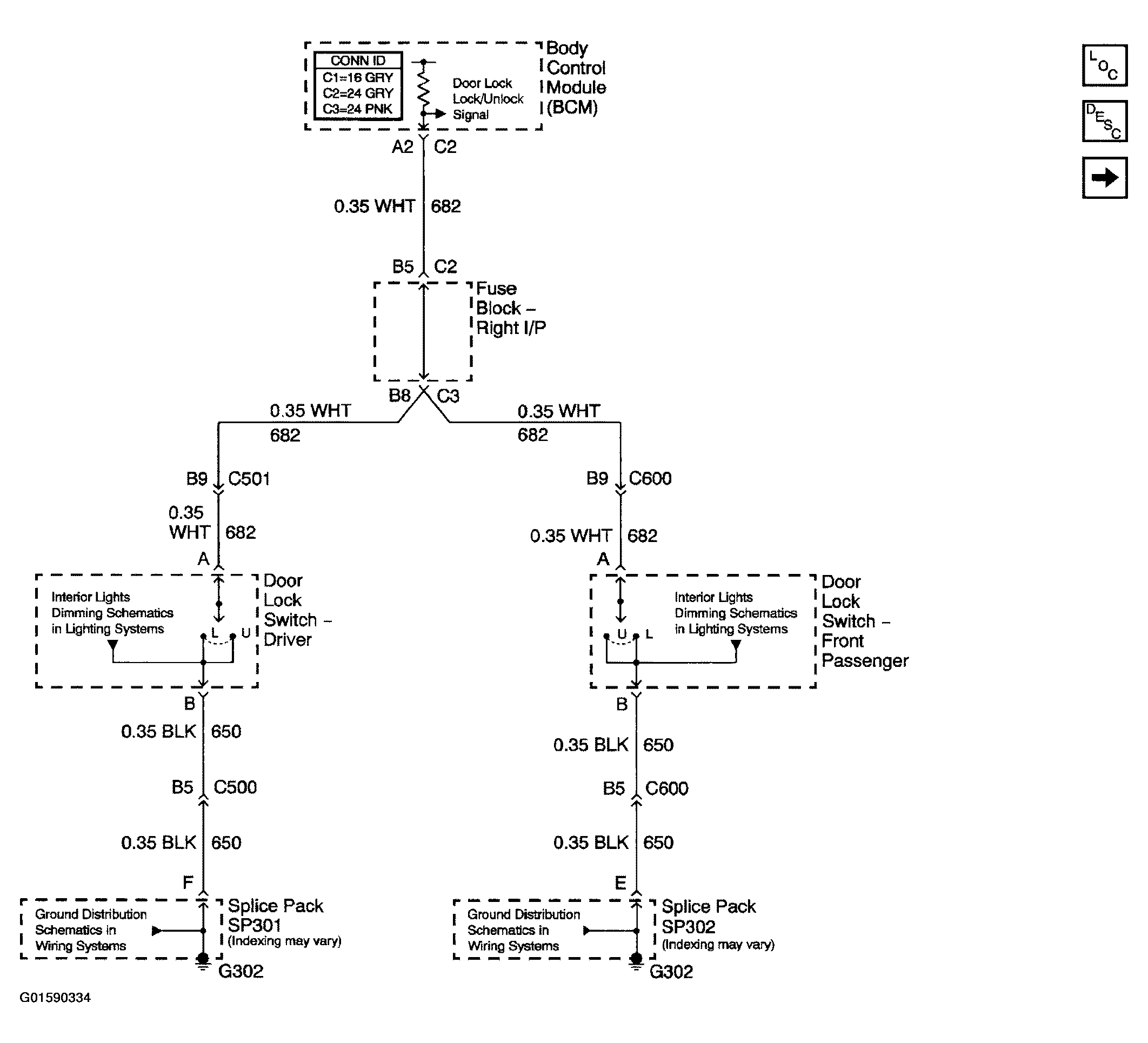

Fig 2: Door Lock/Indicator Schematics (Switches)

Courtesy of GENERAL MOTORS CORP.

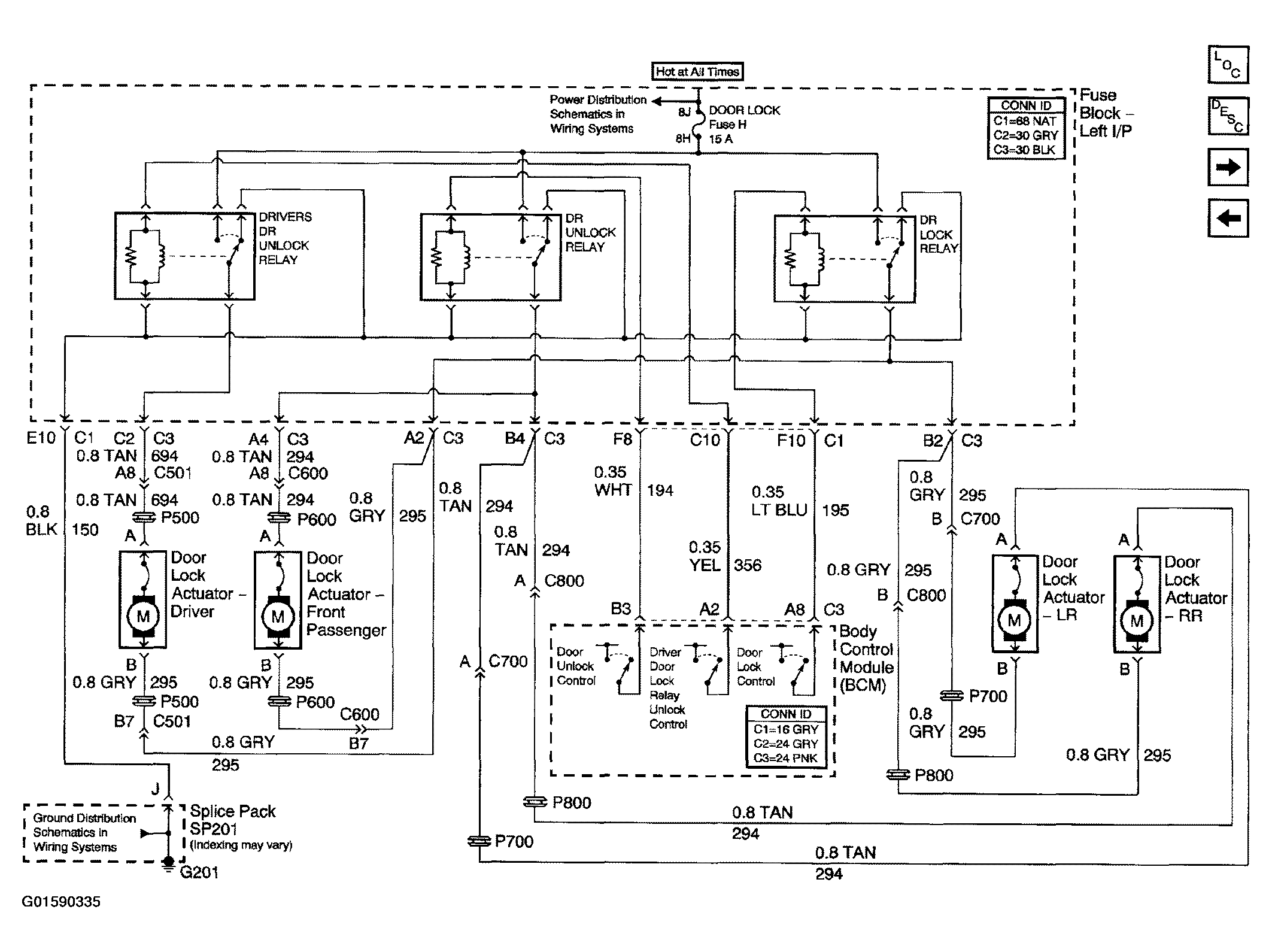

Fig 3: Door Lock/Indicator Schematics (Actuators - With Remote Function Actuation)

Courtesy of GENERAL MOTORS CORP.

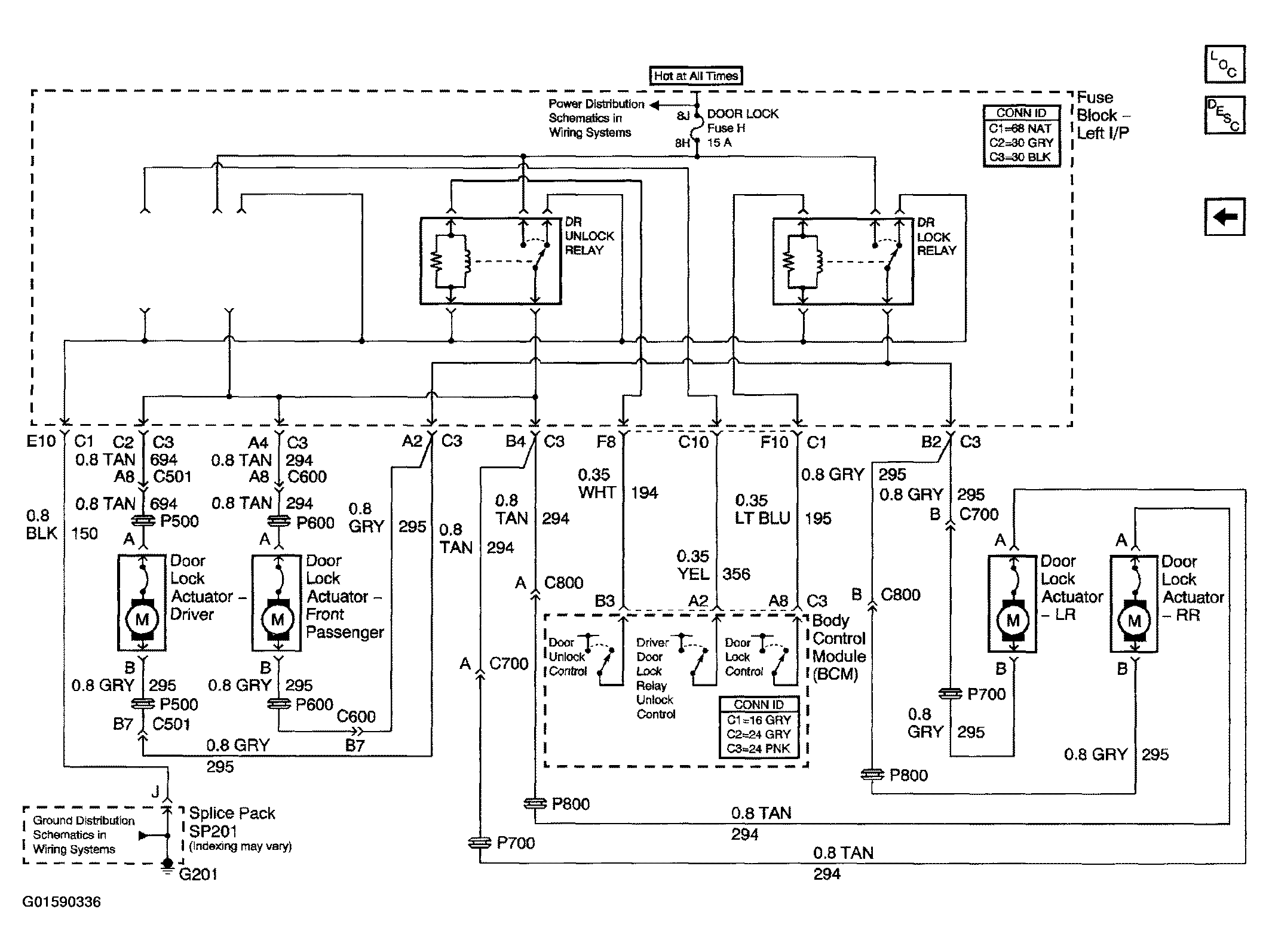

Fig 4: Door Lock/Indicator Schematics (Actuators - Without Remote Function Actuation)

Courtesy of GENERAL MOTORS CORP.

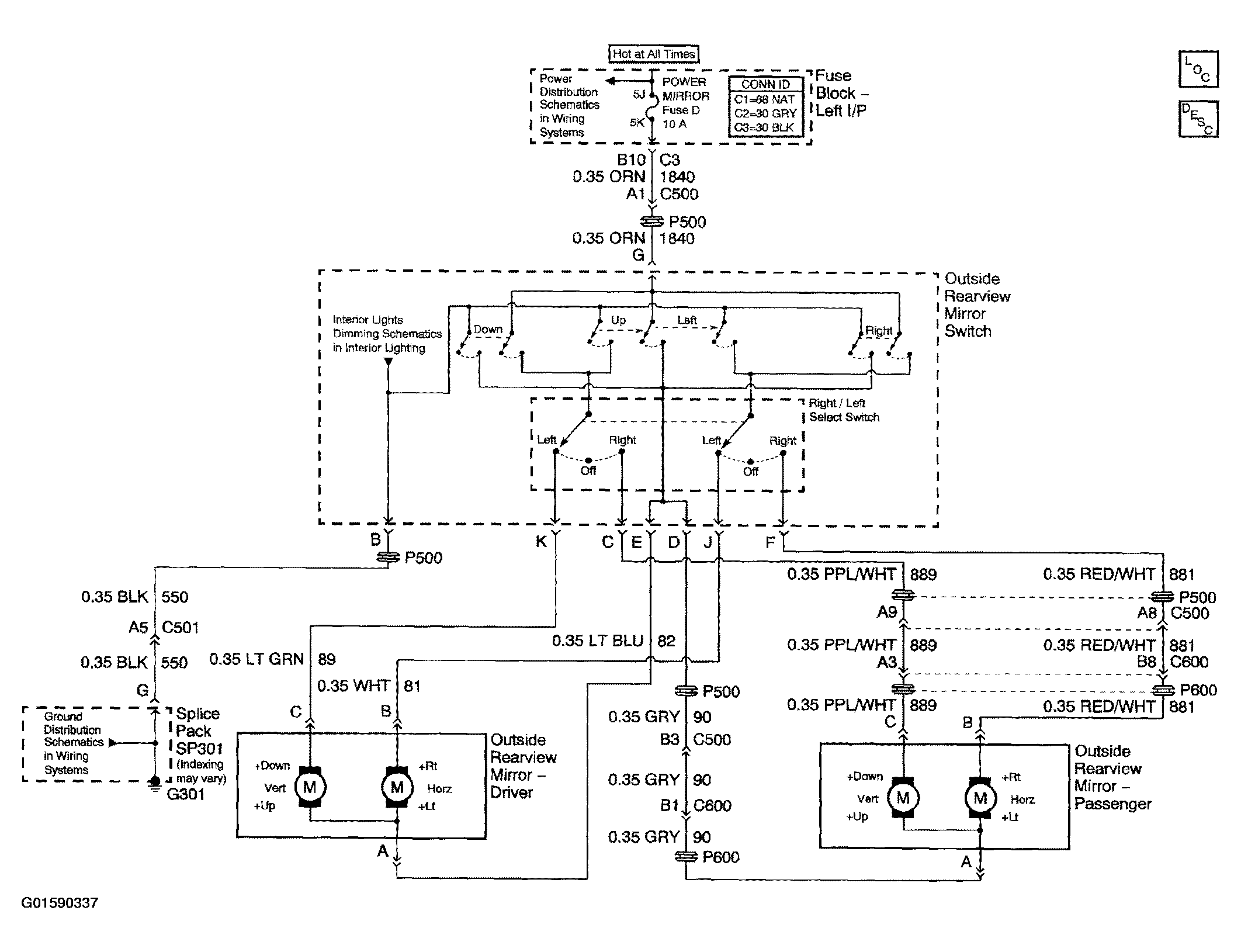

Fig 5: Outside Mirror Schematics

Courtesy of GENERAL MOTORS CORP.
