Removal Procedure

  1. Use a flat bladed tool in order to remove the power window switch (3) from the door trim panel. Push in and lift up at the side of the switch.
  2. Disconnect the electrical connector (2) from the power window switch (3).
  3. Remove the power window switch bezel (1) from the power window switch (3) by releasing the retainers with the flat bladed tool.

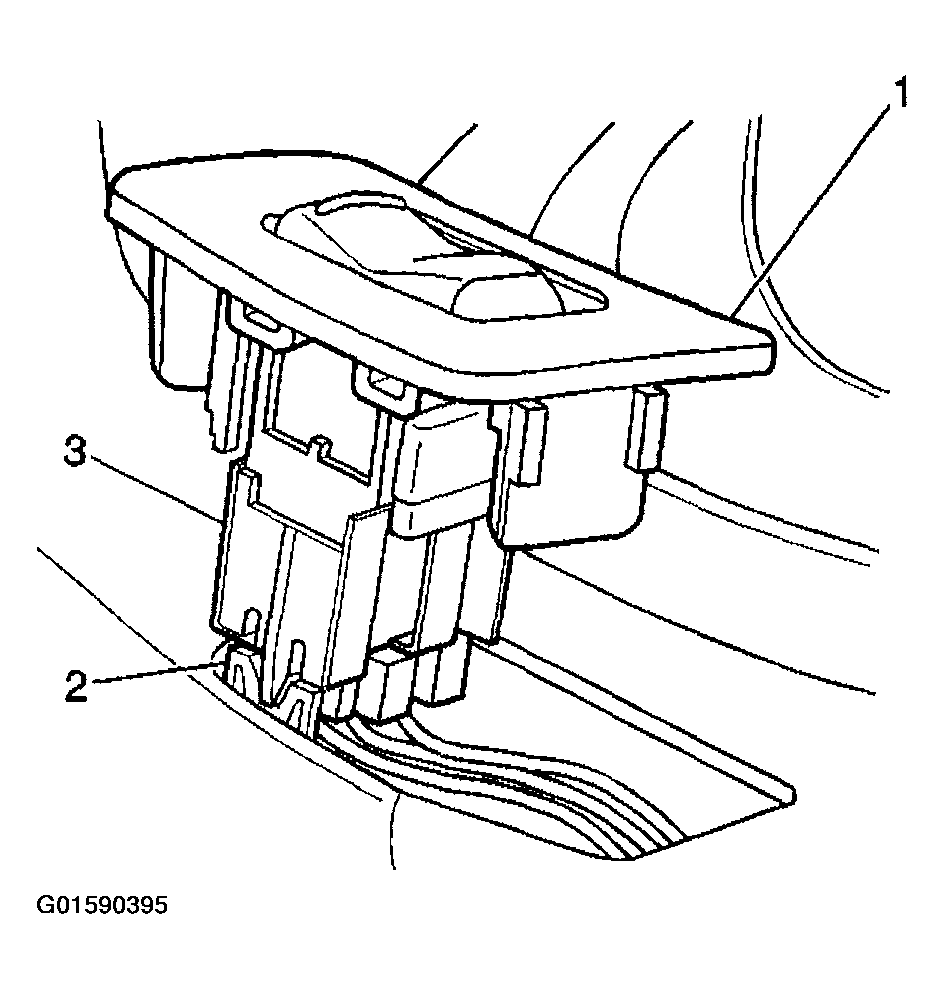

    Fig 1: Removing Right Front Power Window Switch
    G01590395Courtesy of GENERAL MOTORS CORP.
