Installation Procedure

  1. Install the bezel (1) to the power window switch (3) by pressing it into the retainers until fully seated.
  2. Connect the electrical connector (2) to the power window switch (3).
  3. Install the power window switch (3) to the door trim panel by pressing it until fully seated.

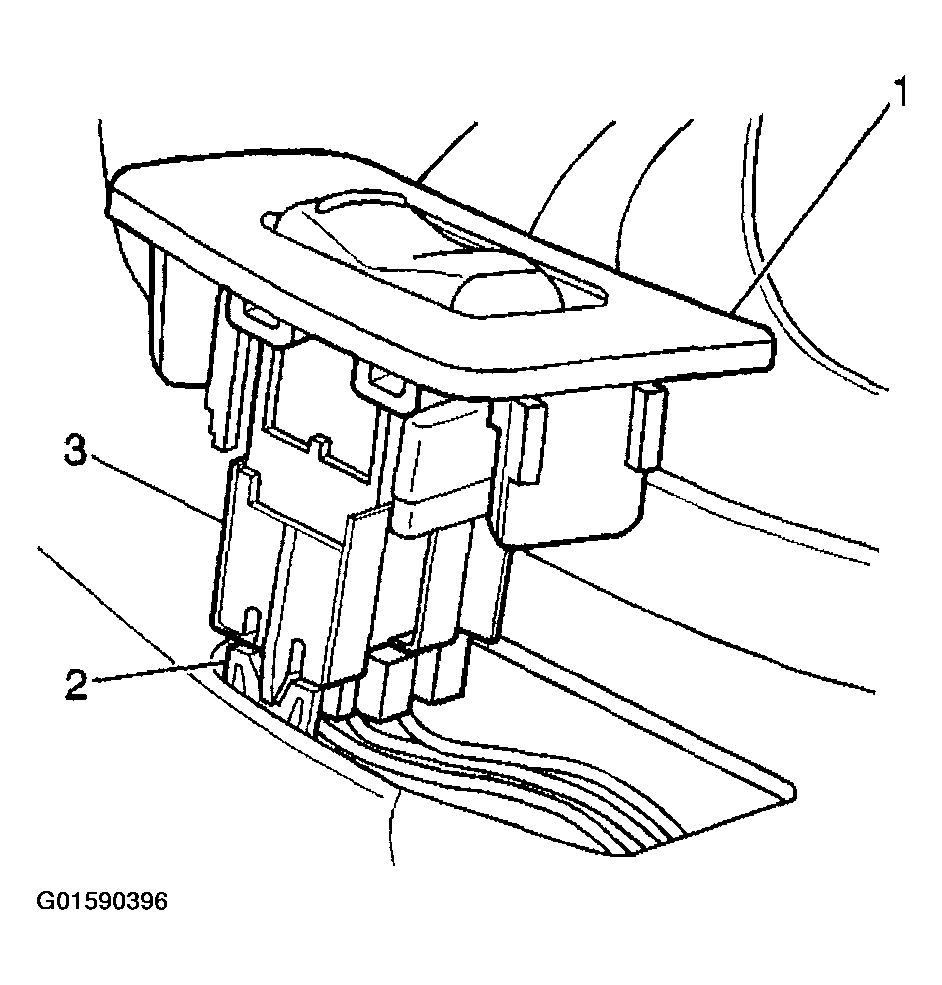

    Fig 1: Installing Right Front Power Window Switch
    G01590396Courtesy of GENERAL MOTORS CORP.
