Removal Procedure

Remove the front door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR .
Align the notch in the outside rearview mirror remote control bezel (1) with the tab in the hole at the front of the armrest.
Press on the base of the outside rearview mirror remote control bezel to release the bezel from the door trim panel.

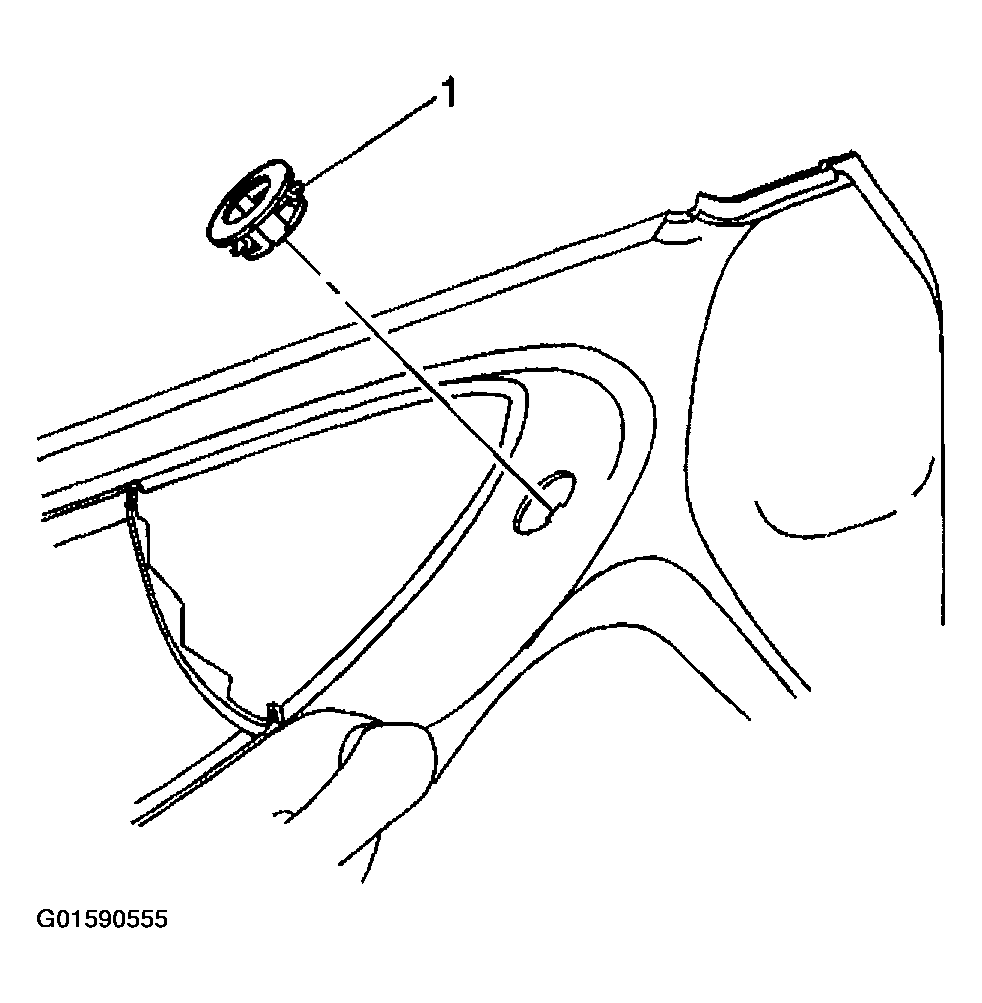

Fig 1: Removing Outside Rearview Mirror Remote Control Bezel
Courtesy of GENERAL MOTORS CORP.
Remove the front door inner panel mirror insulators (3).
Remove the outside rearview mirror nuts (2).
Remove the outside rearview mirror (1) from the front door.

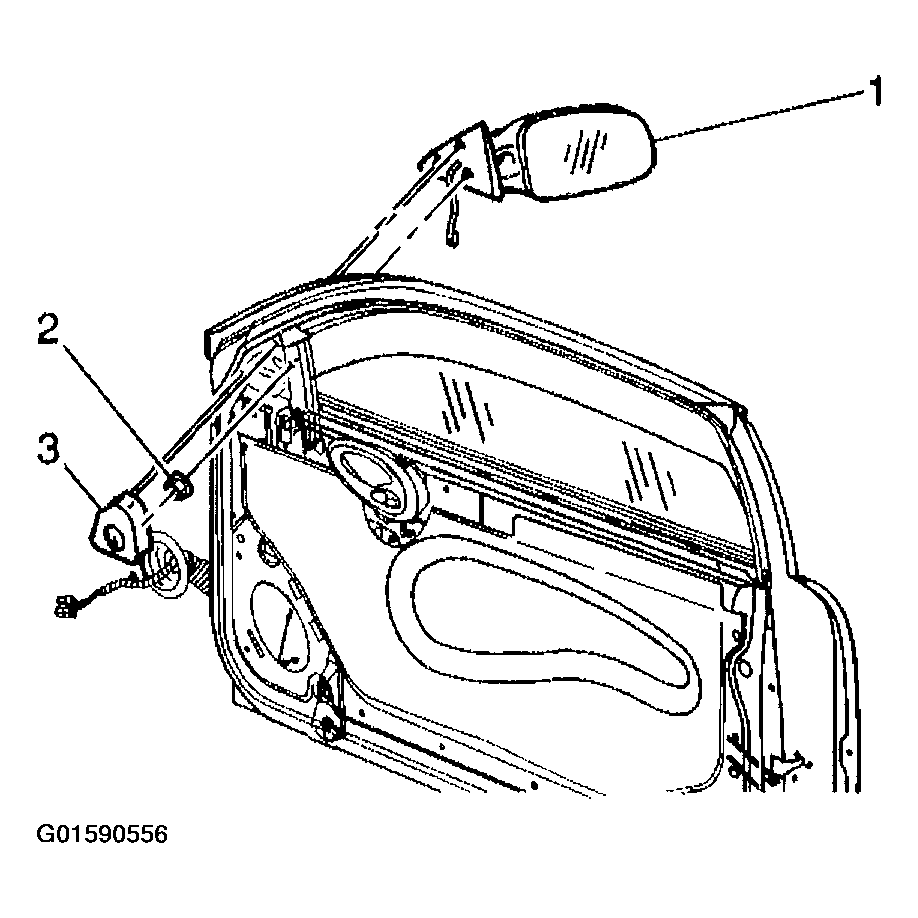

Fig 2: Removing Outside Rearview Mirror, Nuts & Insulators From Front Door
Courtesy of GENERAL MOTORS CORP.
