Removal Procedure

CAUTION: When working with any type of glass or sheet metal with exposed or rough edges, wear approved safety glasses and gloves in order to reduce the chance of personal injury.

Grasp the mirror face firmly and pull it from the mirror body.

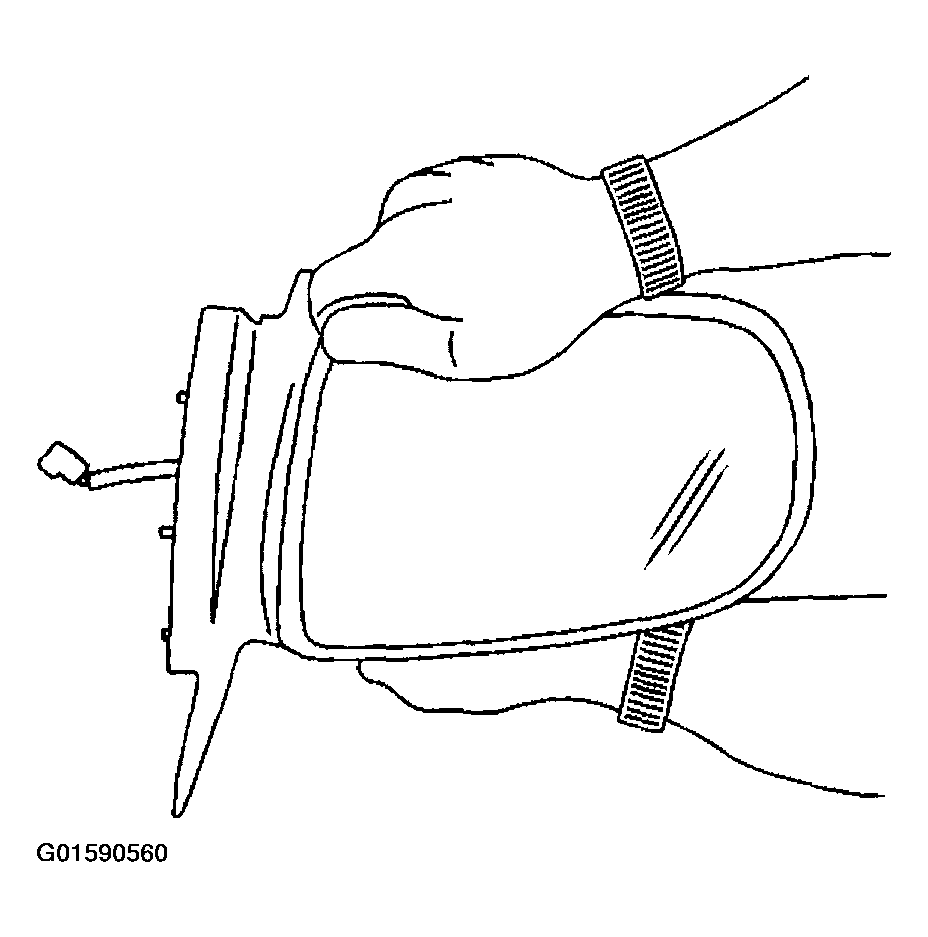

Fig 1: Removing Mirror Face
Courtesy of GENERAL MOTORS CORP.
Remove the 2 jackscrews from the back of the mirror case
- Bend the 2 jackscrews over.
- Press down on the side of the jackscrew popping the screw from the mirror glass case.
- Save the jackscrews for reinstallation to the mirror motor.

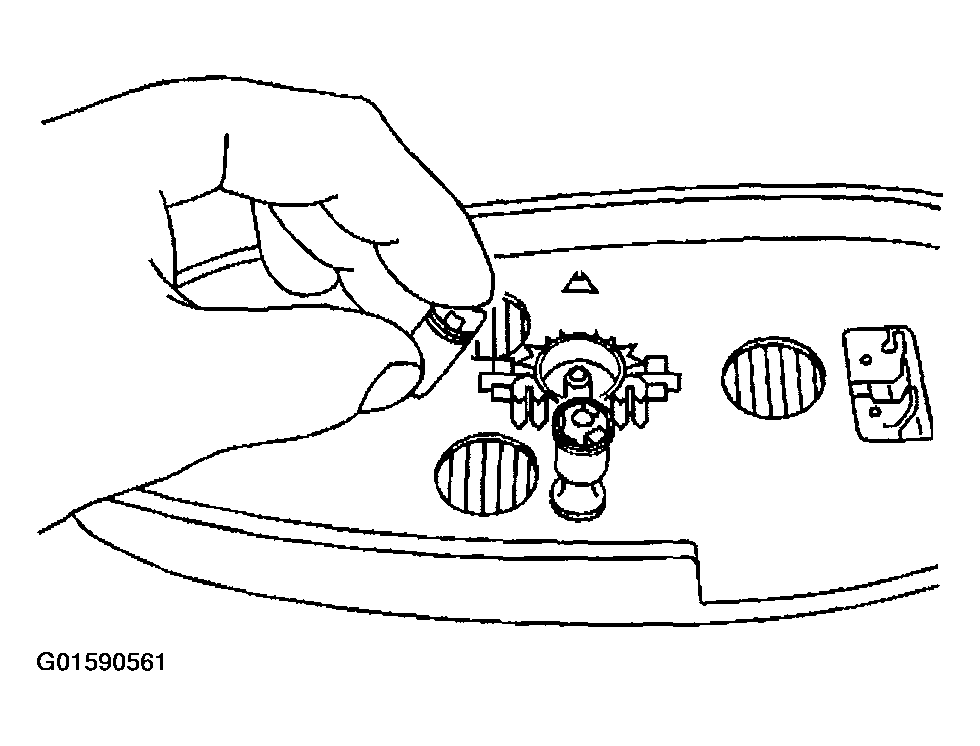

  Fig 2: Removing Jackscrews From Back Of Mirror Case
  Courtesy of GENERAL MOTORS CORP.
