Schematic and Routing Diagrams

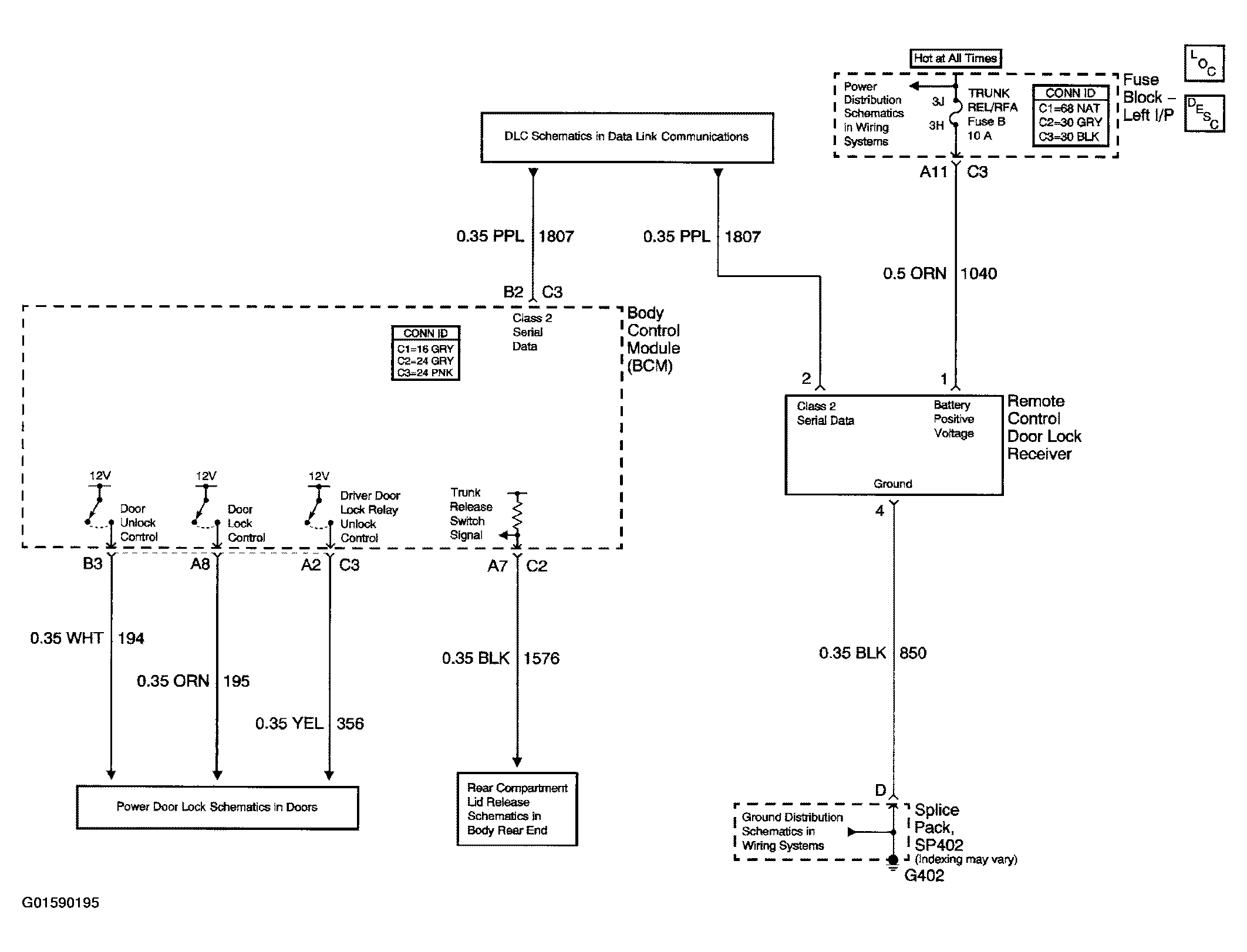

Fig 1: Keyless Entry Schematics Diagram
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
