Entertainment Component Views

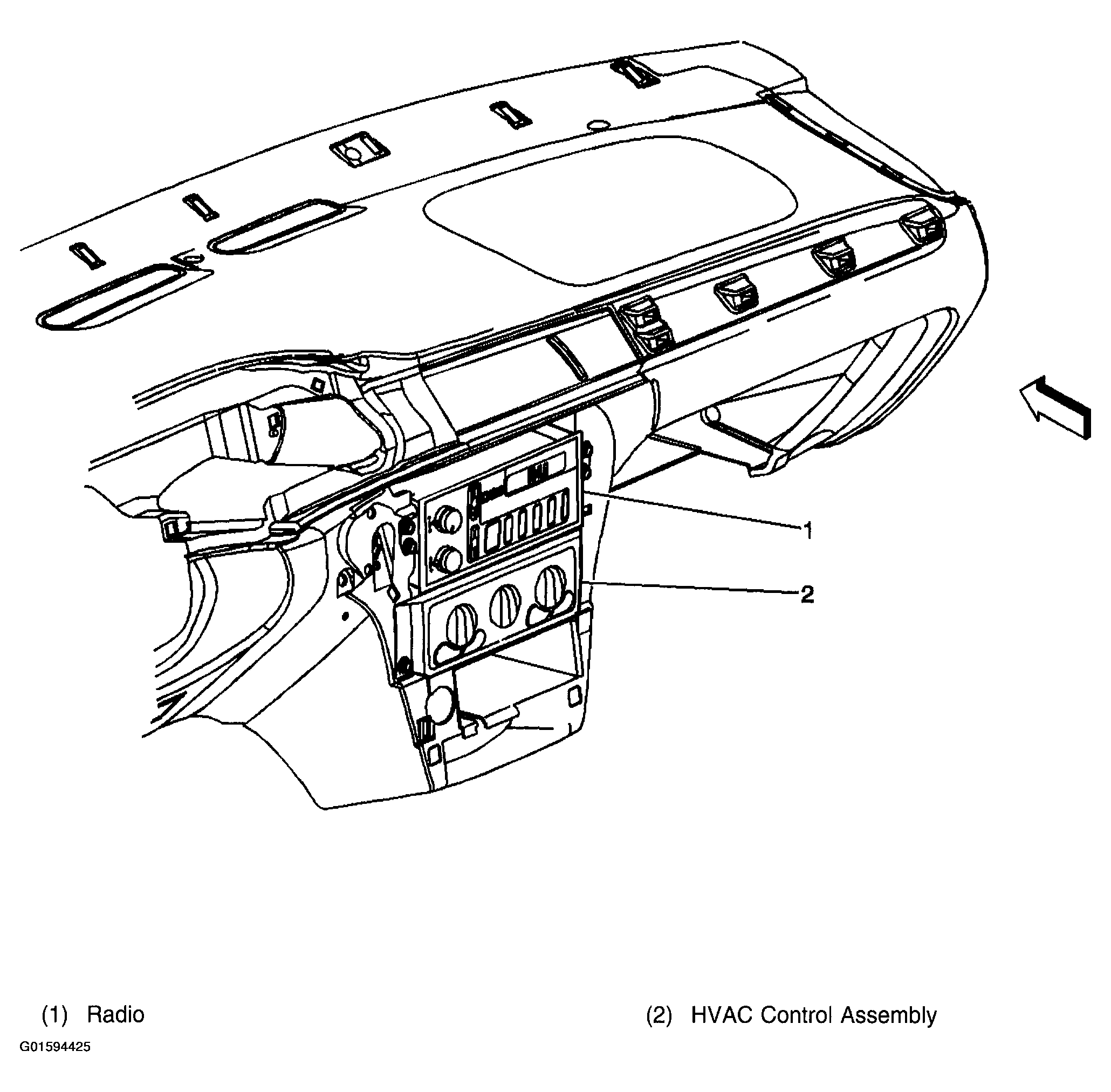

Fig 1: Locating Radio And HVAC Control Assembly
Courtesy of GENERAL MOTORS CORP.

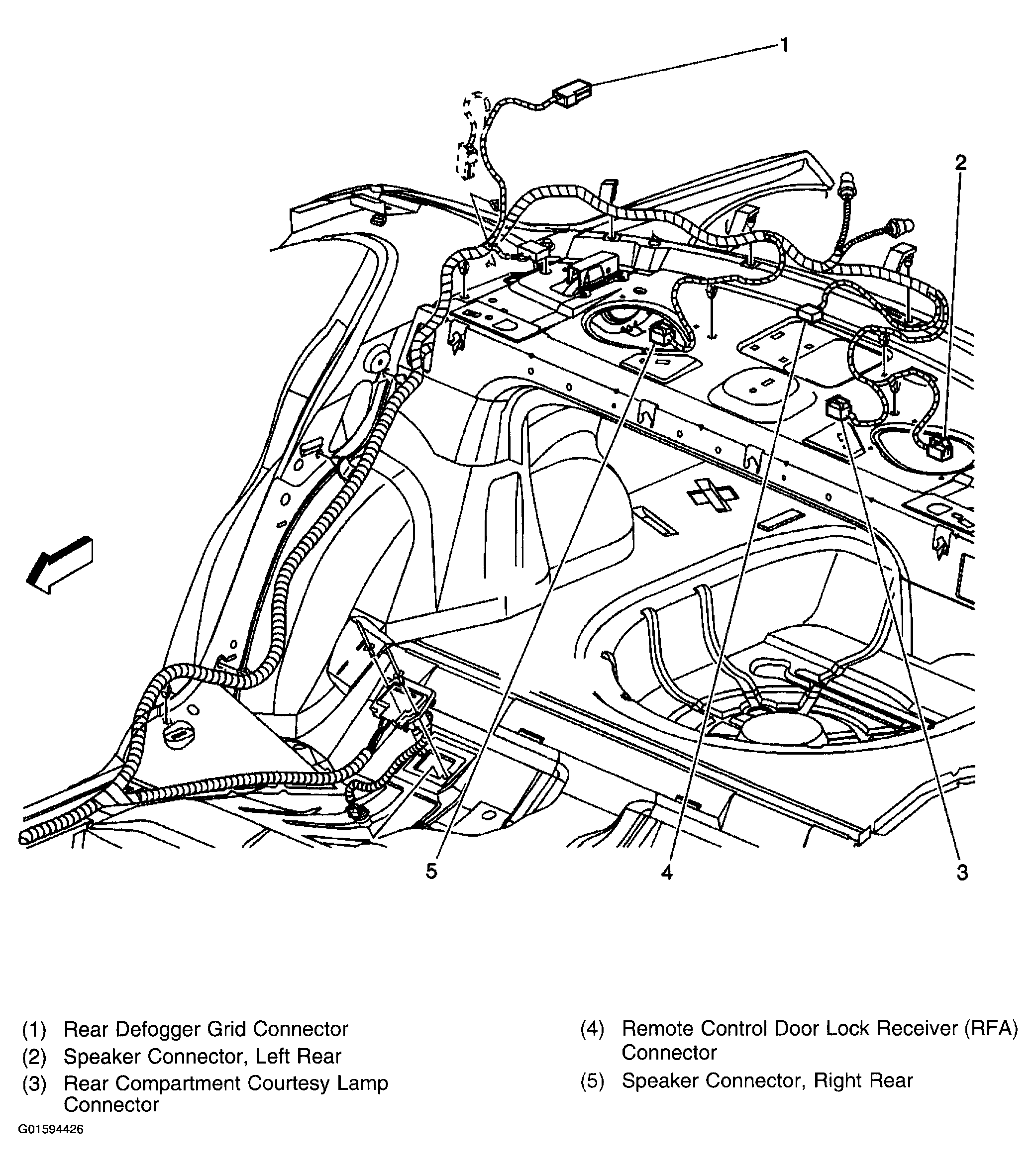

Fig 2: Component Location - Right Side Of Passenger Compartment, Rear Package Shelf
Courtesy of GENERAL MOTORS CORP.

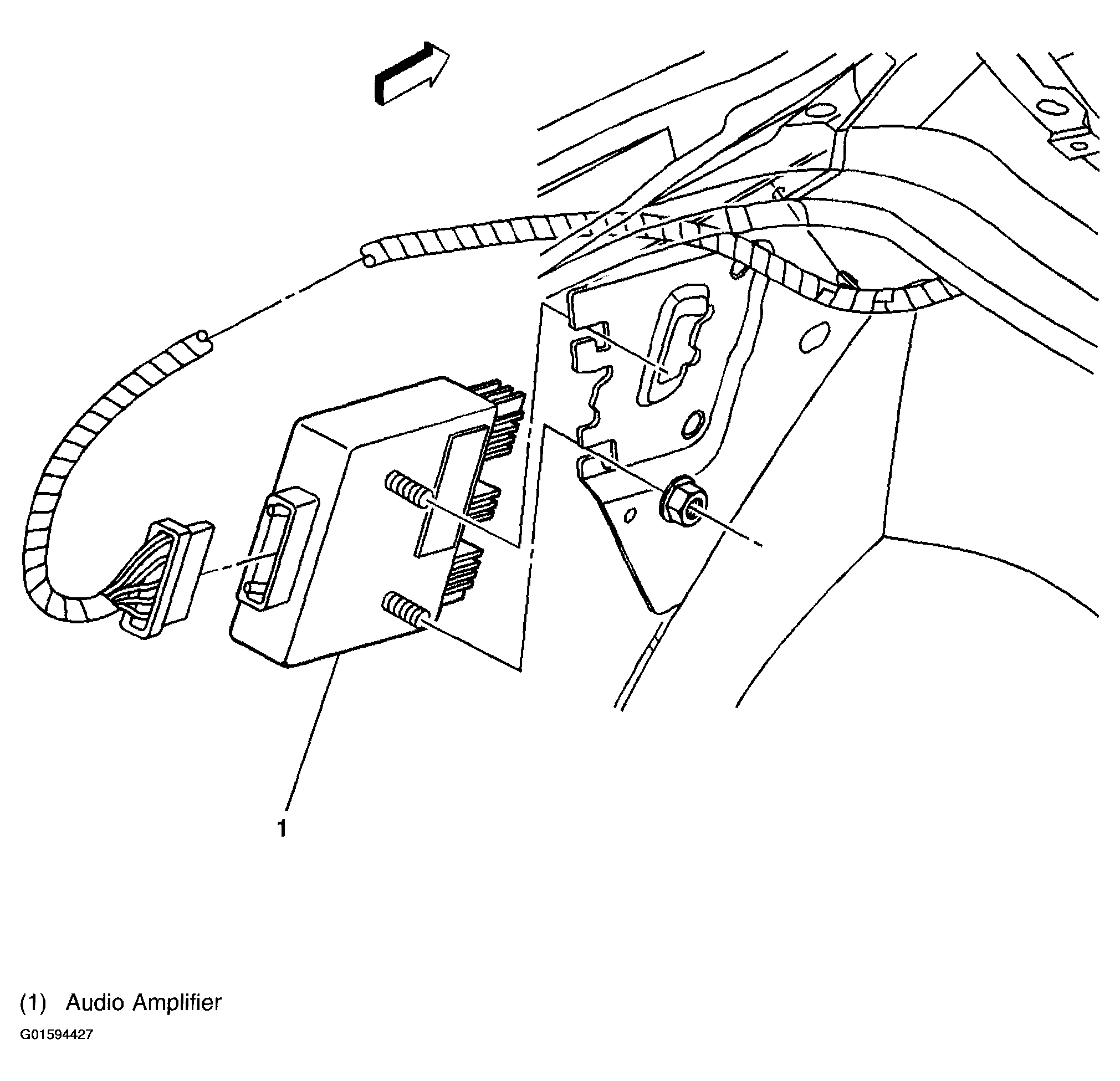

Fig 3: Locating Audio Amplifier
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
