Data Link Communications Component Views

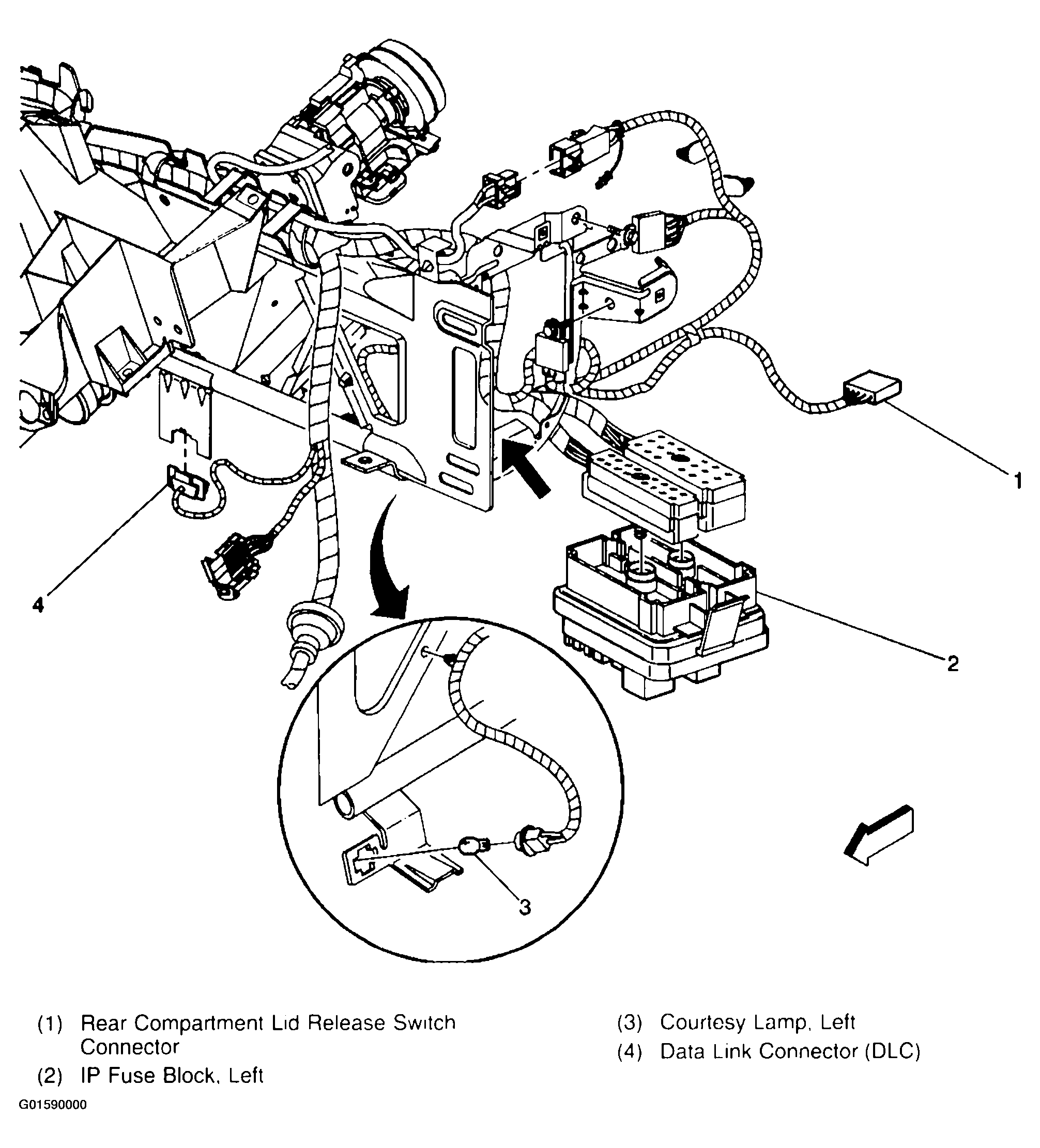

Fig 1: Component Location - Left Side Of Instrument Panel

G01590000

Courtesy of GENERAL MOTORS CORP.
