Installation Procedure

  1. Install the sunroof control module to the sunroof assembly by sliding the control module (8) towards the left side of the vehicle.
  2. Install the nylon tie straps to the control module (8).
  3. Connect the wire harness connectors to both ends of the control module (8).
  4. Install the headliner, as necessary. Refer to HEADLINER REPLACEMENT in Interior Trim.
  5. Check for proper operation of the sunroof.

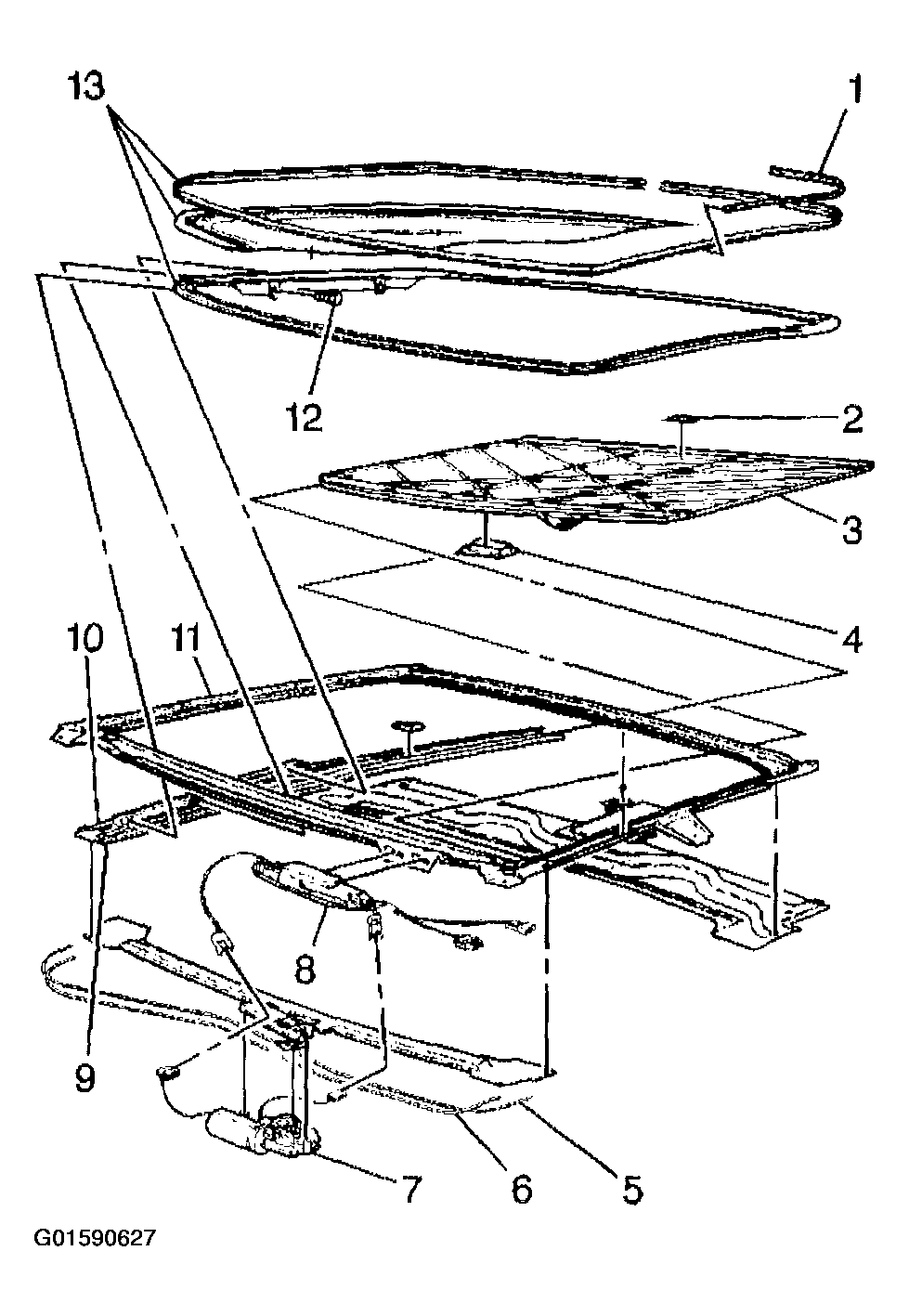

    Fig 1: Installing Sunroof Control Module To Sunroof Assembly
    G01590627Courtesy of GENERAL MOTORS CORP.
