Installation Procedure

  1. Install the battery (2) with the positive side down into the transmitter.
  2. Ensure that the seal (7) is in position. Align the two halves of the case (6, 4), and snap the two halves together.
  3. Verify the operation of the transmitter.
  4. A malfunctioning transmitter may need resynchronization. Refer to TRANSMITTER SYNCHRONIZATION  .

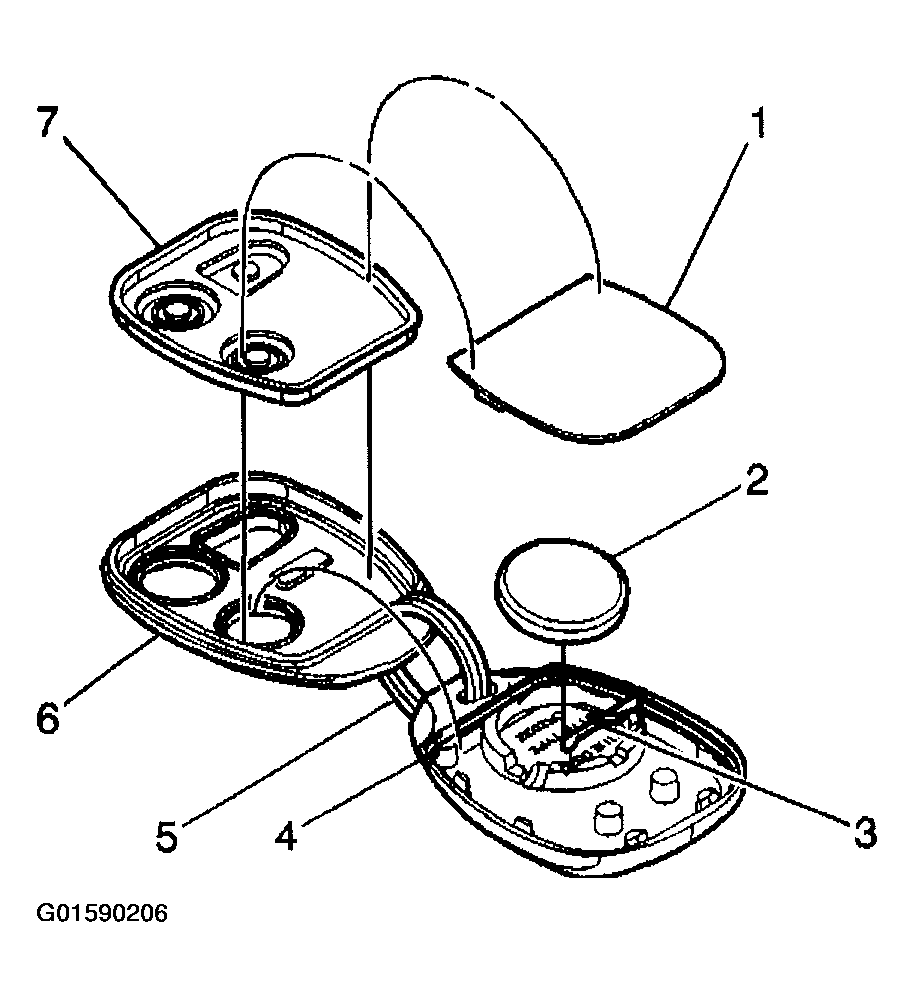

    Fig 1: Installing Battery Into Transmitter
    G01590206Courtesy of GENERAL MOTORS CORP.
