Removal Procedure

Open the hood.
Disconnect the cruise control cable tab (5) from the throttle body cam (6). Rotate the cam (6) to 1/4 open throttle in order to release the tab (5).
In order to release the cable (4), push the locating fitting inward and pull the unit free from he throttle bracket (1).

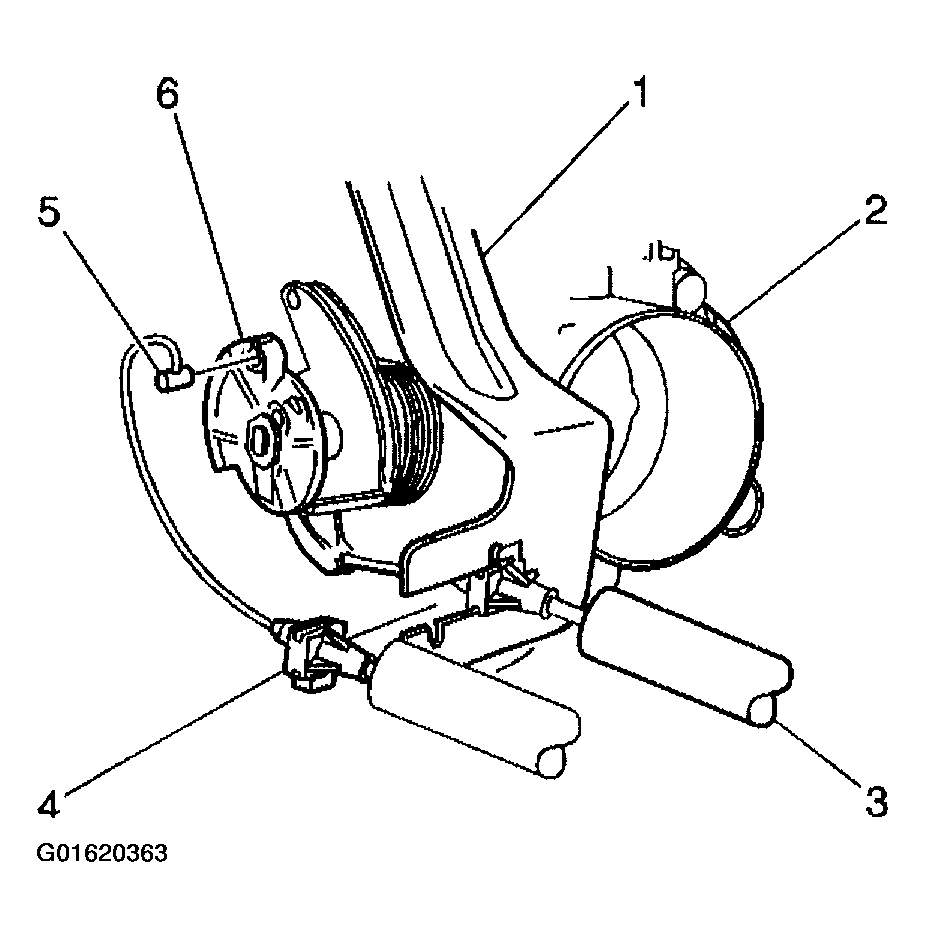

Fig 1: Disconnecting Cruise Control Cable Tab From Throttle Body Cam
Courtesy of GENERAL MOTORS CORP.
Remove the cruise control cable from the module by turning the cable assembly 1/4 turn counterclockwise.

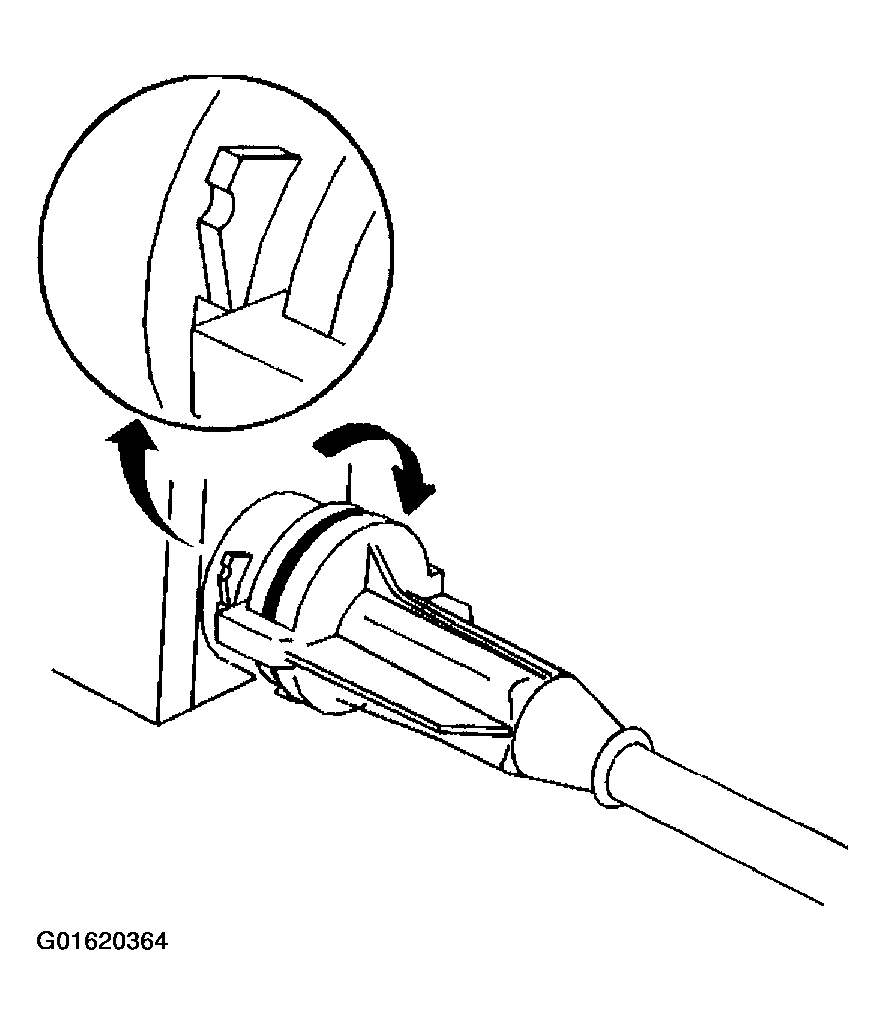

Fig 2: Turning Cable Assembly Counterclockwise For Removal
Courtesy of GENERAL MOTORS CORP.
Remove the cable from the ribbon.

Fig 3: Removing Cable From Ribbon
Courtesy of GENERAL MOTORS CORP.
Disconnect the electrical connector from the module assembly.
Unclip the hinged retaining strap from the bracket at the top of the module.
Remove the module from the mounting bracket.

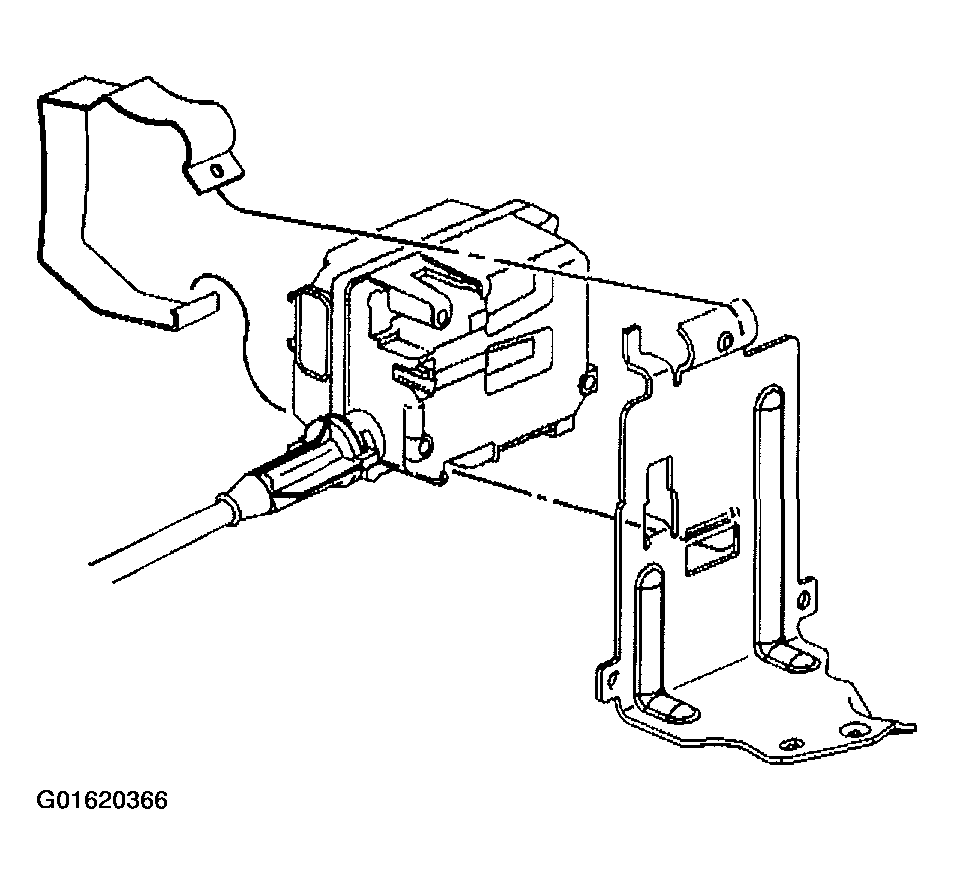

Fig 4: Removing Module From Mounting Bracket
Courtesy of GENERAL MOTORS CORP.
