Installation Procedure

Install the module assembly to the mounting bracket.
Connect the electrical connector to the module.

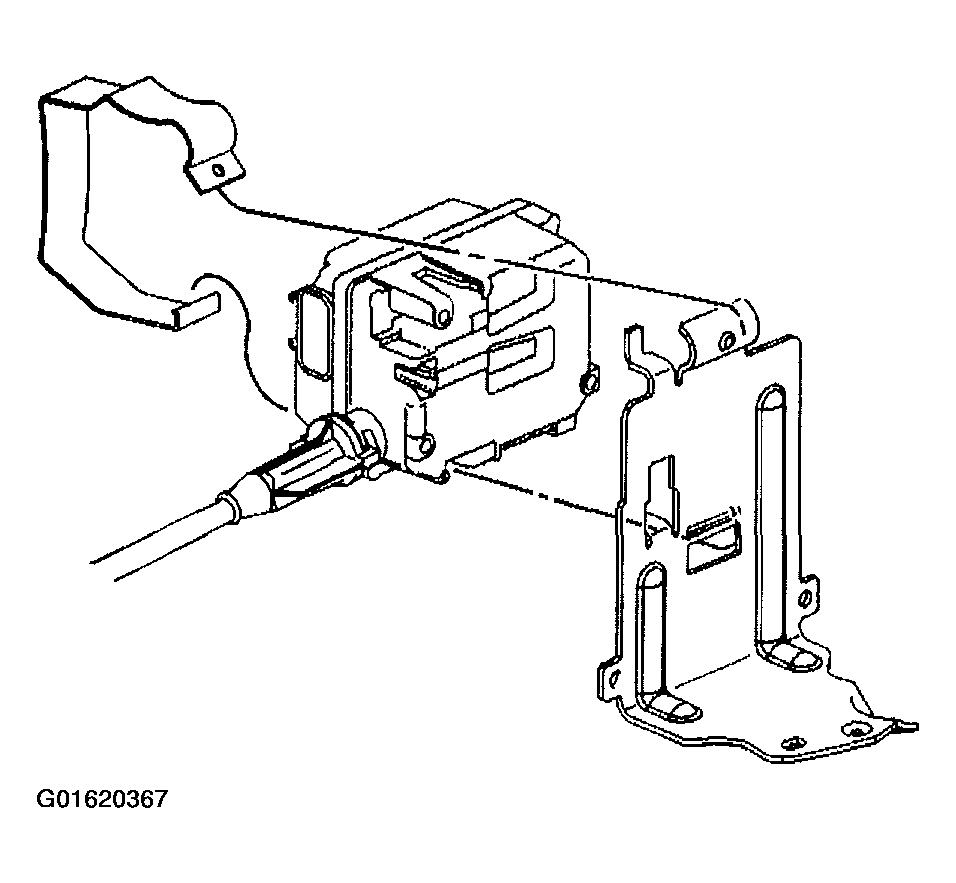

Fig 1: Installing Module Assembly To Mounting Bracket
Courtesy of GENERAL MOTORS CORP.
Connect the cruise control cable to the module ribbon.

Fig 2: Connecting Cruise Control Cable To Module Ribbon
Courtesy of GENERAL MOTORS CORP.
Install the cruise control cable to the module assembly by turning the cable assembly 1/4 turn clockwise.

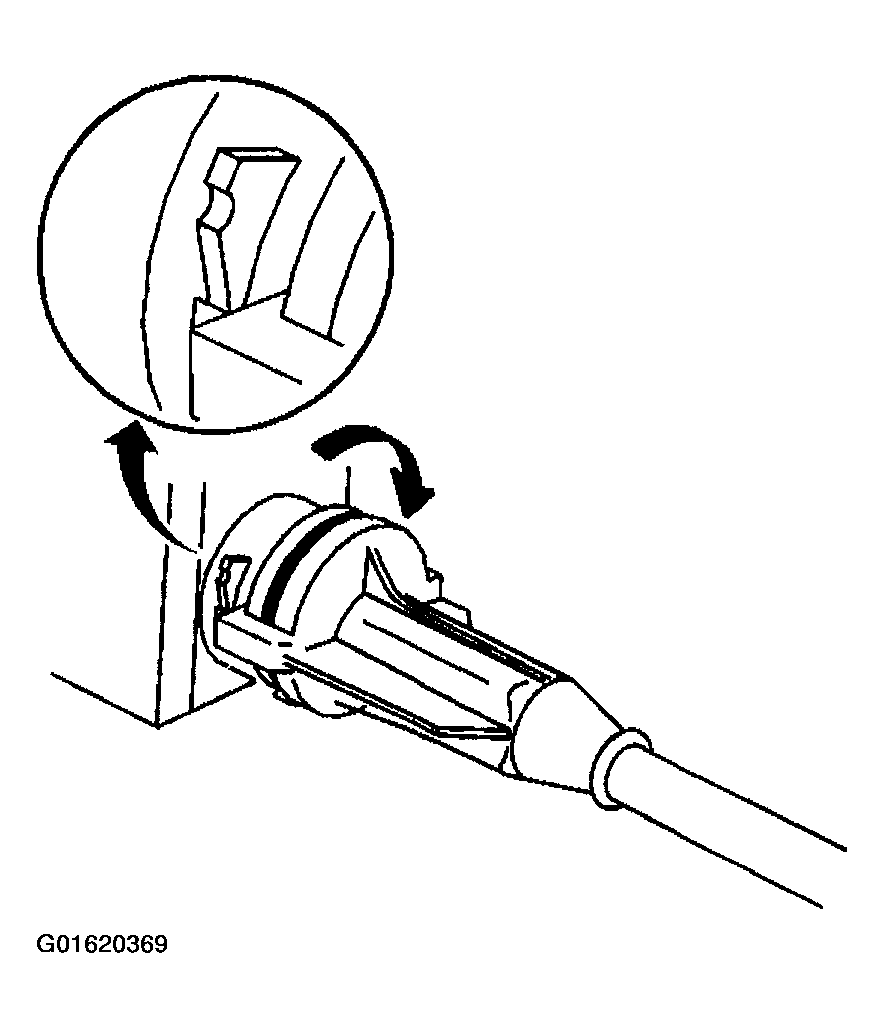

Fig 3: Turning Cable Assembly Clockwise For Installation
Courtesy of GENERAL MOTORS CORP.
Install the cruise control cable tab (5) to the throttle body cam (6).
Align the cruise control cable fitting to the throttle body bracket (1). Snap the fitting into place. Ensure that the fitting is retained.
Close the hood.
Perform A Diagnostic System Check. Refer to DIAGNOSTIC SYSTEM CHECK - CRUISE CONTROL .

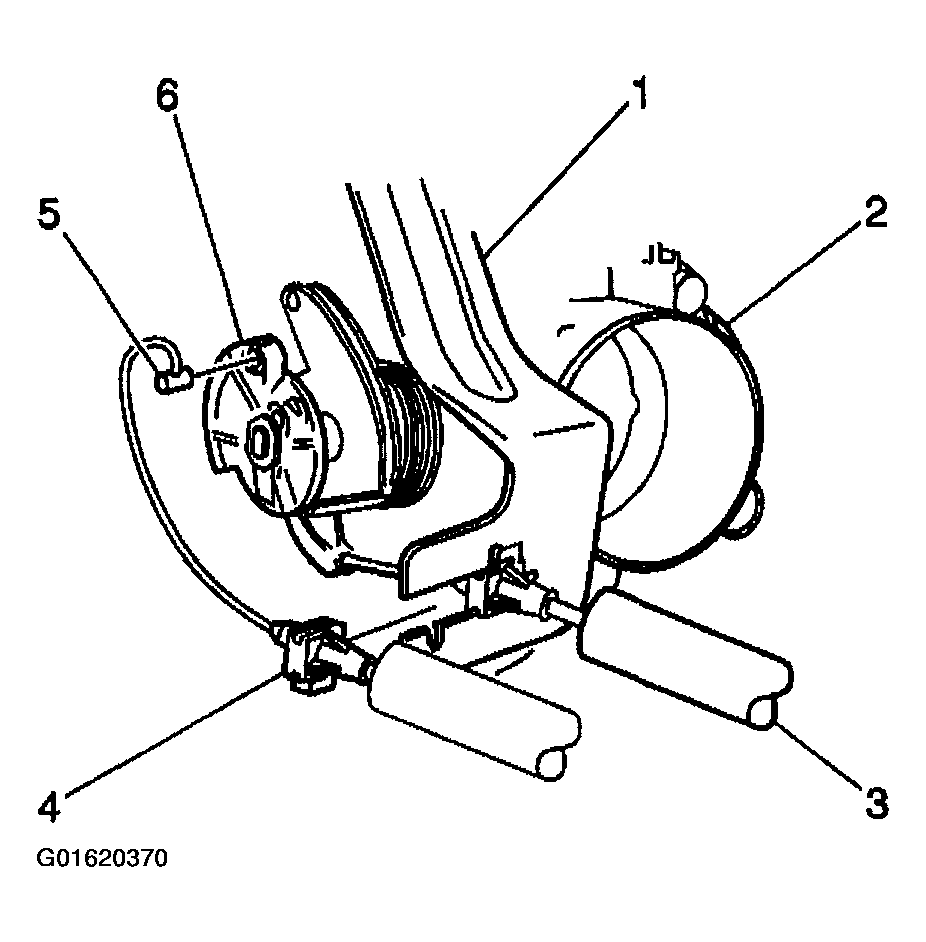

Fig 4: Installing Cruise Control Cable Tab To Throttle Body Cam
Courtesy of GENERAL MOTORS CORP.
