Flywheel/Flex Plate Torque

Tighten the bolts to 15 N.m (11 lb ft). Use the Flywheel holder to rotate the bolts an additional 50 degrees.

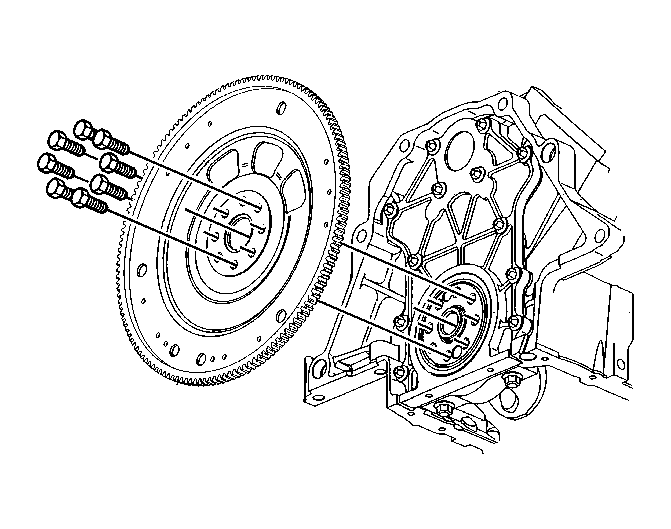

Fig 1: View Of Engine Flywheel & Bolts
GM153602Courtesy of GENERAL MOTORS CORP.
