Inline Connector End View C308

Inline Connector C308

GM493694Courtesy of GENERAL MOTORS CORP.

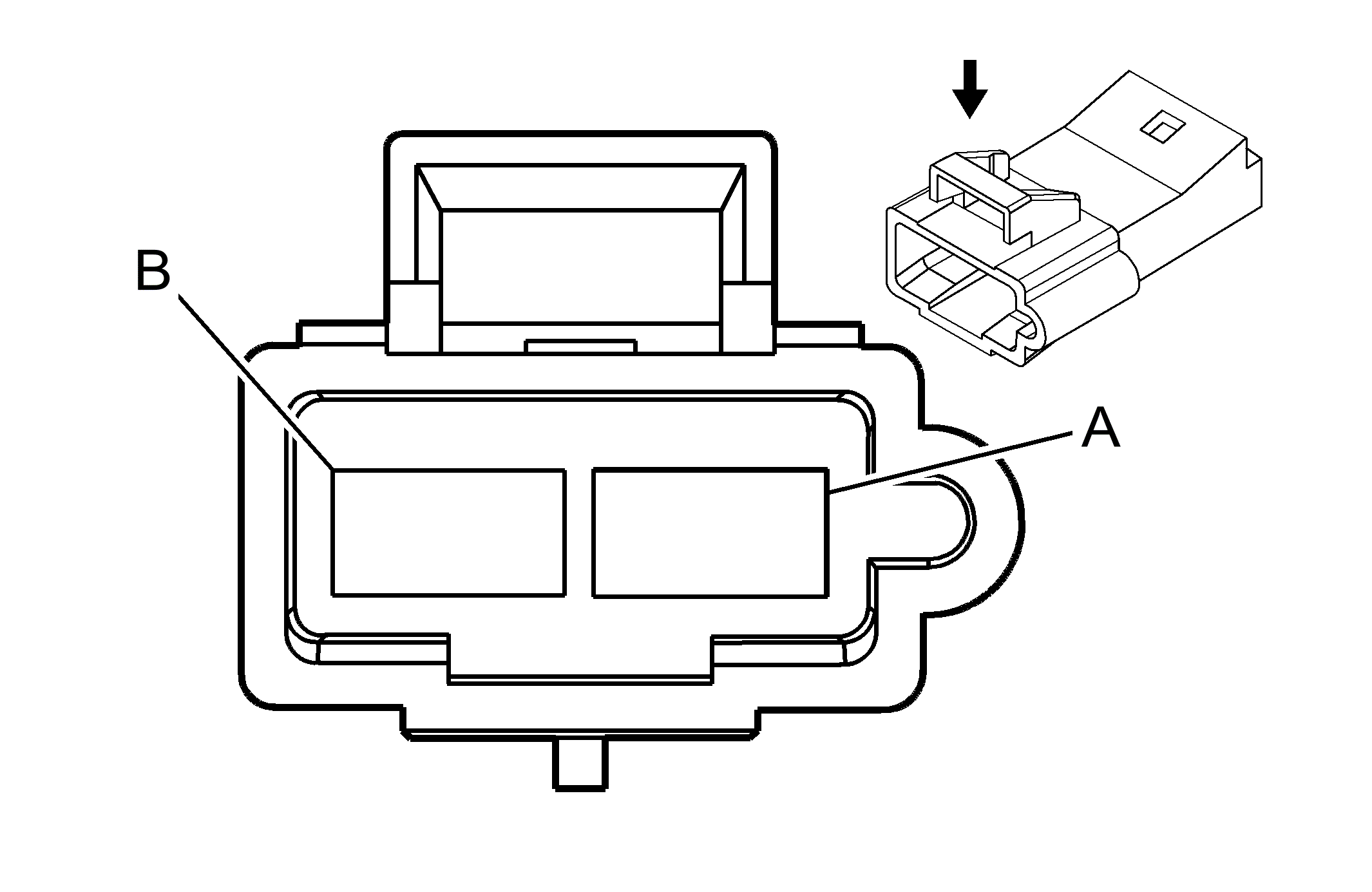

GM768090Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12129939
  • 2-Way F Metri-Pack 630 Series (BLK)
 Connector Part Information
  • 12129938
  • 2-Way M Metri-Pack 630 Series (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A RED 302 Battery Positive Voltage A RED 302 Battery Positive Voltage
B RED 702 Battery Positive Voltage B RED 702 Battery Positive Voltage
