Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the hood.
  2. Remove the side marker lamp. Refer to MARKER LAMP REPLACEMENT - SIDE (RPO T90) or MARKER LAMP REPLACEMENT - SIDE (RPO X88/Z88) .
  3. Remove the park/turn signal lamp. Refer to PARK/TURN SIGNAL LAMP REPLACEMENT (RPO X88/Z8 or PARK/TURN SIGNAL LAMP REPLACEMENT (RPOT90) .
  4. Remove the bolts (4) that retain the grille (3) to the radiator support.
  5. Remove the retainers at the top of the grille (3) from the radiator support.
  6. Lift the grille (3) in order to remove the locating pins (5) on the bottom of the radiator grille (3) from the radiator support.
  7. Remove the grille (3) from the vehicle.

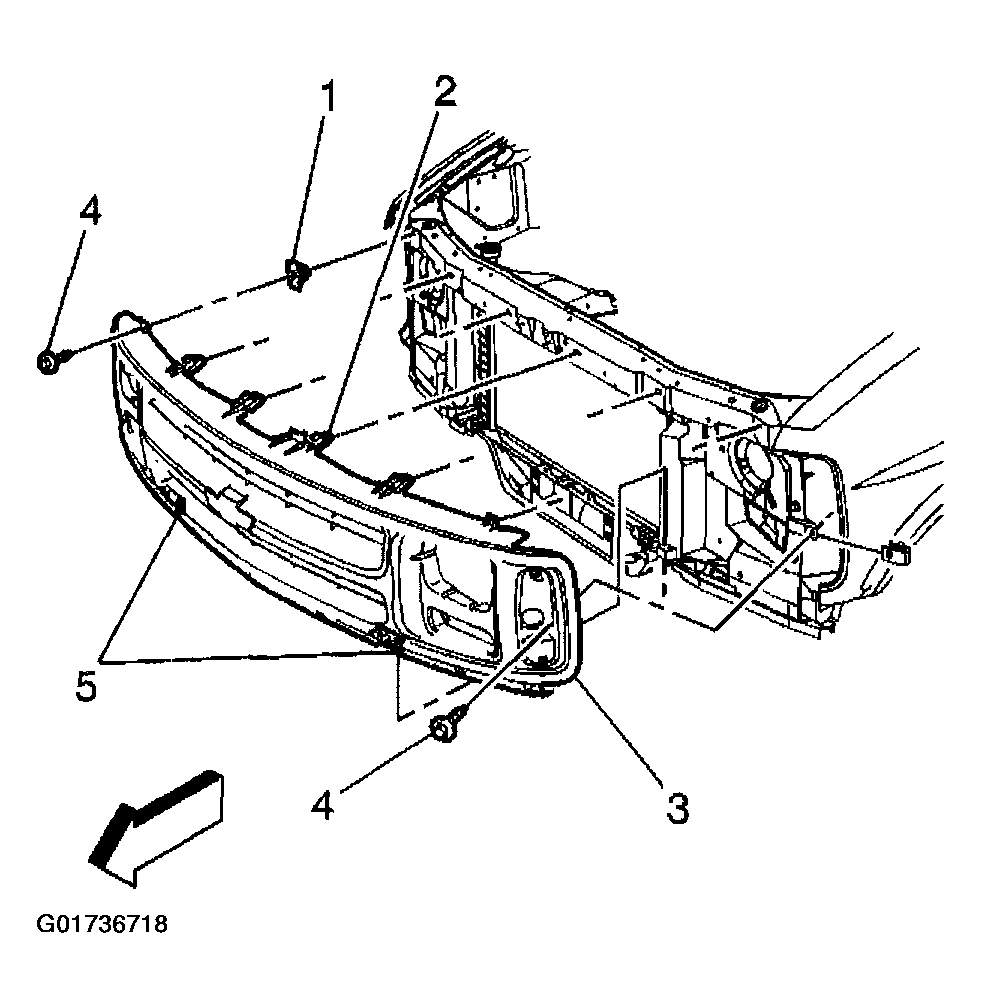

    Fig 1: Removing Grille Components
    G01736718Courtesy of GENERAL MOTORS CORP.
