Component Locations
Component Locations
COMPONENT LOCATIONS
Component
Location
Cooling Fans
(1)
Underhood Behind Radiator
Cooling Fan Fuses & Relays
(2)
In Bottom Underhood Fuse Block At Front Passengers Side
(1)
See
Fig 1
.
(2)
See
Fig 2
and
Fig 3
.

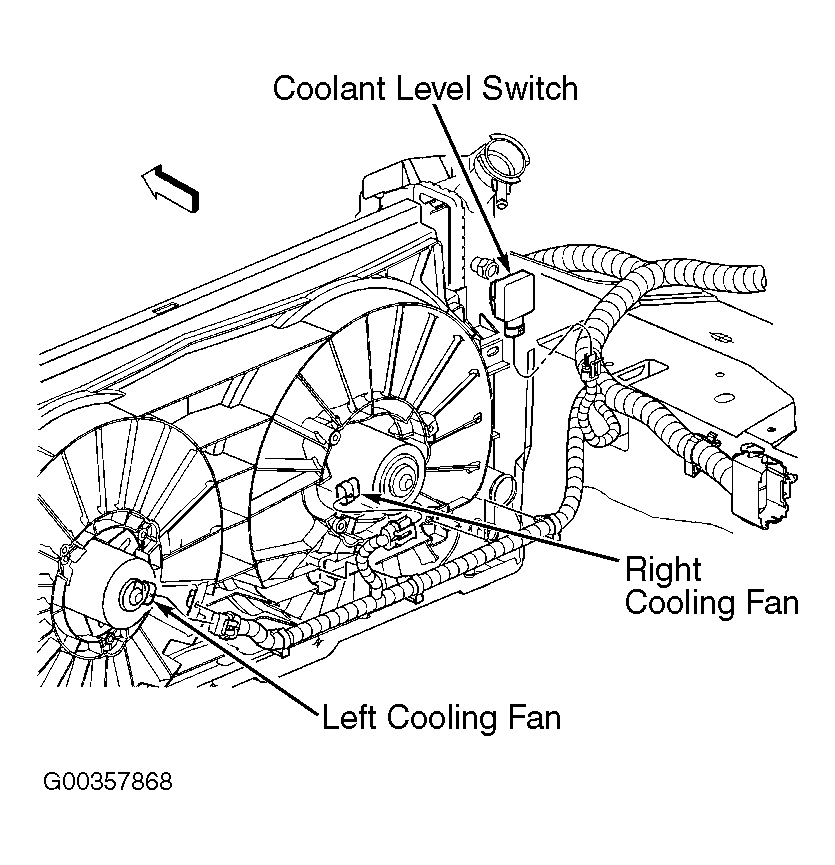

Fig 1: Locating Cooling Fans & Components
Courtesy of GENERAL MOTORS CORP.

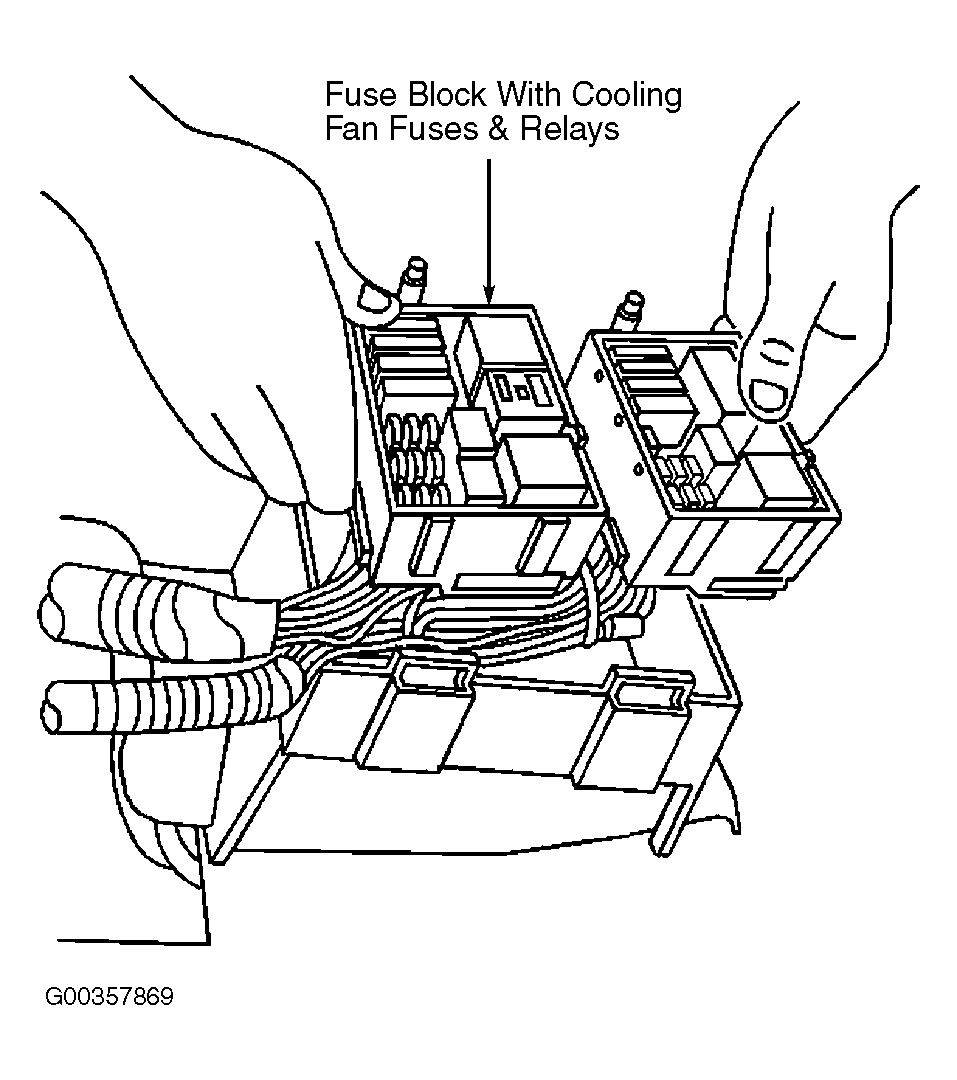

Fig 2: Locating Cooling Fan Fuses & Relays
Courtesy of GENERAL MOTORS CORP.
Fig 3: Identifying Cooling Fan Fuses & Relays
Courtesy of GENERAL MOTORS CORP.
