Door Lock/Indicator Schematics

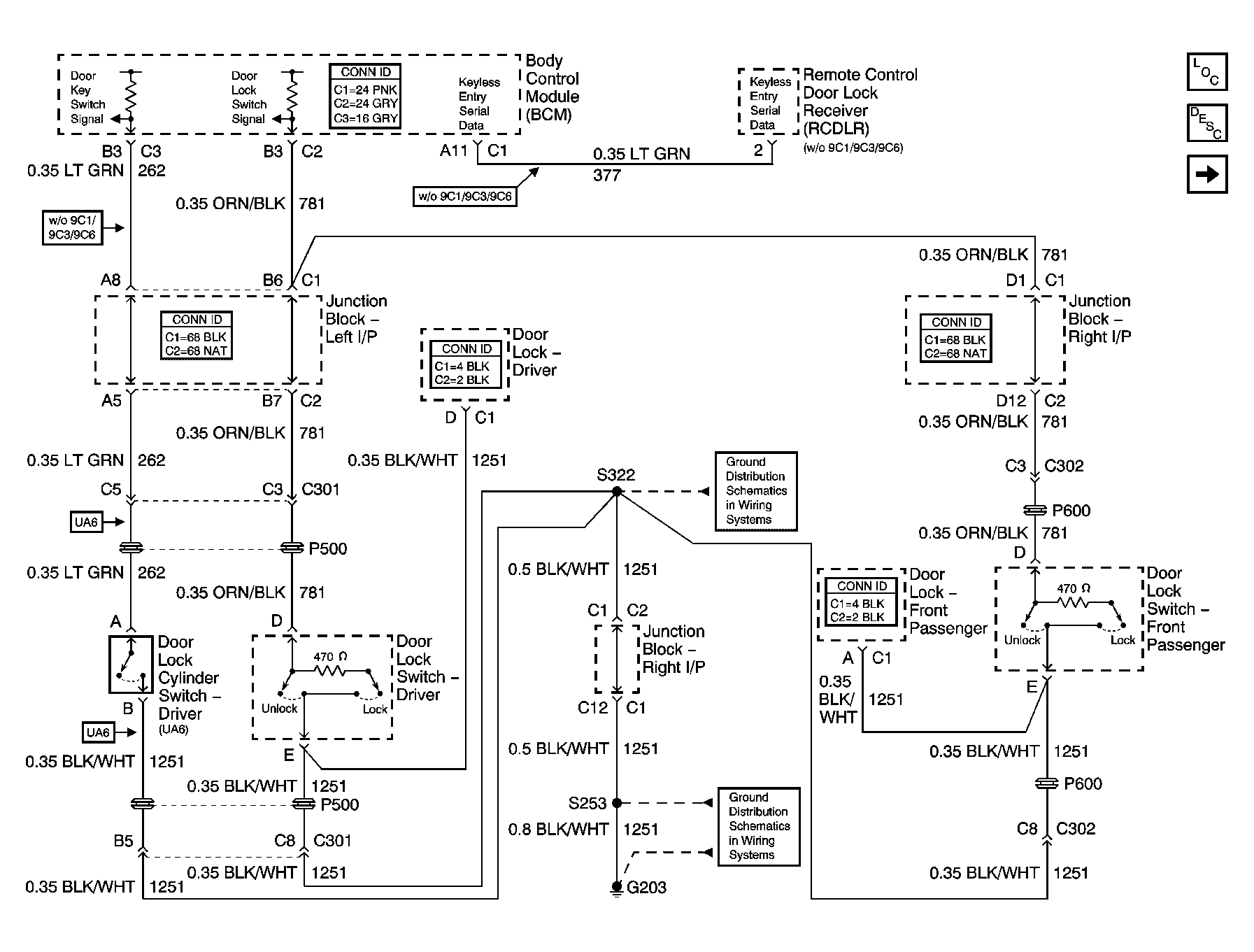

Fig 1: Lock Switches Schematic
GM885147Courtesy of GENERAL MOTORS CORP.

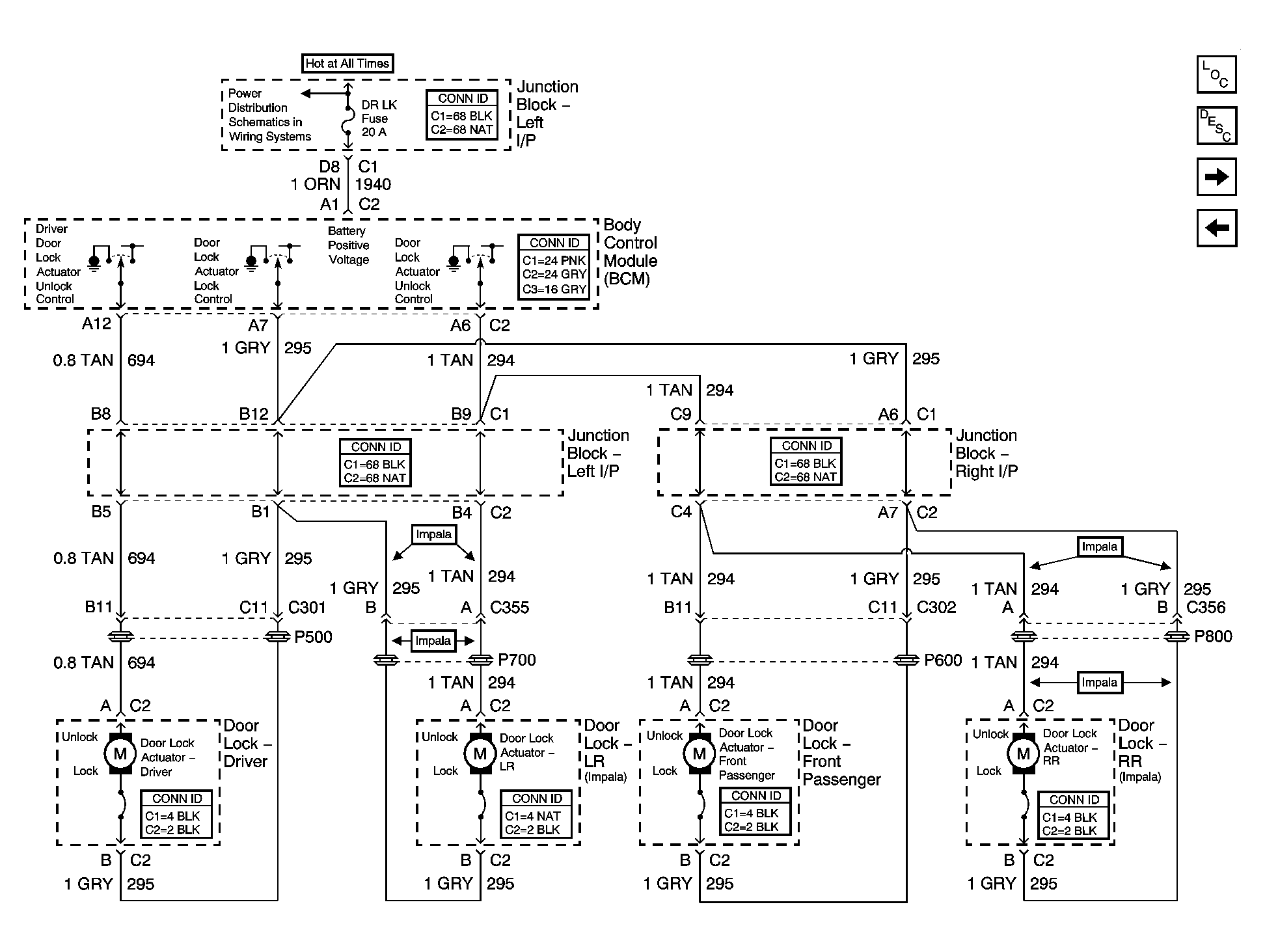

Fig 2: Door Lock Actuators Schematic
GM789087Courtesy of GENERAL MOTORS CORP.

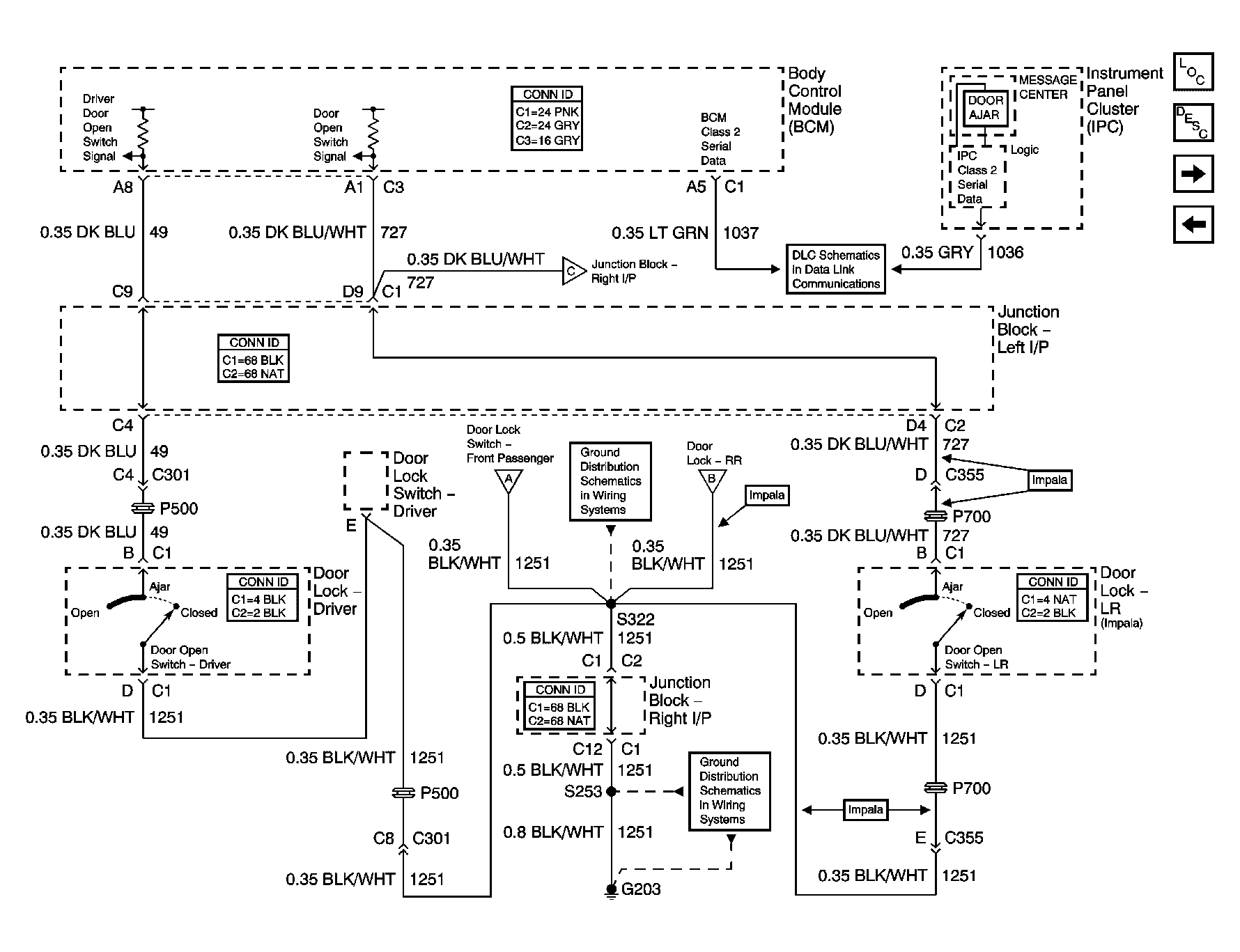

Fig 3: Door Open Switches Schematic (Left)
GM789088Courtesy of GENERAL MOTORS CORP.
Fig 4: Door Open Switches Schematic (Right)
GM814398Courtesy of GENERAL MOTORS CORP.
