Installation Procedure

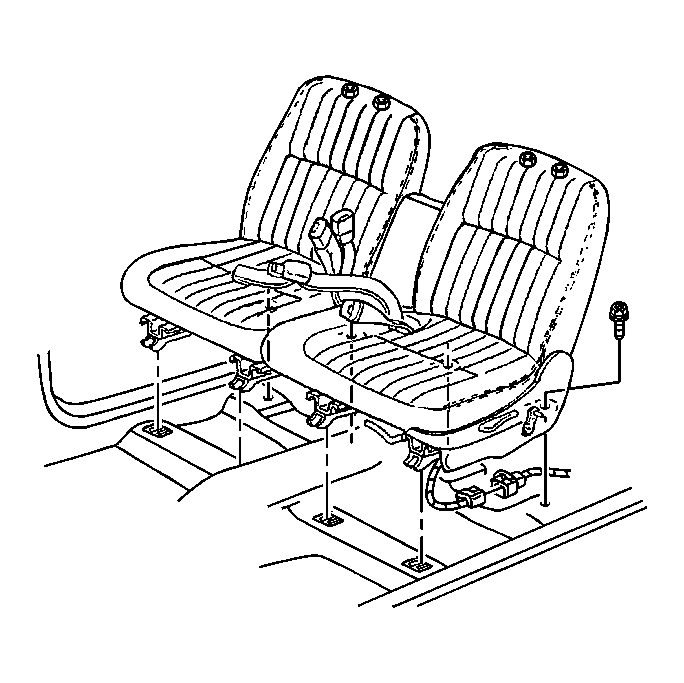

    Fig 1: Split Bench Front Seat & Components
    GM381863Courtesy of GENERAL MOTORS CORP.
  1. Position the front seat into the vehicle.
  2. Tip the front seat forward to engage the front hook attachments.
  3. Connect the front seat electrical connectors.
    4. NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the bolts that secure the front seat adjuster to the floor pan.

    Tighten:  Tighten the bolts to 42 N.m (31 lb ft).

  5. Reposition the front seat to the full back position.
  6. Install the front seat track adjuster covers. Refer to Seat Adjuster Track Cover Replacement - Front .
    7. Fig 2: Identifying Seat Belt Anchor Plate Nut
    GM370568Courtesy of GENERAL MOTORS CORP.
  7. Install the seat belt nut to the seat stud.

    Tighten:  Tighten the nut to 42 N.m (31 lb ft).

  8. Install the head restraint. Refer to Head Restraint Replacement - Front Seat .
  9. Enable the SIR system. Refer to SIR Disabling and Enabling Zone 3 in SIR.
  10. Position the seat to the original position.
