Installation Procedure

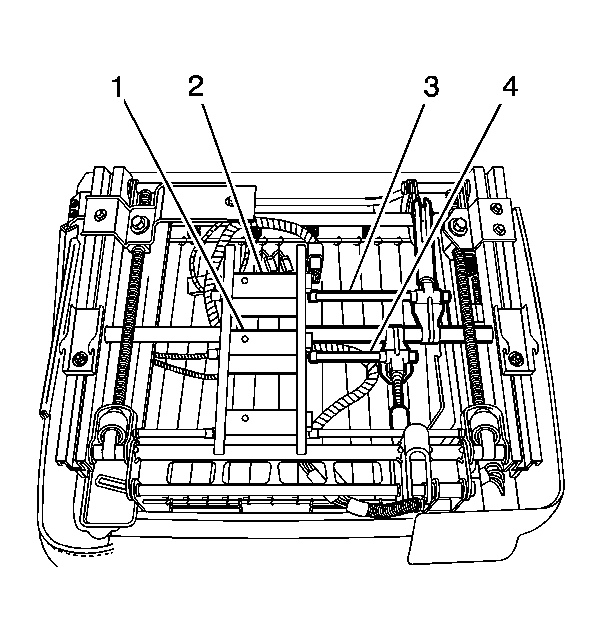

    Fig 1: Power Seat Components
    GM964716Courtesy of GENERAL MOTORS CORP.
  1. Insert the end of the replacement cable (3,4) into the drive screw.
  2. Bend the cable and insert the other end into the motor (1,2).
  3. If required, repeat the above procedure for the second drive cable.
    4. IMPORTANT: Examine all 4 drive cables to ensure that the cables are straight.
  4. Connect the electrical connector to the seat wire harness and test the seat for proper operation.
    5. Fig 2: View Of Front Seat Bolts
    GM305124Courtesy of GENERAL MOTORS CORP.
  5. Tip the seat forward and engage the seat hook attachments to the floor pan.
    6. NOTE: Refer to Fastener Notice in Cautions and Notices.
  6. Install the bolts that secure the adjuster to the floor pan.

    Tighten:  Tighten the bolts to 42 N.m (31 lb ft).

  7. Install the head restraint. Refer to Head Restraint Replacement - Front Seat .
  8. Enable the SIR system. Refer to SIR Disabling and Enabling Zone 3 in SIR.
