Body Control System Schematics

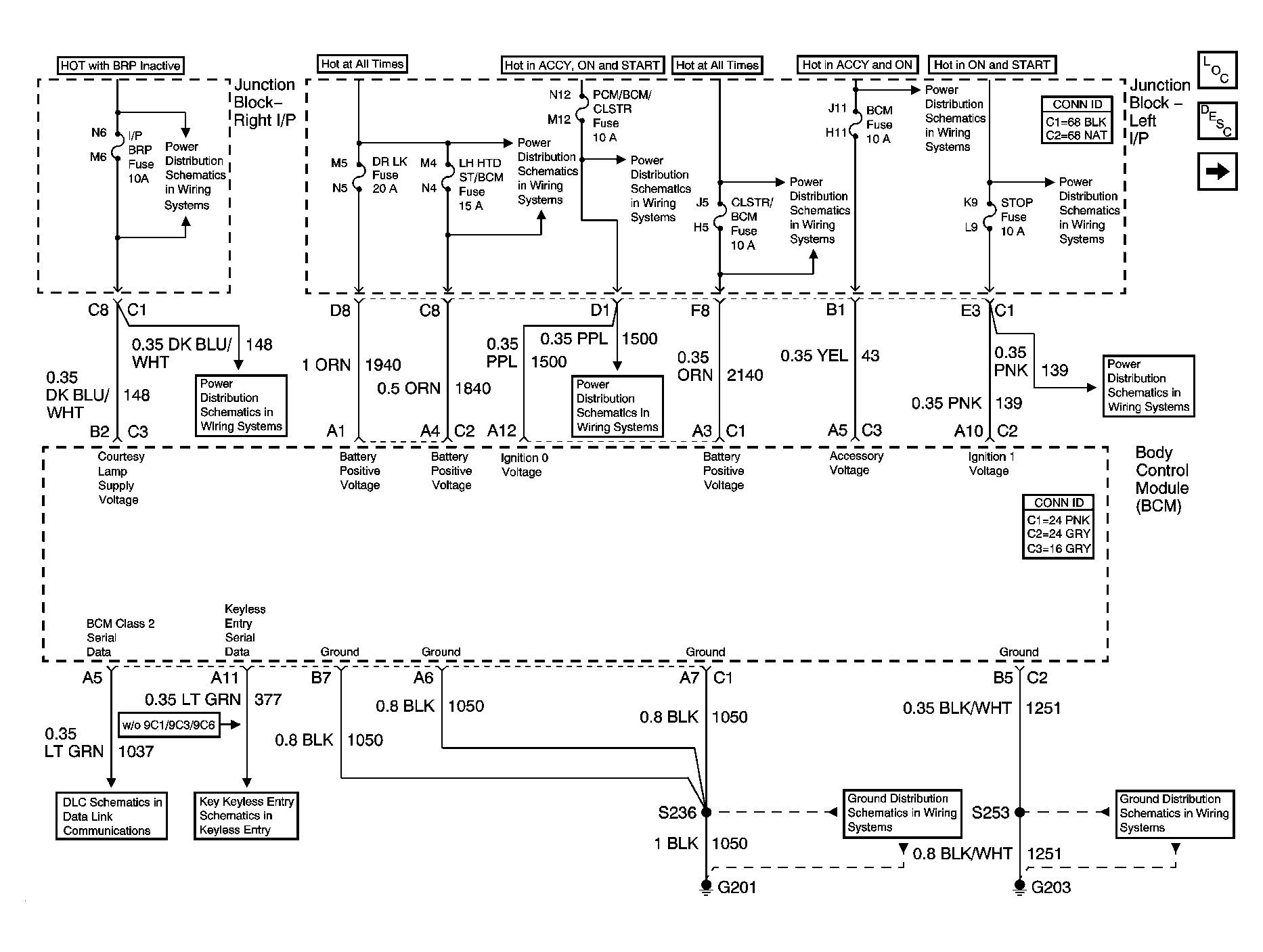

Fig 1: Grounds, Power & References To DLC & Keyless Entry Schematic
GM676229Courtesy of GENERAL MOTORS CORP.

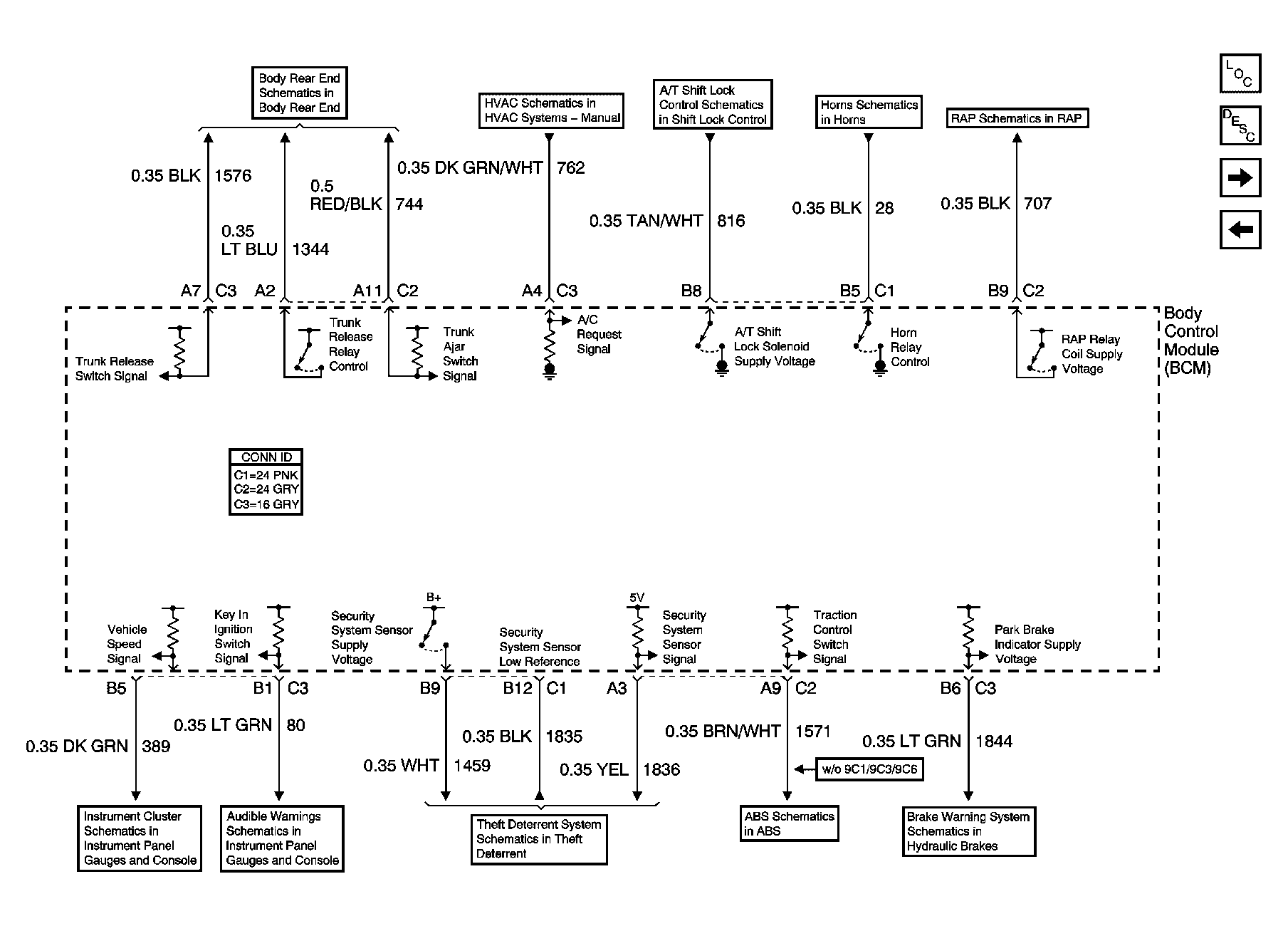

Fig 2: References To ABS, Audible Warnings, Body Rear End, Horns, HVAC, Hydraulic Brakes, I/P, RAP, Shift Lock & Theft Deterrent Schematic
GM676230Courtesy of GENERAL MOTORS CORP.

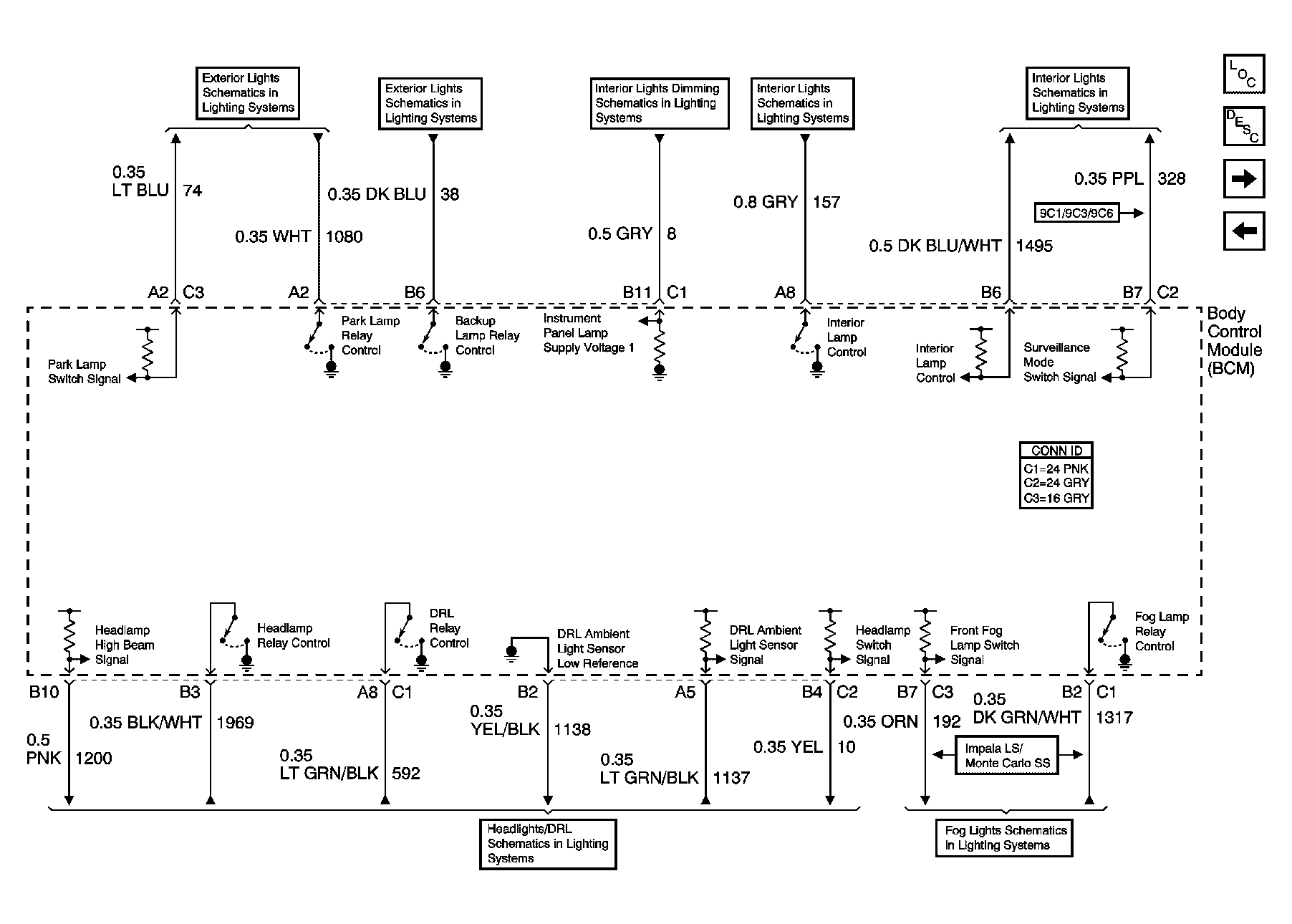

Fig 3: References To Lighting Schematic
GM808818Courtesy of GENERAL MOTORS CORP.
Fig 4: References To Doors, Engine Electrical & Lighting Schematic
GM808819Courtesy of GENERAL MOTORS CORP.
