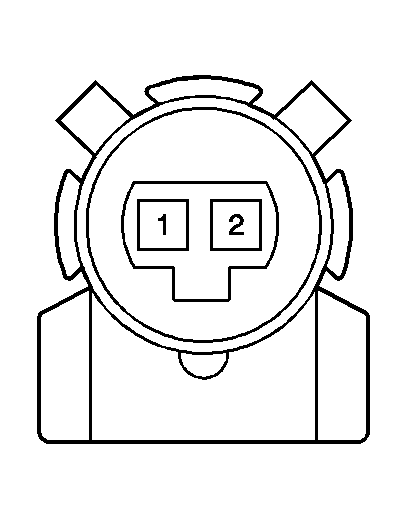

Inflatable Restraint I/P Module Connector End View, C2

Inflatable Restraint I/P Module, C2

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		- 2-Way F (NAT)
Pin	Wire Color	Circuit No.	Function
1	PPL	3026	I/P Module-Stage 2-High Control
2	GRY	3027	I/P Module-Stage 2-Low Control
