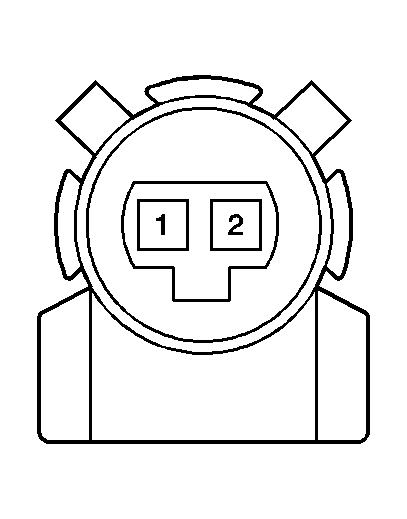

Inflatable Restraint I/P Module Connector End View, C1

Inflatable Restraint I/P Module, C1

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		- 2-Way F (NAT)
Pin	Wire Color	Circuit No.	Function
1	ORN	3024	I/P Module-Stage 1-High Control
2	YEL	3025	I/P Module-Stage 1-Low Control
