Installation Procedure

  1. Using J 25033-C  install the power steering pump pulley onto the power steering pump.

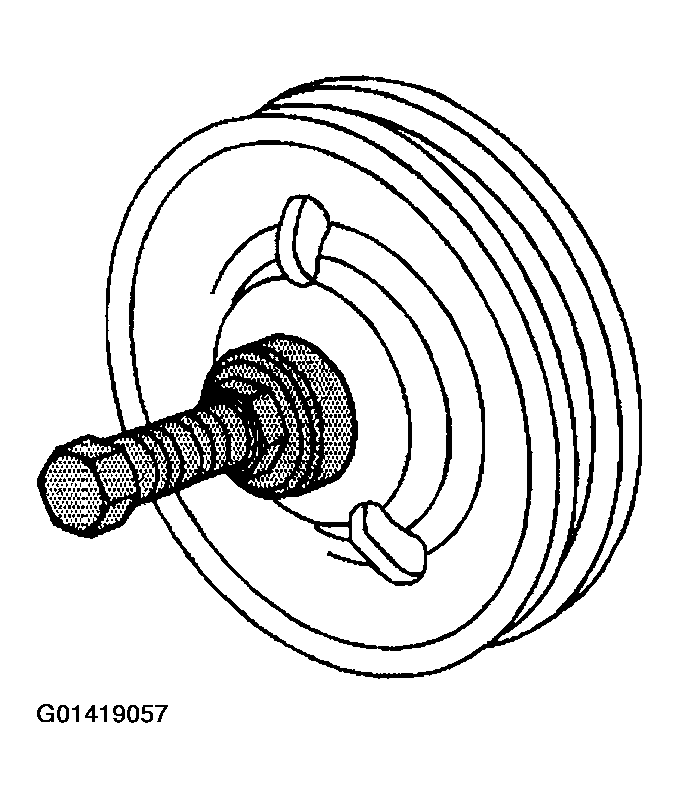

    Fig 1: Installing Power Steering Pump Pulley
    G01419057Courtesy of GENERAL MOTORS CORP.

    Important:  The pulley must be installed onto pump shaft so that the pulley hub is flush with the pump shaft.

  2. Install the accessory drive belt. Refer to DRIVE BELT REPLACEMENT--ACCESSORY in Engine Mechanical-5.7L.
  3. Install the Brake Pressure Modulator

    Valve (BPMV) bracket. Refer to BRAKE PRESSURE MODULATOR VALVE (BPMV) BRACKET REPLACEMENT in Antilock Brake System.

  4. Install the Brake Pressure Modulator

    Valve (BPMV). Refer to BRAKE PRESSURE MODULATOR VALVE (BPMV) REPLACEMENT in Antilock Brake System.
