In/Out Adjustment Procedure

Important:  Loosen one set of hinge bolts at a time and move the hinge not the door be sure to retighten the hinge bolts before loosing and adjusting the other hinge.

1. Loosen the upper hinge to door bolts.
2. Reposition the hinge outward to adjust the door inward or inward to adjust the door outward.
   NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
3. Tighten the upper hinge to door bolts.

   Tighten

   Tighten the door hinge to door bolts to 30 N.m (22 lb in).

4. Loosen the lower hinge to door bolts.
5. Reposition the hinge.
6. Tighten the lower hinge to door bolts.

   Tighten

   Tighten the door hinge to door bolts to 30 N.m (22 lb in).

7. Repeat procedure for additional adjustment if necessary.

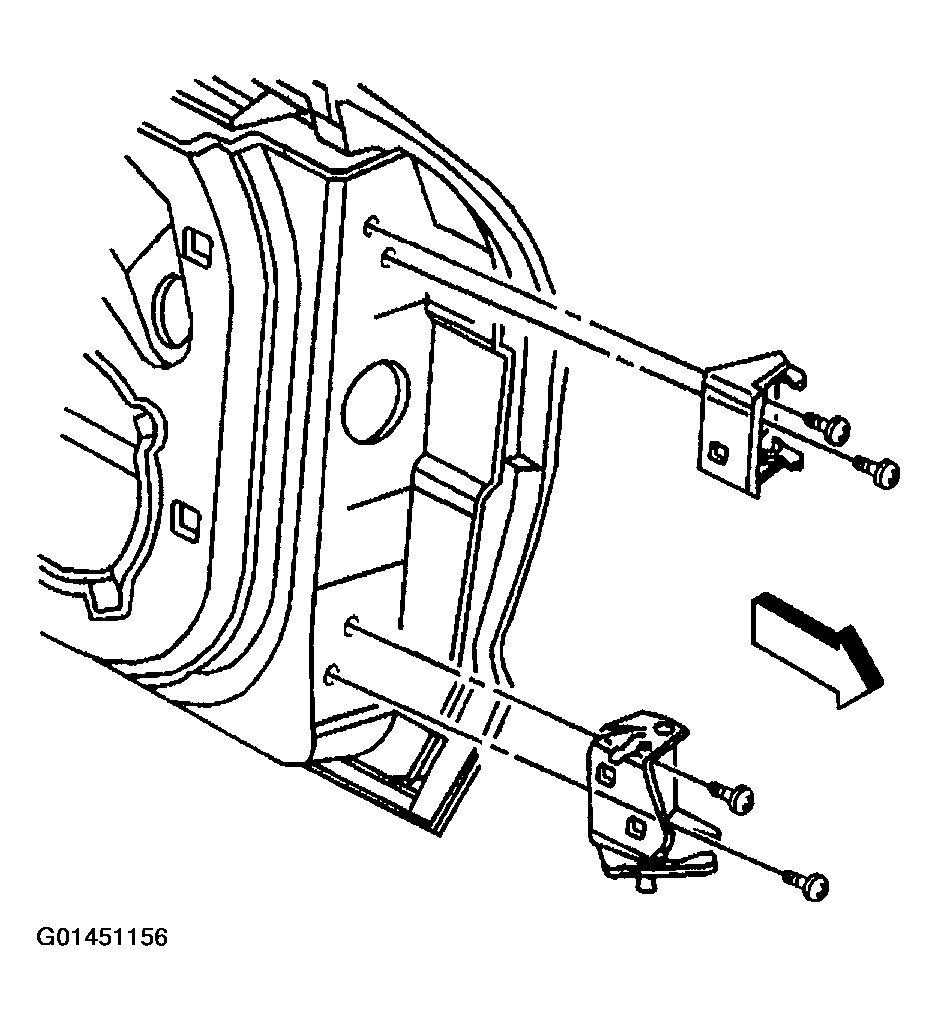

   Fig 1: Removing Upper/Lower Hinge From Door

   Courtesy of GENERAL MOTORS CORP.
