Removal Procedure

  1. Remove the power steering fluid reservoir. Refer to REMOTE POWER STEERING FLUID RESERVOIR REPLACEMENT  .
  2. Remove the bolts (4) from the power steering fluid reservoir bracket (5).

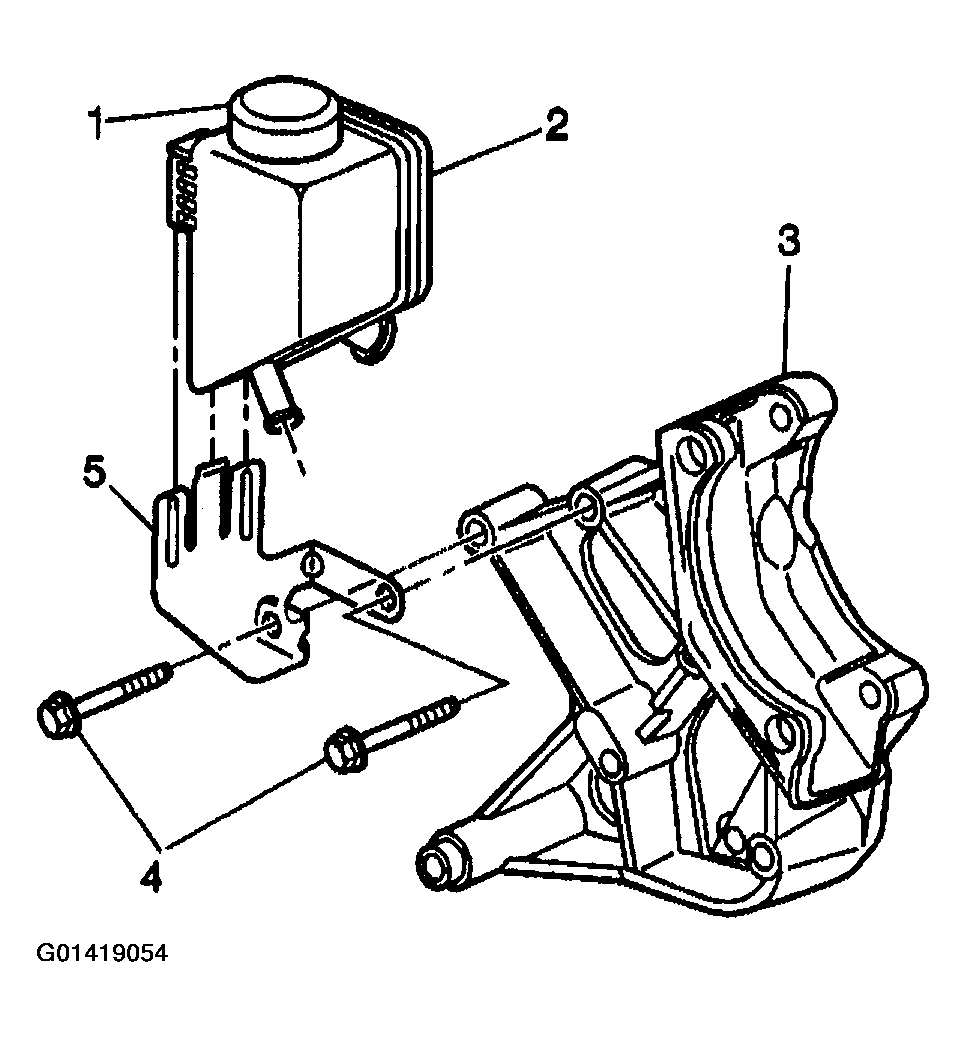

    Fig 1: Removing Power Steering Fluid Reservoir Bracket
    G01419054Courtesy of GENERAL MOTORS CORP.
  3. Remove the power steering fluid reservoir bracket (5) from the vehicle.
