Removal Procedure

  1. Remove the Brake Pressure Modulator

    Valve (BPMV). Refer to BRAKE PRESSURE MODULATOR VALVE (BPMV) REPLACEMENT in Antilock Brake System.

  2. Remove the Brake Pressure Modulator

    Valve (BPMV) bracket. Refer to BRAKE PRESSURE MODULATOR VALVE (BPMV) BRACKET REPLACEMENT in Antilock Brake System.

  3. Remove the power steering fluid reservoir. Refer to REMOTE POWER STEERING FLUID RESERVOIR REPLACEMENT  .
  4. Remove the power steering pump pulley. Refer to POWER STEERING PULLEY REPLACEMENT  .
  5. Remove the power steering reservoir outlet pipe/hose from the power steering pump. Refer to POWER STEERING RESERVOIR OUTLET PIPE/HOSE REPLACEMENT  .
  6. Remove the power steering pressure hose from the power steering pump. Refer to POWER STEERING PRESSURE HOSE REPLACEMENT  .
  7. Remove the power steering pump mounting bolts (3) from the power steering pump (2).

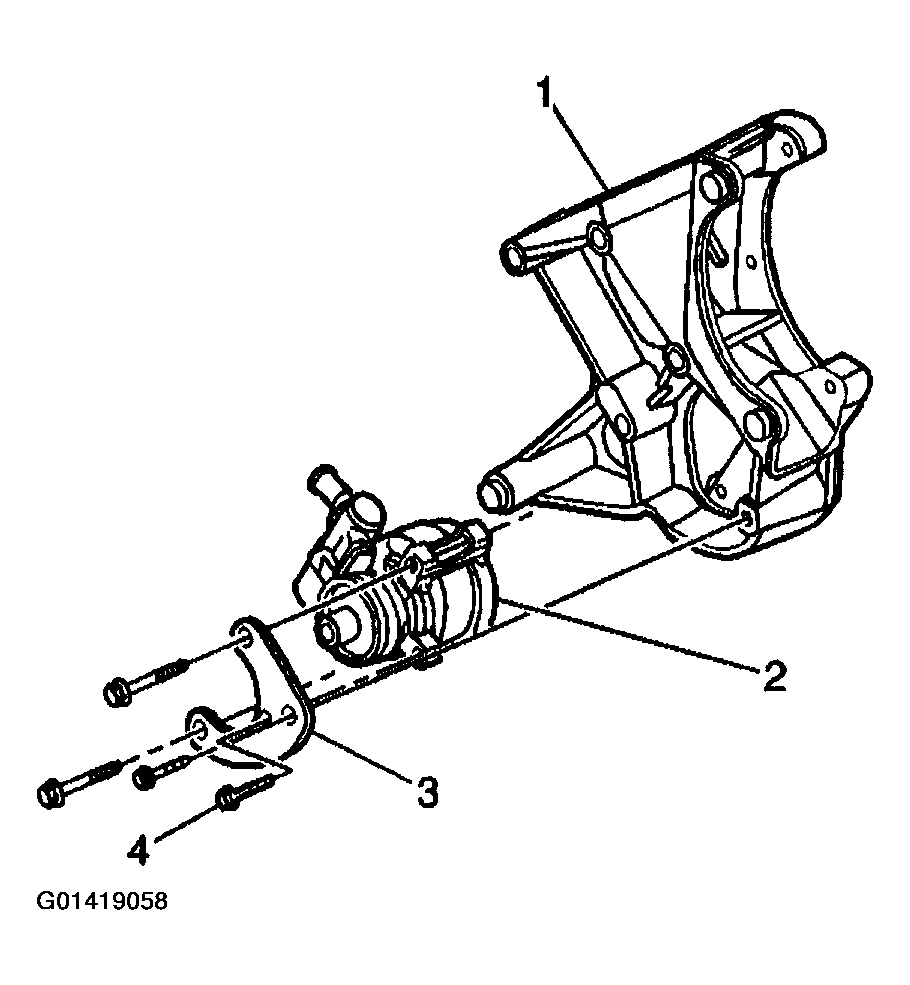

    Fig 1: Removing Power Steering Pump
    G01419058Courtesy of GENERAL MOTORS CORP.
  8. Remove the following components from the power steering pump rear bracket (1):
    • The power steering pump front bracket (3).
    • The power steering pump (2).
