Removal Procedure

  1. Remove the Brake Pressure Modulator Valve (BPMV). Refer to BRAKE PRESSURE MODULATOR VALVE (BPMV) REPLACEMENT in Antilock Brake System.
  2. Remove the Brake Pressure Modulator

    Valve (BPMV) bracket. Refer to BRAKE PRESSURE MODULATOR VALVE (BPMV) BRACKET REPLACEMENT in Antilock Brake System.

  3. Remove the accessory drive belt. Refer to DRIVE BELT REPLACEMENT--ACCESSORY in Engine Mechanical-5.7L.

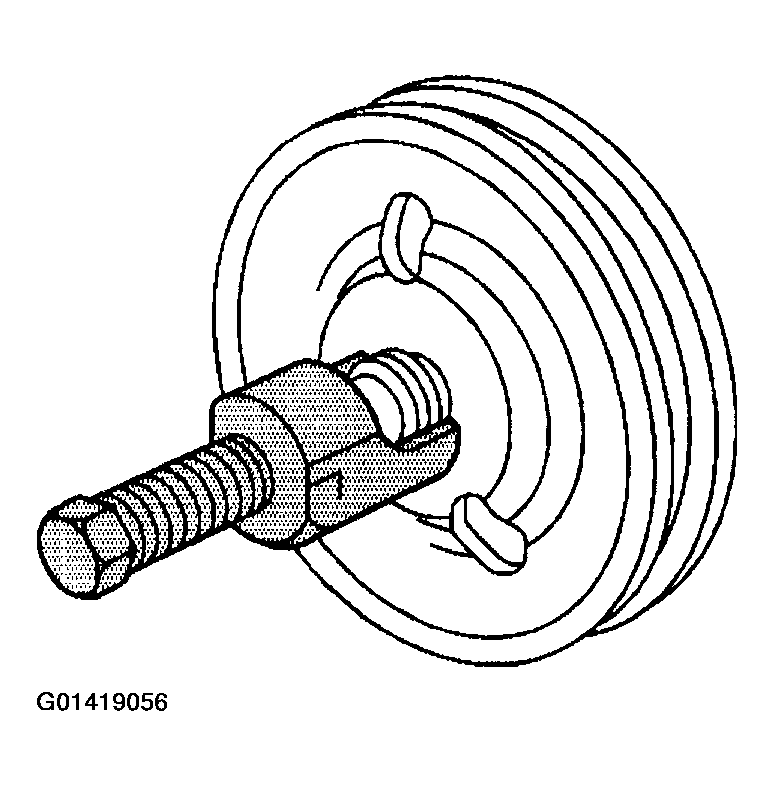

  4. Install the J 25034-C  on the power steering pump pulley and remove the pulley.
    Fig 1: Removing Pulley
    G01419056Courtesy of GENERAL MOTORS CORP.
