Power Steering Gear Disassembled View (Magnasteer)

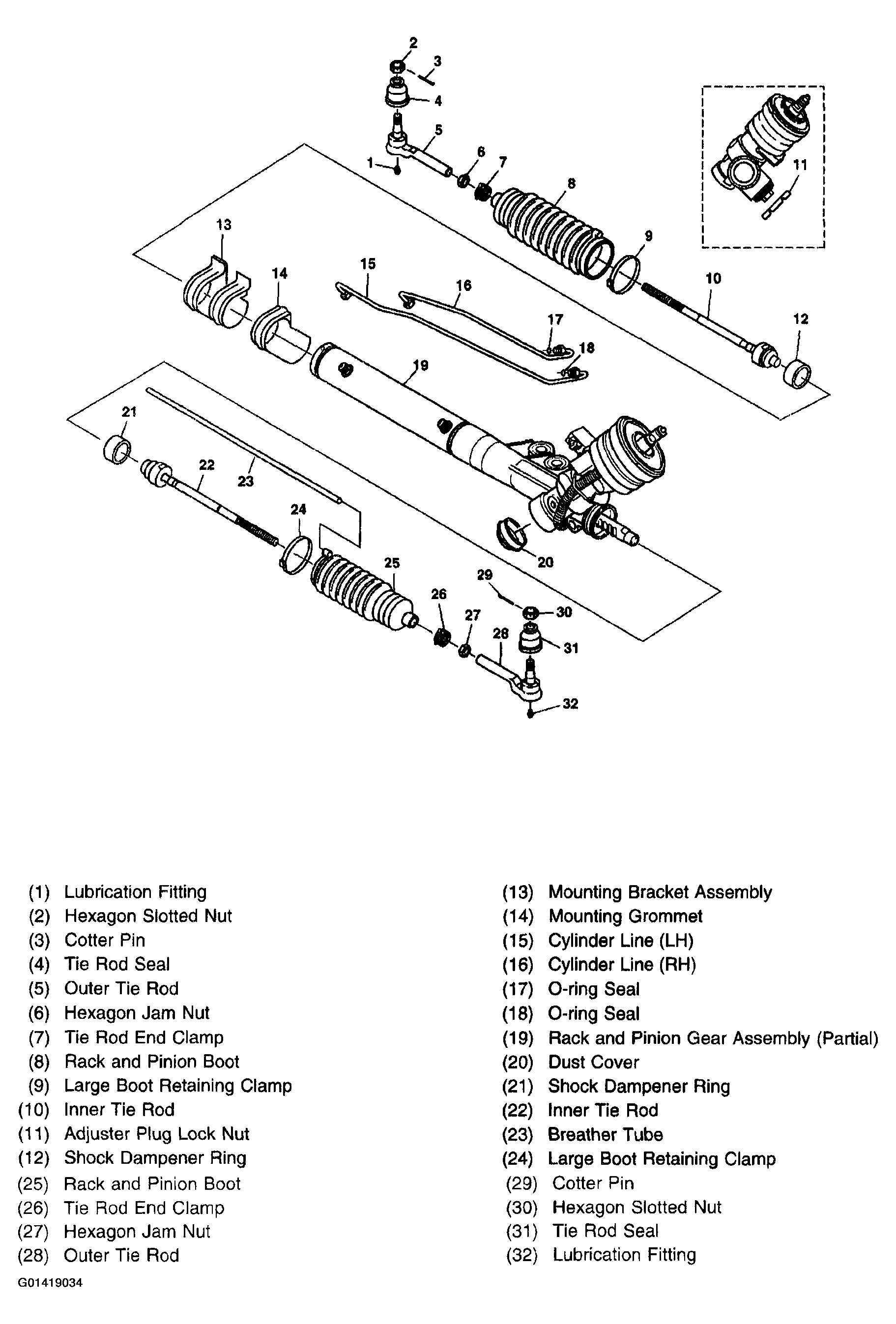

Fig 1: Exploded View Of Power Steering Gear Components

G01419034

Courtesy of GENERAL MOTORS CORP.
