Removal Procedure

  1. Disable the SIR system. Refer to ZONE 3 .
  2. Remove the upper and lower trim covers. Refer to Steering Column Trim Covers Replacement .

    Important:  The abrasion sleeve located on the steering column wire harness assembly must be reinstalled. Make note of what connector is coming out of the abrasion sleeve for installation purposes.

  3. Remove the wire harness strap (2) from the steering column and the wire harness assembly (1).

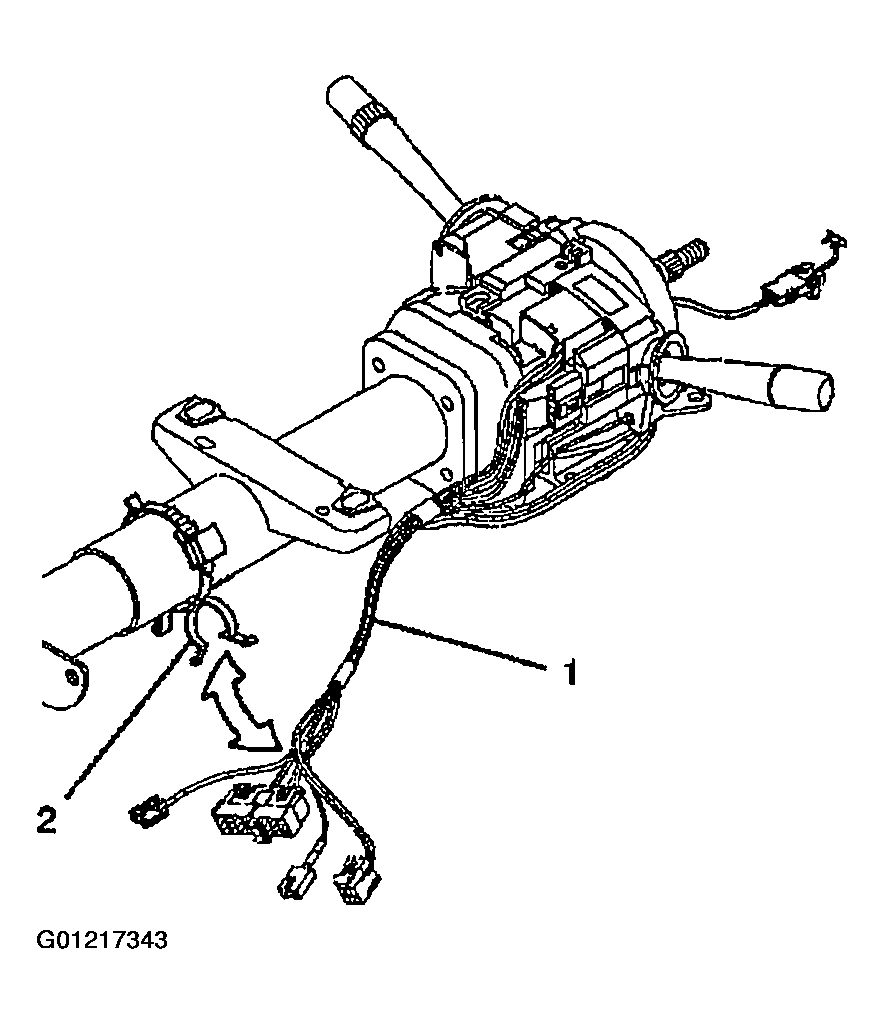

    Fig 1: Removing Wire Harness Strap From Steering Column & Wire Harness Assembly
    G01217343Courtesy of GENERAL MOTORS CORP.
  4. Slide the 2 connectors (2) of the turn signal and multifunction switch assembly out of the bulkhead connector (1).

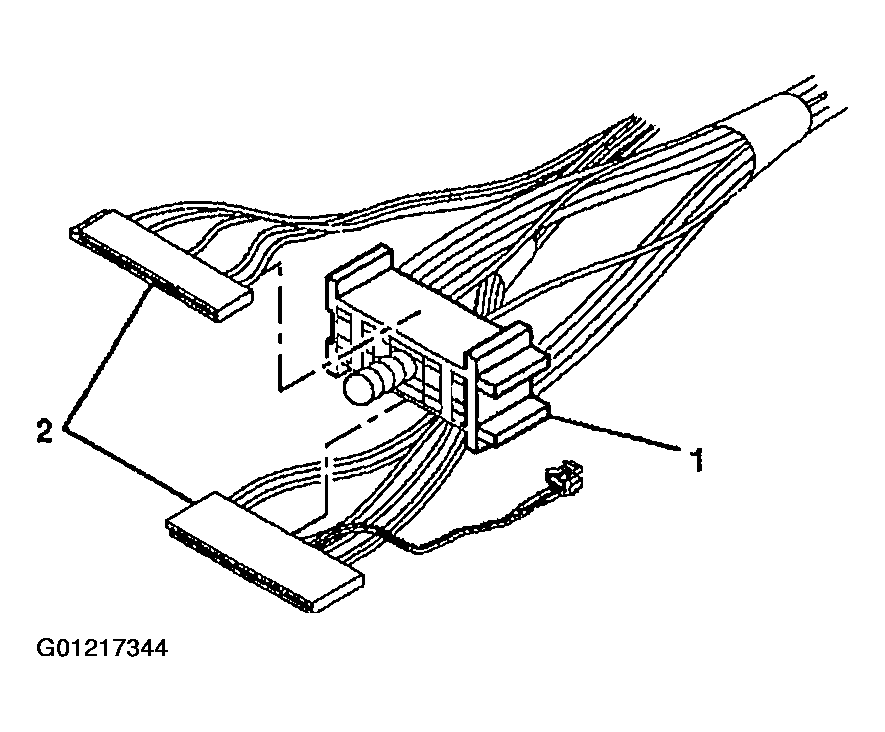

    Fig 2: Sliding Connectors Out Of Bulkhead Connector
    G01217344Courtesy of GENERAL MOTORS CORP.
  5. Rotate the key alarm connector (1) 90 degrees.
  6. Pull the key alarm connector (1) out of the ignition lock cylinder case (2).
  7. Remove the passkey connector from the ignition lock cylinder case (2).

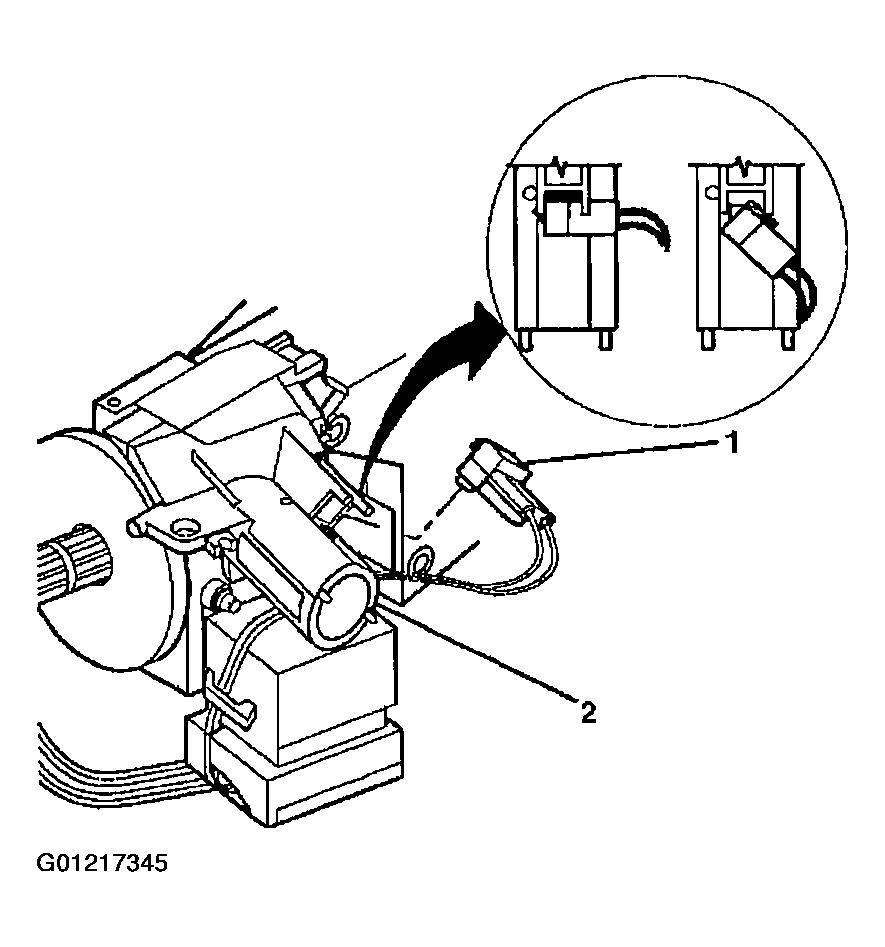

    Fig 3: Pulling Key Alarm Connector Out Of Ignition Lock Cylinder Case
    G01217345Courtesy of GENERAL MOTORS CORP.
  8. Insert J-42759  into the ignition lock cylinder case (1) and slide the ignition switch (2) out.

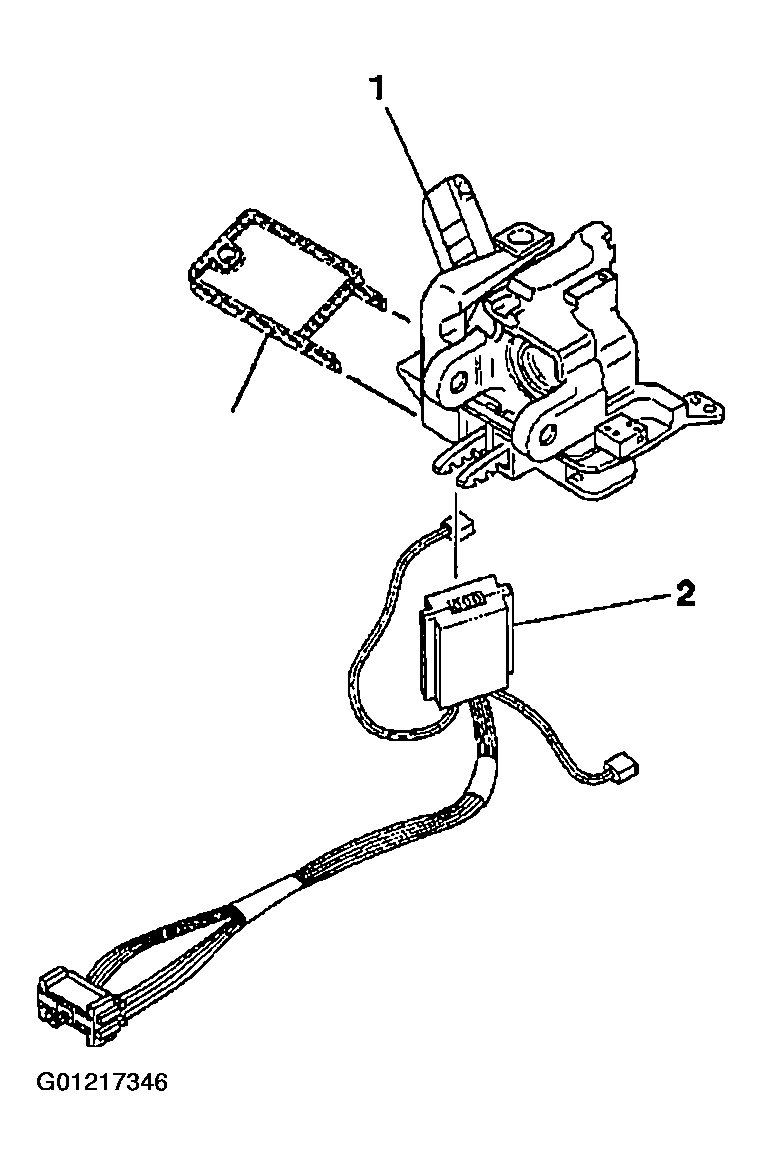

    Fig 4: Inserting J-42759 Into Ignition Lock Cylinder Case
    G01217346Courtesy of GENERAL MOTORS CORP.
