Removal Procedure

  1. Raise and suitable support the vehicle.
  2. Remove the power steering gear. Refer to POWER STEERING GEAR REPLACEMENT (NON-RACK AND PINION) or POWER STEERING GEAR REPLACEMENT (RACK AND PINION) .
  3. Install the power steering gear into a vise.
  4. Remove the pitman arm nut and washer.
    Fig 1: Removing Pitman Arm Nut & Washer
    G01217286Courtesy of GENERAL MOTORS CORP.
  5. Remove the pitman arm from the pitman shaft using J-6632-01  or J-29107-A  .

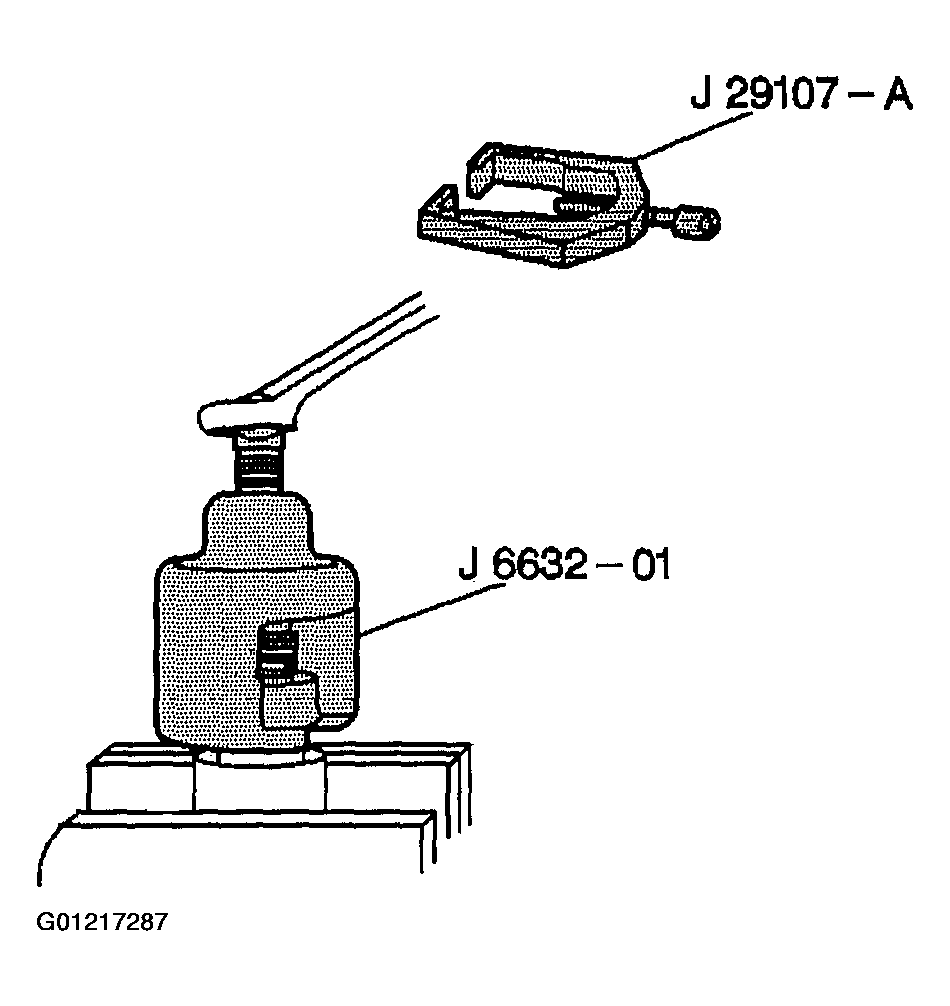

    Fig 2: Removing Pitman Arm Using J-6632-01 Or J-29107-A
    G01217287Courtesy of GENERAL MOTORS CORP.
