Installation Procedure
CAUTION:
The inlet and outlet hoses must not be twisted during installation. Do not bend or distort the inlet or outlet hoses to make installation easier. Failure to follow these procedures could result in component damage.
- Route the hose in the same position the hose occupied prior to removal.CAUTION: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
- Install the power brake booster inlet hose (1) to the power brake booster (2).
Tighten
Tighten the hose fitting to 33 N.m (24 lb ft).
- Raise the vehicle.

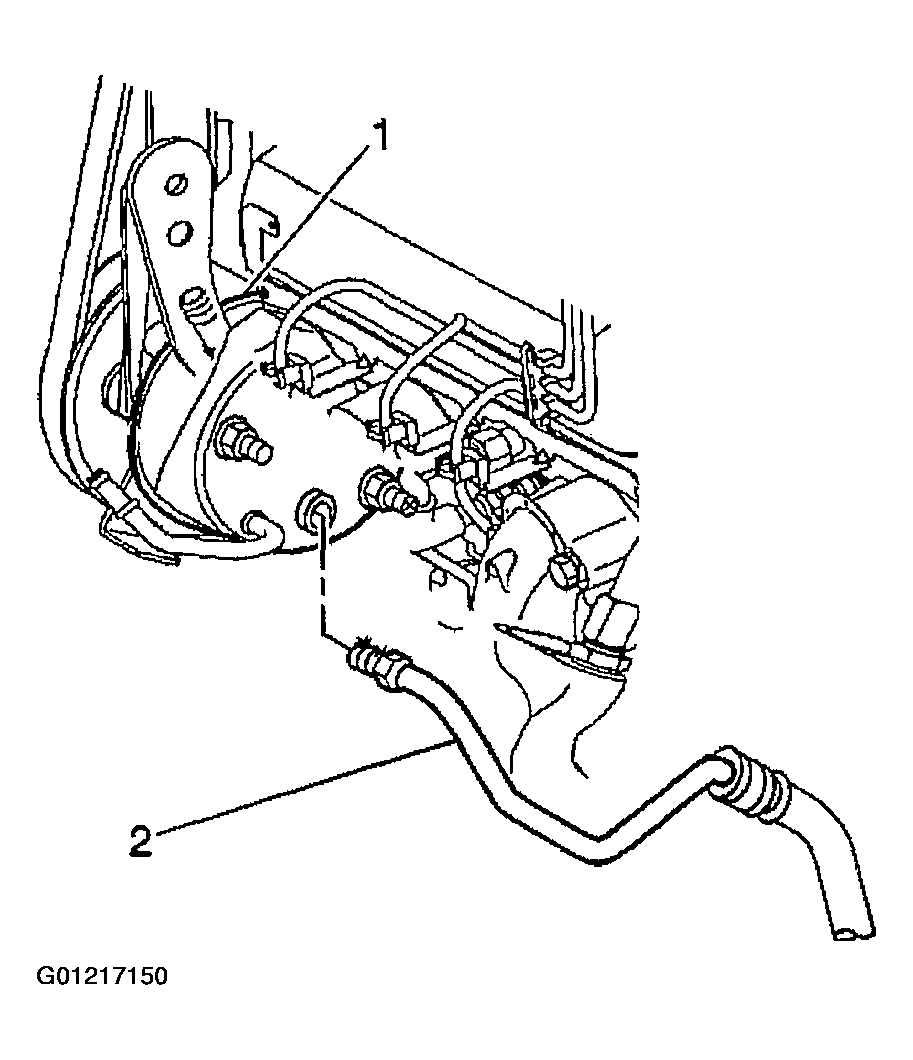

- Install the power brake booster inlet hose (2) to the power steering pump (1) through the wheelwell.
Tighten
Tighten the hose fitting to 33 N.m (24 lb ft).
- Install the tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
- Lower the vehicle.
- Bleed the power steering system. Refer to Bleeding the Power Steering System .
- Remove the drain pan from under the vehicle.
